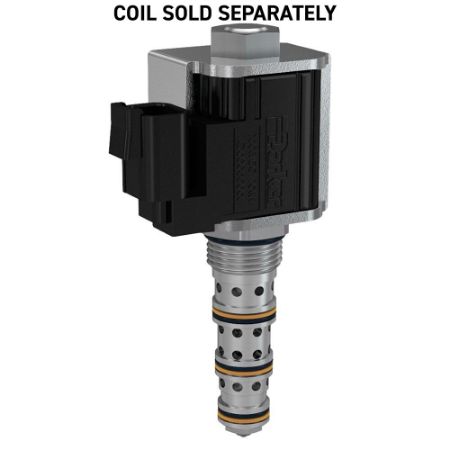

3 Way Flow Control Proportional Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s selection of 3-way flow control proportional valves provide repeatable and precise controls to circuits requiring proportional flow control through 3 lines in a normally-closed configuration. These valves are capable of handling flows up to 75 lpm (20 gpm) and pressures as high as 210 bar (3000 psi). These valves can achieve pseudo pressure due to the pressure drop across the spool orifices, but an external compensator can also be used if finer control is required, making these valves ideal for variable flow sharing applications that need exact control with to ability to close off one leg of the circuit completely. Parker’s 3-way flow control proportional valves can pair with any Current Controlled Pulse Width Modulation (PWM) valve driver and can be used on a variety of mobile and industrial applications within the agriculture, construction, and manufacturing markets.
Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• Non-magnetic spool and housing assembly
• Precise factory setting
Applications:
• Applications requiring precise controls
• Variable flow applications
• Priority flow sharing
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
Read More...Markets:
• Agriculture
• Construction
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• One piece cartridge housing
• Regulates flow proportionally to input solenoid current
• Non-magnetic spool and housing assembly
• Precise factory setting
Applications:
• Applications requiring precise controls
• Variable flow applications
• Priority flow sharing
Additional Technical Insight:
Recommended to be used with a Current Controlled Pulse Width Modulation (PWM) valve driver.
| Action | Part No. | Availability | Partner Available | Price | Maximum Regulated Flow Rate | Configuration | Current | Leak Rate | Installation Torque | Function | Filter Efficiency Rating | Cavity Size | Operating Temperature | Hysteresis | Coil Nut Tightening Torque | Body Material | Operation Type | Connection Type | Maximum Operating Temperature | Override Functionality | Valve Material | Flow Rate | Frequency | Minimum Pressure Differential | Division | Minimum Operating Temperature | Seal Material | Weight | Maximum Kinematic Viscosity | Variation of Opening Point | Actuation Type | Maximum Flow Rate | Flow Direction | Connection Size | Power Consumption | Maximum Inlet Pressure Rating | For Fluid Type | Flow Rate Accuracy | Maximum Operating Pressure | Coil Type | Flow Rate | Seal Material | Actuation Type | Configuration | Division |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DFA125C31SN | Quote Required | TBD | 56.8 | Normally Closed, Pressure Compensated | 2.33 @ 12 VDC, 1.17 @ 24 VDC | 568 @ 3000 PSI (210 BAR) | 55 | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | C12-4L | -30 to +250 | < 15% | 3 | n/a | Solenoid operated, Manually opertated | n/a | +250 | Infinite Control | All parts steel. All operating parts hardened steel | 20 | 100-400 | 200 | Hydraulic Systems Division | -30 | Nitrile | 1 | 45-2000 SSU (6 to 420 cSt) | N/A | Electrical, Manual | 20 | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 28 | 3000 | Mineral-based or synthetic hydraulic fluids | N/A | 3000 | 5/8" Super Coil High Watt (CAP) | 20 GAL/MIN, 75 L/MIN | Nitrile | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| DFA125C31SV | Quote Required | TBD | 56.8 | Normally Closed, Pressure Compensated | 2.33 @ 12 VDC, 1.17 @ 24 VDC | 568 @ 3000 PSI (210 BAR) | 55 | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | C12-4L | -15 to +400 | < 15% | 3 | n/a | Solenoid operated, Manually opertated | n/a | +400 | Infinite Control | All parts steel. All operating parts hardened steel | 20 | 100-400 | 200 | Hydraulic Systems Division | -15 | Fluorocarbon | 1 | 45-2000 SSU (6 to 420 cSt) | N/A | Electrical, Manual | 20 | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 28 | 3000 | Mineral-based or synthetic hydraulic fluids | N/A | 3000 | 5/8" Super Coil High Watt (CAP) | 20 GAL/MIN, 75 L/MIN | Fluorocarbon | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3100N | Quote Required | TBD | 7, 8 Gal/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 30 Nm | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -30 to +250 °F | 7% | 3 lb-ft | n/a | Solenoid Operated | n/a | +121 °C | n/a | All parts steel. All operating parts hardened steel | 60 L/min | 100-400 Hz | 13.8, 20.7 bar | Hydraulic Systems Division | -34 °C | Nitrile | 0.31 lb | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical | 16 Gal/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 210 bar | Mineral-based or synthetic hydraulic fluids | +/- 50% of Input Signal | 3000 psi | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Nitrile | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3100NL | Quote Required | TBD | 26, 30 L/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 22 lb-ft | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -30 to +250 °F | 7% | 4.1 Nm | n/a | Solenoid Operated | n/a | +121 °C | n/a | All parts steel. All operating parts hardened steel | 60 L/min | 100-400 Hz | 13.8, 20.7 bar | Hydraulic Systems Division | -34 °C | Nitrile | 0.14 kg | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical | 60 L/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 210 bar | Mineral-based or synthetic hydraulic fluids | +/- 20% of Input Signal | 210 bar | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Nitrile | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3100V | Quote Required | TBD | 26, 30 L/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 30 Nm | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -26 to +204 °C | 7% | 3 lb-ft | n/a | Solenoid Operated | n/a | +400 °F | n/a | All parts steel. All operating parts hardened steel | 16 Gal/min | 100-400 Hz | 13.8, 20.7 bar | Hydraulic Systems Division | -15 °F | Fluorocarbon | 0.31 lb | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical | 60 L/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 3000 psi | Mineral-based or synthetic hydraulic fluids | +/- 50% of Input Signal | 210 bar | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Fluorocarbon | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3100VL | Quote Required | TBD | 26, 30 L/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 22 lb-ft | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -15 to +400 °F | 7% | 3 lb-ft | n/a | Solenoid Operated | n/a | +204 °C | n/a | All parts steel. All operating parts hardened steel | 16 Gal/min | 100-400 Hz | 13.8, 20.7 bar | Hydraulic Systems Division | -15 °F | Fluorocarbon | 0.31 lb | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical | 16 Gal/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 210 bar | Mineral-based or synthetic hydraulic fluids | +/- 20% of Input Signal | 3000 psi | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Fluorocarbon | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3150N | Quote Required | TBD | 26, 30 L/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 22 lb-ft | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -34 to +121 °C | 7% | 4.1 Nm | n/a | Solenoid operated, Manually opertated | n/a | +250 °F | Infinite Control | All parts steel. All operating parts hardened steel | 16 Gal/min | 100-400 Hz | 200, 300 psi | Hydraulic Systems Division | -30 °F | Nitrile | 0.14 kg | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical, Manual | 16 Gal/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 3000 psi | Mineral-based or synthetic hydraulic fluids | +/- 50% of Input Signal | 3000 psi | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Nitrile | Electrical, Manual | Normally Closed, Pressure Compensated | Hydraulic Cartridge Systems Division | ||
| JP04C3150NL | Quote Required | TBD | 26, 30 L/min | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A | 780 @ 3000 PSI (210 BAR) cm3/min | 22 lb-ft | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -34 to +121 °C | 7% | 4.1 Nm | n/a | Solenoid operated, Manually opertated | n/a | +250 °F | Infinite Control | All parts steel. All operating parts hardened steel | 60 L/min | 100-400 Hz | 200, 300 psi | Hydraulic Systems Division | -34 °C | Nitrile | 0.14 kg | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical, Manual | 60 L/min | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 W | 3000 psi | Mineral-based or synthetic hydraulic fluids | +/- 20% of Input Signal | 210 bar | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Nitrile | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3150V | Quote Required | TBD | 26, 30 | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC | 780 @ 3000 PSI (210 BAR) | 22 | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -15 to +400 | 7% | 3 | n/a | Solenoid operated, Manually opertated | n/a | +400 | Infinite Control | All parts steel. All operating parts hardened steel | 16 | 100-400 | 200, 300 | Hydraulic Systems Division | -15 | Fluorocarbon | 0.31 | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical, Manual | 16 | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 | 3000 | Mineral-based or synthetic hydraulic fluids | +/- 50% of Input Signal | 3000 | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Fluorocarbon | Electrical, Manual | Normally Closed, Pressure Compensated | |||
| JP04C3150VL | Quote Required | TBD | 26, 30 | Normally Closed, Pressure Compensated | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC | 780 @ 3000 PSI (210 BAR) | 22 | Proportional Flow Control/Regulator | ISO 4406 18/16/13, SAE Class 4 | 4C | -15 to +400 | 7% | 3 | n/a | Solenoid operated, Manually opertated | n/a | +400 | Infinite Control | All parts steel. All operating parts hardened steel | 16 | 100-400 | 200, 300 | Hydraulic Systems Division | -15 | Fluorocarbon | 0.31 | 45-2000 SSU (6 to 420 cSt) | 17% Nominal Amperage, 21% Nominal Amperage | Electrical, Manual | 16 | Inlet port 3, Bypass port 2, Regulated port 4 | n/a | 18, 28 | 3000 | Mineral-based or synthetic hydraulic fluids | +/- 20% of Input Signal | 3000 | 5/8" Super Coil | 16 GAL/MIN, 60 L/MIN | Fluorocarbon | Electrical, Manual | Normally Closed, Pressure Compensated |
