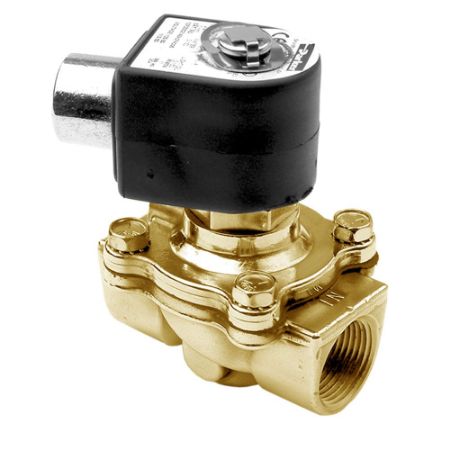

22/23 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port Size | Division | Media | Function | Coil Type | Port Type | Body Material | Input Voltage | Seal Material | Actuation Type | Power Consumption | Maximum Fluid Temperature | Maximum Pressure Differential | Minimum Pressure Differential | Installation | Orifice Size | Insulation Class | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Preventive Maintenance Kit | Maximum Ambient Temperature | Port Size | Coil Type | Body Material | Seal Material | Media | Function | Port Type | Installation | Orifice Size | Input Voltage | Actuation Type | Insulation Class | Power Consumption | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06F22C2140A3F | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 6 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2140A3FR | 77.0 °F | 3/8 | Requires Coil from Chart 6 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | N/A | 2 Way | 3.0 | N/A | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |||
| 06F22C2140A3F4C75 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 12.0 VDC | NBR | Internally Piloted | 11.0 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140A3FR | 77.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 12.0 | Internally Piloted | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |||
| 06F22C2140A3F4C80 | Quote Required | $167.50 | EA | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24.0 VDC | NBR | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140A3FR | 77.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | ||
| 06F22C2140A3FPH80 | Quote Required | 1 Limited Stock | $168.04 | EA | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 24.0 VDC | NBR | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140A3FR | 77.0 °F | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |
| 06F22C2140AAF | Quote Required | $100.80 | EA | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 1 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2140AAFR | 77.0 °F | 3/8 | Requires Coil from Chart 1 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | ||
| 06F22C2140AAF4C01 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24/60 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24/60 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140AAF4C05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 11.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140AAF4C15 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 240/60, 220/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 240/60, 220/50 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140AAFPH05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140AAFPH15 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 240/60, 220/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140AAFR | 77.0 °F | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 240/60, 220/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140AAFSB05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Splice Box w/ 6" Leads | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 1 | 06F22C2140AAFR | 77.0 °F | 3/8 | Splice Box w/ 6" Leads | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 1 | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2140ADF | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 5 | NPT | Brass | Pressure Vessel Only | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2140ADFR | 130.0 °F | 3/8 | Requires Coil from Chart 5 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 16.0 | N/A | 2 Way | 3.0 | N/A | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | |||
| 06F22C2140ADF4C01 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 24/60 VAC | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140ADFR | 130.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24/60 | Internally Piloted | Class F | 16.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | |||
| 06F22C2140ADF4C05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 11.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140ADFR | 130.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | |||
| 06F22C2140ADFPH05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 120/60, 110/50 VAC | NBR | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2140ADFR | 130.0 °F | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 16.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2140ADFR | 130.0 | 300.0 | 5.0 | |||
| 06F22C2240A3F | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 6 | NPT | Brass | Pressure Vessel Only | FKM | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2240A3FR | 77.0 °F | 3/8 | Requires Coil from Chart 6 | BRASS | FKM | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | N/A | 2 Way | 3.0 | N/A | 150.0 | 06F22C2240A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |||
| 06F22C2240A3FPH80 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | DIN 43650A / ISO 4400 | NPT | Brass | 24.0 VDC | FKM | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2240A3FR | 77.0 °F | 3/8 | DIN 43650A / ISO 4400 | BRASS | FKM | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2240A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |||
| 06F22C2240AAF | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 1 | NPT | Brass | Pressure Vessel Only | FKM | Internally Piloted | 6.0 W | 180.0 °F | 135 (200 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C2240AAFR | 77.0 °F | 3/8 | Requires Coil from Chart 1 | BRASS | FKM | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F22C2240AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |||
| 06F22C2240ADF4C05 | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | NPT | Brass | 120/60, 110/50 VAC | FKM | Internally Piloted | 16.0 W | 175.0 °F | 300.0 psi | 5.0 psi | IOM 7321 | 5/8 inch | Class F | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 Cv | NEMA 4,4X | 06F22C2240ADFR | 130.0 °F | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | FKM | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 16.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 175.0 | 06F22C2240ADFR | 130.0 | 300.0 | 5.0 | |||
| 06F22C6140A3F | Quote Required | TBD | 3/8 inch | Fluid Control Division | General Purpose | Normally Closed | Requires Coil from Chart 6 | NPT | 316 Stainless Steel | Pressure Vessel Only | NBR | Internally Piloted | 11.5 W | 150.0 °F | 100 (125 Air, Inert Gas) psi | 5.0 psi | IOM 7321 | 5/8 inch | N/A | N/A | 2 Way | 3.0 Cv | N/A | 06F22C6140A3FR | 77.0 °F | 3/8 | Requires Coil from Chart 6 | 316 Stainless Steel | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | N/A | 2 Way | 3.0 | N/A | 150.0 | 06F22C6140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 |
