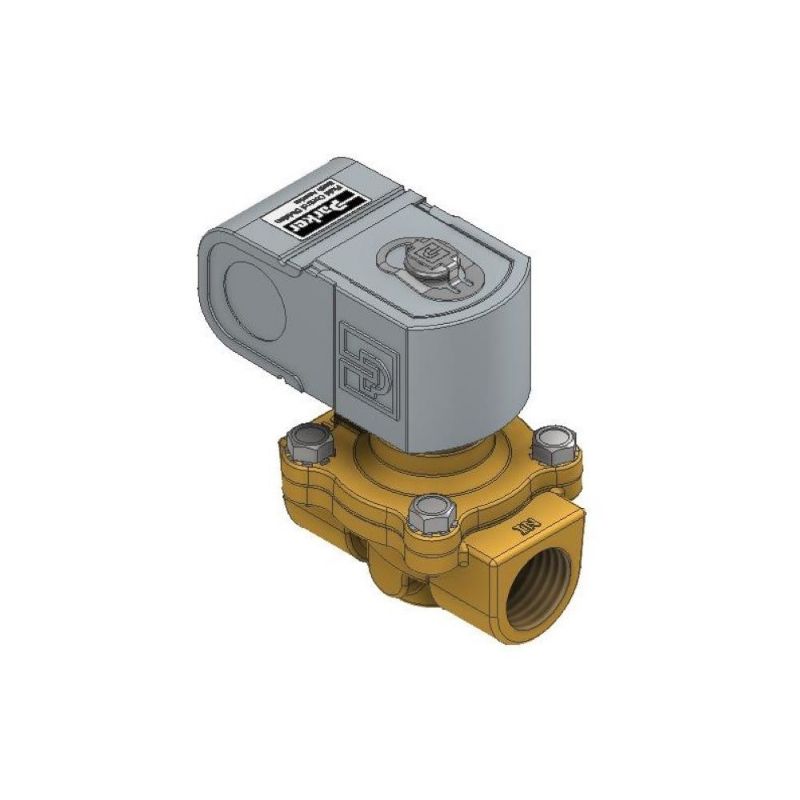

Parker 08F22C2140AAFSB05 - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 08F22C2140AAFSB05

$234.03

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Division	Fluid Control Division	Seal Material	NBR
Media	General Purpose	Function	Normally Closed
Coil Type	Splice Box w/ 6" Leads	Input Voltage	120/60, 110/50 VAC
Actuation Type	Internally Piloted	Power Consumption	6.0 W
Maximum Fluid Temperature	180.0 °F	Maximum Pressure Differential	135 (200 Air, Inert Gas) psi
Minimum Pressure Differential	5.0 psi	Installation	IOM 7321
Orifice Size	5/8 inch	Insulation Class	Class F
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 1	Maximum Ambient Temperature	77.0 °F
Main Flow Coefficient	4.0 Cv	Preventive Maintenance Kit	08F22C2140AAFR
Port Type	NPT	Body Material	BRASS
Seal Material	NBR	Coil Type	Splice Box w/ 6" Leads
Media	General Purpose	Function	Normally Closed
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	120/60, 110/50	Actuation Type	Internally Piloted
Insulation Class	Class F	Power Consumption	6.0
Specifications Met	UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC	Valve Configuration	2 Way
Ingress Protection Rating	NEMA 1	Maximum Fluid Temperature	180.0
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	135 (200 Air, Inert Gas)
Minimum Pressure Differential	5.0	Port Size	1/2
Main Flow Coefficient	4.0	Preventive Maintenance Kit	08F22C2140AAFR
