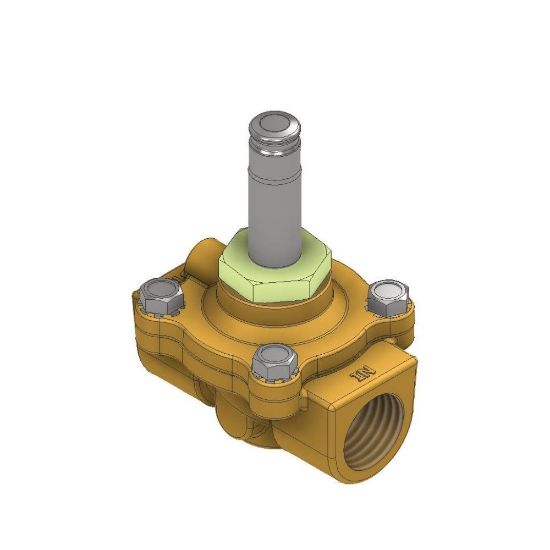

Parker 08F22C2140A3F - 22/23 Series - General Purpose Solenoid Valves

This series is general superseded by G7 Series 22/23 Valves.

Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 08F22C2140A3F

$151.68

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Division	Fluid Control Division	Seal Material	NBR
Media	General Purpose	Function	Normally Closed
Coil Type	Requires Coil from Chart 6	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Power Consumption	11.5 W
Maximum Fluid Temperature	150.0 °F	Maximum Pressure Differential	100 (125 Air, Inert Gas) psi
Minimum Pressure Differential	5.0 psi	Installation	IOM 7321
Orifice Size	5/8 inch	Insulation Class	N/A
Specifications Met	N/A	Valve Configuration	2 Way
Ingress Protection Rating	N/A	Maximum Ambient Temperature	77.0 °F
Main Flow Coefficient	4.0 Cv	Preventive Maintenance Kit	08F22C2140A3FR
Port Type	NPT	Body Material	BRASS
Seal Material	NBR	Coil Type	Requires Coil from Chart 6
Media	General Purpose	Function	Normally Closed
Installation	IOM 7321	Orifice Size	5/8
Input Voltage	Pressure Vessel Only	Actuation Type	Internally Piloted
Insulation Class	N/A	Power Consumption	11.5
Specifications Met	N/A	Valve Configuration	2 Way
Ingress Protection Rating	N/A	Maximum Fluid Temperature	150.0
Maximum Ambient Temperature	77.0	Maximum Pressure Differential	100 (125 Air, Inert Gas)
Minimum Pressure Differential	5.0	Port Size	1/2
Main Flow Coefficient	4.0	Preventive Maintenance Kit	08F22C2140A3FR

Product resources

Literature and Reference Materials

Tube Seal (PDF)
