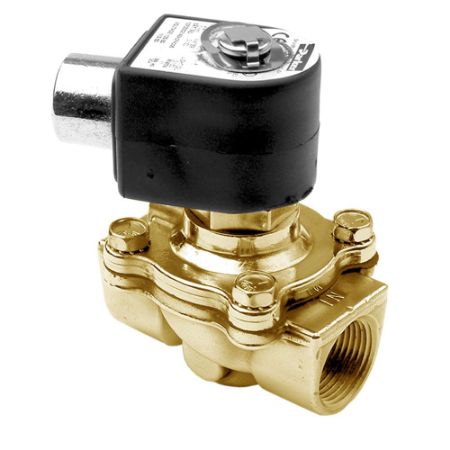

22/23 Series - General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Gold Ring legacy product has a rich history in industrial and commerical applications.
Read More...| Action | Part No. | Availability | Partner Available | Price | Port Size | Ingress Protection Rating | Media | Maximum Ambient Temperature | Insulation Class | Division | Coil Type | Valve Configuration | Minimum Pressure Differential | Input Voltage | Body Material | Main Flow Coefficient | Seal Material | Power Consumption | Actuation Type | Installation | Specifications Met | Maximum Pressure Differential | Maximum Fluid Temperature | Port Type | Orifice Size | Function | Preventive Maintenance Kit | Port Size | Coil Type | Body Material | Seal Material | Media | Function | Port Type | Installation | Orifice Size | Input Voltage | Actuation Type | Insulation Class | Power Consumption | Specifications Met | Valve Configuration | Main Flow Coefficient | Ingress Protection Rating | Maximum Fluid Temperature | Preventive Maintenance Kit | Maximum Ambient Temperature | Maximum Pressure Differential | Minimum Pressure Differential |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 06F22C2140A3F4C80 | Quote Required | $174.79/each | 3/8 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 5.0 psi | 24.0 VDC | Brass | 3.0 Cv | NBR | 11.5 W | Internally Piloted | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 100 (125 Air, Inert Gas) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 06F22C2140A3FR | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | ||
| 06F22C2140A3FPH80 | Quote Required | $175.34/each | 3/8 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | DIN 43650A / ISO 4400 | 2 Way | 5.0 psi | 24.0 VDC | Brass | 3.0 Cv | NBR | 11.5 W | Internally Piloted | IOM 7321 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 100 (125 Air, Inert Gas) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 06F22C2140A3FR | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | ||
| 06F22C2140AAF | Quote Required | $105.87/each | 3/8 inch | N/A | General Purpose | 77.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 1 | 2 Way | 5.0 psi | Pressure Vessel Only | Brass | 3.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | N/A | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 06F22C2140AAFR | 3/8 | Requires Coil from Chart 1 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | ||
| 06F23C2140ACF | Quote Required | 2 Limited Stock | $125.25/each | 3/8 inch | N/A | General Purpose | 130.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 4 | 2 Way | 0.0 psi | Pressure Vessel Only | Brass | 3.0 Cv | NBR | 11.0 W | Direct Lift | IOM 7321 | N/A | 150.0 psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 06F23C2140ACFR | 3/8 | Requires Coil from Chart 4 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Direct Lift | N/A | 11.0 | N/A | 2 Way | 3.0 | N/A | 180.0 | 06F23C2140ACFR | 130.0 | 150.0 | 0.0 | |
| 06F23C2140ACF4C05 | Quote Required | $190.44/each | 3/8 inch | NEMA 4,4X | General Purpose | 130.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 0.0 psi | 120/60, 110/50 VAC | Brass | 3.0 Cv | NBR | 11.0 W | Direct Lift | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 06F23C2140ACFR | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F23C2140ACFR | 130.0 | 150.0 | 0.0 | ||
| 06F23C2140ACFPH05 | Quote Required | $191.05/each | 3/8 inch | NEMA 4,4X | General Purpose | 130.0 °F | Class F | Fluid Control Division | DIN 43650A / ISO 4400 | 2 Way | 0.0 psi | 120/60, 110/50 VAC | Brass | 3.0 Cv | NBR | 11.0 W | Direct Lift | IOM 7321 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 06F23C2140ACFR | 3/8 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F23C2140ACFR | 130.0 | 150.0 | 0.0 | ||
| 06F23C6140A3F4C80 | 1 Limited Stock | Quote Required | $591.74/each | 3/8 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 0.0 psi | 24.0 VDC | 316 Stainless Steel | 3.0 Cv | NBR | 11.5 W | Direct Lift | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 40 (N/A Light Oil) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 06F23C6140A3FR | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 316 Stainless Steel | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Direct Lift | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 150.0 | 06F23C6140A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | |
| 06F23C6140ACF4C05 | Quote Required | $589.76/each | 3/8 inch | NEMA 4,4X | General Purpose | 130.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 0.0 psi | 120/60, 110/50 VAC | 316 Stainless Steel | 3.0 Cv | NBR | 11.0 W | Direct Lift | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 150.0 psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 06F23C6140ACFR | 3/8 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 316 Stainless Steel | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Direct Lift | Class F | 11.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 3.0 | NEMA 4,4X | 180.0 | 06F23C6140ACFR | 130.0 | 150.0 | 0.0 | ||
| 06F23O2140ACF | Quote Required | $325.40/each | 3/8 inch | N/A | General Purpose | 130.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 4 | 2 Way | 0.0 psi | Pressure Vessel Only | Brass | 3.0 Cv | NBR | 11.0 W | Direct Lift | IOM 7321 | N/A | 150.0 psi | 150.0 °F | NPT | 5/8 inch | Normally Open | 06F23O2140ACFR | 3/8 | Requires Coil from Chart 4 | BRASS | NBR | General Purpose | Normally Open | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Direct Lift | N/A | 11.0 | N/A | 2 Way | 3.0 | N/A | 150.0 | 06F23O2140ACFR | 130.0 | 150.0 | 0.0 | ||
| 08F22C2140A3F | Quote Required | 1 Limited Stock | $157.46/each | 1/2 inch | N/A | General Purpose | 77.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 6 | 2 Way | 5.0 psi | Pressure Vessel Only | Brass | 4.0 Cv | NBR | 11.5 W | Internally Piloted | IOM 7321 | N/A | 100 (125 Air, Inert Gas) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140A3FR | 1/2 | Requires Coil from Chart 6 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 11.5 | N/A | 2 Way | 4.0 | N/A | 150.0 | 08F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |
| 08F22C2140A3F4C80 | Quote Required | 2 Limited Stock | $225.78/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 5.0 psi | 24.0 VDC | Brass | 4.0 Cv | NBR | 11.5 W | Internally Piloted | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 100 (125 Air, Inert Gas) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140A3FR | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |
| 08F22C2140A3FPH80 | Quote Required | 11 In Stock | $226.48/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | DIN 43650A / ISO 4400 | 2 Way | 5.0 psi | 24.0 VDC | Brass | 4.0 Cv | NBR | 11.5 W | Internally Piloted | IOM 7321 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 100 (125 Air, Inert Gas) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140A3FR | 1/2 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Internally Piloted | Class F | 11.5 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F22C2140A3FR | 77.0 | 100 (125 Air, Inert Gas) | 5.0 | |
| 08F22C2140AAF | Quote Required | 8 In Stock | $155.48/each | 1/2 inch | N/A | General Purpose | 77.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 1 | 2 Way | 5.0 psi | Pressure Vessel Only | Brass | 4.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | N/A | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140AAFR | 1/2 | Requires Coil from Chart 1 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 6.0 | N/A | 2 Way | 4.0 | N/A | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |
| 08F22C2140AAF4C01 | Quote Required | $221.02/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 5.0 psi | 24/60 VAC | Brass | 4.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140AAFR | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24/60 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | ||
| 08F22C2140AAF4C05 | Quote Required | 6 In Stock | $221.12/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 5.0 psi | 120/60, 110/50 VAC | Brass | 4.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140AAFR | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | |
| 08F22C2140AAFPH05 | Quote Required | $223.13/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | DIN 43650A / ISO 4400 | 2 Way | 5.0 psi | 120/60, 110/50 VAC | Brass | 4.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140AAFR | 1/2 | DIN 43650A / ISO 4400 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | ||
| 08F22C2140AAFSB05 | Quote Required | $242.28/each | 1/2 inch | NEMA 1 | General Purpose | 77.0 °F | Class F | Fluid Control Division | Splice Box w/ 6" Leads | 2 Way | 5.0 psi | 120/60, 110/50 VAC | Brass | 4.0 Cv | NBR | 6.0 W | Internally Piloted | IOM 7321 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 135 (200 Air, Inert Gas) psi | 180.0 °F | NPT | 5/8 inch | Normally Closed | 08F22C2140AAFR | 1/2 | Splice Box w/ 6" Leads | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 120/60, 110/50 | Internally Piloted | Class F | 6.0 | UL, CSA Recognized Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 1 | 180.0 | 08F22C2140AAFR | 77.0 | 135 (200 Air, Inert Gas) | 5.0 | ||
| 08F23C2140A3F | Quote Required | $172.81/each | 1/2 inch | N/A | General Purpose | 77.0 °F | N/A | Fluid Control Division | Requires Coil from Chart 6 | 2 Way | 0.0 psi | Pressure Vessel Only | Brass | 4.0 Cv | NBR | 11.5 W | Direct Lift | IOM 7321 | N/A | 40 (N/A Light Oil) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F23C2140A3FR | 1/2 | Requires Coil from Chart 6 | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | Pressure Vessel Only | Direct Lift | N/A | 11.5 | N/A | 2 Way | 4.0 | N/A | 150.0 | 08F23C2140A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | ||
| 08F23C2140A3F4C75 | 9 In Stock | Quote Required | $241.49/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 0.0 psi | 12.0 VDC | Brass | 4.0 Cv | NBR | 11.5 W | Direct Lift | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 40 (N/A Light Oil) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F23C2140A3FR | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 12.0 | Direct Lift | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23C2140A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 | |
| 08F23C2140A3F4C80 | Quote Required | $241.53/each | 1/2 inch | NEMA 4,4X | General Purpose | 77.0 °F | Class F | Fluid Control Division | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | 2 Way | 0.0 psi | 24.0 VDC | Brass | 4.0 Cv | NBR | 11.5 W | Direct Lift | IOM 7321 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 40 (N/A Light Oil) psi | 150.0 °F | NPT | 5/8 inch | Normally Closed | 08F23C2140A3FR | 1/2 | 1/2" NPT Conduit w/ Leads (Incl. Ground Lead) | BRASS | NBR | General Purpose | Normally Closed | NPT | IOM 7321 | 5/8 | 24.0 | Direct Lift | Class F | 11.5 | UL, CSA Listed Safety Shutoff Valve; CE - Low Voltage, EMC | 2 Way | 4.0 | NEMA 4,4X | 150.0 | 08F23C2140A3FR | 77.0 | 40 (N/A Light Oil) | 0.0 |
