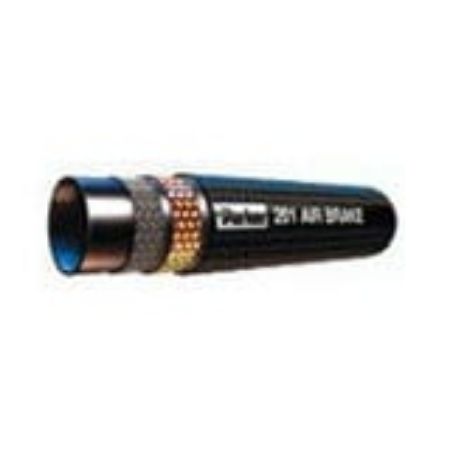

Transportation Hose 200-3000 PSI - 201 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 201 hose is a transportation hose that has a pressure range of 200-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications. The braided fiber cover provides additional protection. The 201 hose is designed, built, and tested to meet SAE J517 100R5 / SAE J1402 AII / DOT FMVSS 106 AIR BRAKE - AII performance specifications. Sizes range from 3/16” to 3” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 200-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• D.O.T. FMVSS 106-AIR BRAKE-AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings (for -4 to -40)
• 20 series fittings (for -4 to -48)
• 22 series fittings (for -4 to -48)
Read More...Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 200-3000 PSI in different sizes
• Field attachable or Parkrimp fittings to fit your specific needs
• D.O.T. FMVSS 106-AIR BRAKE-AII certification
Applications:
• Petroleum base hydraulic fluids and lubricating oils
• Diesel fuels and antifreeze solutions
Compatible Fittings:
• 26 series fittings (for -4 to -40)
• 20 series fittings (for -4 to -48)
• 22 series fittings (for -4 to -48)
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Temperature | Minimum Operating Temperature | Minimum Bend Radius | Media | Inside Diameter | Hose Inner Tube Material | Nominal Hose Inside Diameter | Specifications Met | Application | Maximum Operating Pressure | Weight | Compatible Fitting | Hose Cover Type | Outside Diameter | Hose Reinforcement Material | Hose I.D. (size) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 201-10 | Quote Required | 3649 In Stock | $15.51 | FT | Hose Products Division | 150 °C | -40 °F | 140 mm | Lubricants (Oils) | 12.5 mm | Synthetic Rubber | 12 mm | SAE J517 and 100R5 | Diesel Fuels | 1750 psi | 0.37 lb/ft | 26 Series | Fiber Cover | 0.920 inch | 1 Braid of Fiber and 1 Braid of Steel Wire | -10 | |
| 201-12 | Quote Required | TBD | Hose Products Division | 150 °C | -40 °C | 6-1/2 inch | Petroleum Hydraulic Fluids (Petroleum Base) | 5/8 inch | Synthetic Rubber | 16 mm | D.O.T. FMVSS 106, Class AII Air Brake | Antifreeze Solutions | 1500 psi | 0.60 kg/m | 26 Series | Fiber Cover | 1.080 inch | 1 Braid of Fiber and 1 Braid of Steel Wire | -12 | |||
| 201-16 | Quote Required | TBD | Hose Products Division | 302 °F | -40 °F | 7-3/8 inch | Petroleum Hydraulic Fluids (Petroleum Base) | 7/8 inch | Synthetic Rubber | 22 mm | SAE J1402, Class AII | Diesel Fuels | 5.6 MPa | 0.46 lb/ft | 22 Series | Fiber Cover | 31 mm | 1 Braid of Fiber | -16 | |||
| 201-20 | 290 In Stock | 1937 In Stock | $28.19 | FT | Hose Products Division | 150 °C | -40 °C | 9 inch | Fuels (Diesel Fuels & Antifreeze Solutions) | 29 mm | Synthetic Rubber | 29 mm | D.O.T. FMVSS 106, Class AII Air Brake | Petroleum Base Hydraulic Fluids | 4.3 MPa | 0.76 kg/m | 20 Series | Fiber Cover | 1.5 inch | 1 Braid of Fiber and 1 Braid of Steel Wire | -20 | |
| 201-24 | 488 In Stock | 766 In Stock | $38.60 | FT | Hose Products Division | 302 °F | -40 °F | 10-1/2 inch | Fuels (Diesel Fuels & Antifreeze Solutions) | 1-3/8 inch | Synthetic Rubber | 35 mm | D.O.T. FMVSS 106, Class AII Air Brake | Lubricating Oils | 500 psi | 0.68 lb/ft | 26 Series | Fiber Cover | 44 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | -24 | |
| 201-32 | 192 In Stock | 1752 In Stock | $53.37 | FT | Hose Products Division | 302 °F | -40 °C | 13-1/4 inch | Lubricants (Oils) | 1-13/16 inch | Synthetic Rubber | 46 mm | SAE J517 and 100R5 | Antifreeze Solutions | 2.4 MPa | 1.32 kg/m | 22 Series | Fiber Cover | 2.220 inch | 1 Braid of Fiber | -32 | |
| 201-4 | Quote Required | TBD | Hose Products Division | 302 °F | -40 °F | 75 mm | Lubricants (Oils) | 5 mm | Synthetic Rubber | 5 mm | SAE J517 and 100R5 | Lubricating Oils | 21 MPa | 0.15 lb/ft | 22 Series | Fiber Cover | 13 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | -4 | |||
| 201-40 | Quote Required | $89.29 | FT | Hose Products Division | 302 °F | -40 °F | 24 inch | Lubricants (Oils) | 2-3/8 inch | Synthetic Rubber | 60 mm | SAE J1402, Class AII | Diesel Fuels | 2.4 MPa | 1.95 kg/m | 22 Series | Fiber Cover | 2.880 inch | 1 Braid of Fiber | -40 | ||
| 201-48 | Quote Required | TBD | Hose Products Division | 150 °C | -40 °C | 33 inch | Petroleum Hydraulic Fluids (Petroleum Base) | 3 inch | Synthetic Rubber | 76 mm | SAE J1402, Class AII | Antifreeze Solutions | 1.4 MPa | 3.11 kg/m | 20 Series | Fiber Cover | 90.0 mm | 1 Braid of Fiber | -48 | |||
| 201-5 | Quote Required | 736 In Stock | $10.01 | FT | Hose Products Division | 150 °C | -40 °F | 3-3/8 inch | Petroleum Hydraulic Fluids (Petroleum Base) | 1/4 inch | Synthetic Rubber | 6 mm | SAE J517 and 100R5 | Lubricating Oils | 3000 psi | 0.18 lb/ft | 20 Series | Fiber Cover | 15 mm | 1 Braid of Fiber and 1 Braid of Steel Wire | -5 | |
| 201-6 | Quote Required | TBD | Hose Products Division | 150 °C | -40 °C | 100 mm | Lubricants (Oils) | 5/16 inch | Synthetic Rubber | 8 mm | D.O.T. FMVSS 106, Class AII Air Brake | Lubricating Oils | 15.7 MPa | 0.34 kg/m | 20 Series | Fiber Cover | 17 mm | 1 Braid of Fiber | -6 | |||
| 201-8 | Quote Required | TBD | Hose Products Division | 302 °F | -40 °C | 115 mm | Fuels (Diesel Fuels & Antifreeze Solutions) | 13/32 inch | Synthetic Rubber | 10 mm | D.O.T. FMVSS 106, Class AII Air Brake | Antifreeze Solutions | 2000 psi | 0.40 kg/m | 26 Series | Fiber Cover | 0.770 inch | 1 Braid of Fiber and 1 Braid of Steel Wire | -8 |
