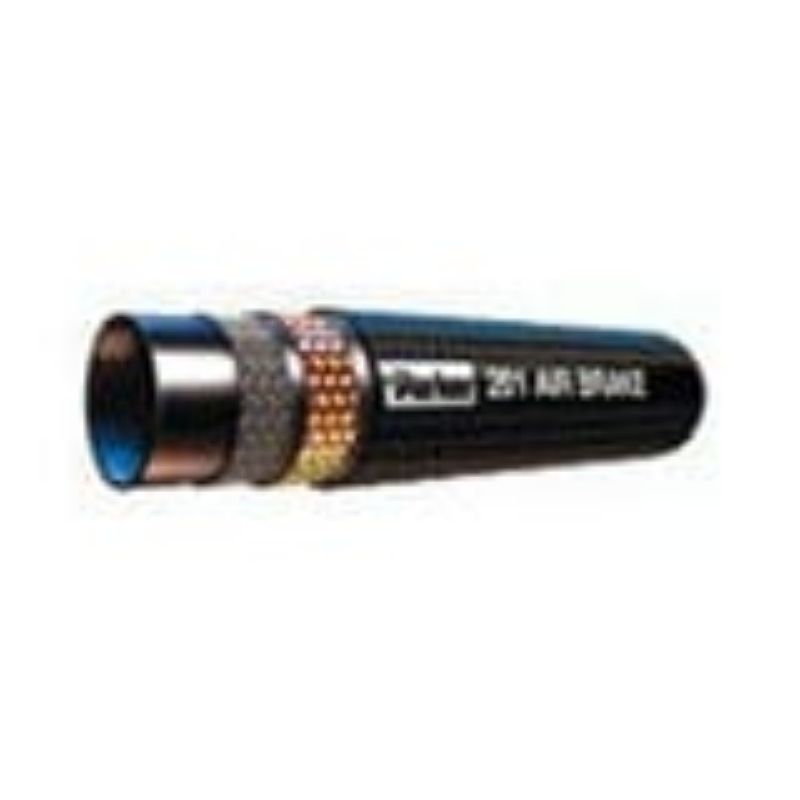

Parker 201-5 - Transportation Hose 200-3000 PSI - 201 Hose

Parker’s 201 hose is a transportation hose that has a pressure range of 200-3000 PSI and is reinforced with one steel braid and one fiber braid making it excellent for rugged transportation applications.

Availability:	Quote Required
Partner Available:	736 In Stock

Brand Parker

Part No. 201-5

$10.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Maximum Operating Temperature	150 °C	Minimum Operating Temperature	-40 °F
Maximum Operating Pressure	3000 psi	Inside Diameter	1/4 inch
Weight	0.18 lb/ft	Media	Petroleum Hydraulic Fluids (Petroleum Base)
Hose Inner Tube Material	Synthetic Rubber	Specifications Met	SAE J517 and 100R5
Application	Lubricating Oils	Compatible Fitting	20 Series
Minimum Bend Radius	3-3/8 inch	Hose Cover Type	Fiber Cover
Outside Diameter	15 mm	Hose Reinforcement Material	1 Braid of Fiber and 1 Braid of Steel Wire
Nominal Hose Inside Diameter	6 mm	Hose I.D. (size)	-5

Product resources

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English) (PDF)
