TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

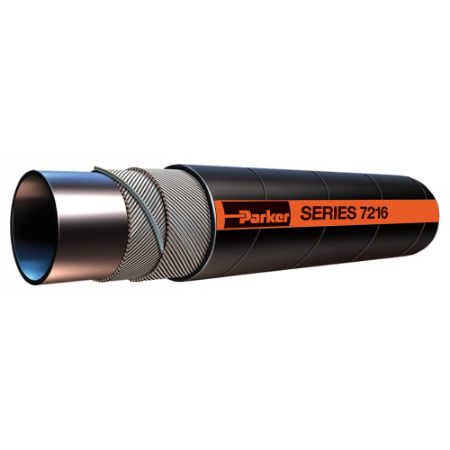

Picture for category TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker's Translite Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance. Translite is the tried-and-true workhorse of petroleum transport suction hoses.

Markets:
• General Industrial
• Oil & Gas
• Transportation

Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile or red chloroprene for abrasion, heat, oil resistance and durability.

Applications:
• Biodiesel (to B20 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks

Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
Read More...
View as Grid List
Sort by
Display per page
ActionPart No.AvailabilityPartner AvailablePriceUOMMinimum Bend RadiusSpecifications MetHose Reinforcement MaterialNominal Hose Inside DiameterCover MaterialApplicationMinimum Operating TemperatureOutside DiameterVacuum Pressure RatingInside DiameterWeightMaximum Operating PressureMaximum Operating TemperatureSizeDivisionDesign FactorHose Inner Tube MaterialMediaColorHose I.D. (inch)
7216-1502
Quote Required
179 In Stock
$11.87/foot
FT4 inchn/aMultiple Plies of Textile with Wire Helix40 mmNitrilePetroleum Transfer-40 °F1.990 inch737 mm-Hg1-1/2 inch1.24 kg/m10.3 bar82 °C-24Hose Products Division4:1NitrileLubricants (Oils)Black1-1/2
7216-2002
105 In Stock
129 In Stock
$22.10/foot
FT6 inchn/aMultiple Plies of Textile with Wire Helix50 mmNitrilePetroleum Transfer-40 °C64 mm737 mm-Hg2 inch1.7 kg/m1 MPa180 °F-32Hose Products Division4:1BlackFuels (Biodiesel to B20 in dedicated service)Black2
7216-2502
Quote Required
$18.26/foot
FT9 inchn/aMultiple Plies of Textile with Wire Helix65 mmNitrilePetroleum Transfer-40 °C3.030 inch29 Inch-Hg63.5 mm1.43 lb/ft1 MPa82 °C-40Hose Products Division4:1BlackFuels (Gasoline) - Check fuel type with our catalogue chart.Black2-1/2
7216-3002
Quote Required
352 In Stock
$19.34/foot
FT305 mmn/aMultiple Plies of Textile with Wire Helix80 mmNitrilePetroleum Transfer-40 °F3.540 inch29 Inch-Hg3 inch2.73 kg/m10.3 bar82 °C-48Hose Products Division4:1BlackLubricants (Oils)Black3
7216-4002
Quote Required
502 In Stock
$43.39/foot
FT16 inchn/aMultiple Plies of Textile with Wire Helix100 mmNitrilePetroleum Transfer-40 °F118.3 mm737 mm-Hg4 inch4.43 kg/m10.3 bar82 °C-64Hose Products Division4:1NitrileFuels (Biodiesel to B20 in dedicated service)Black4
