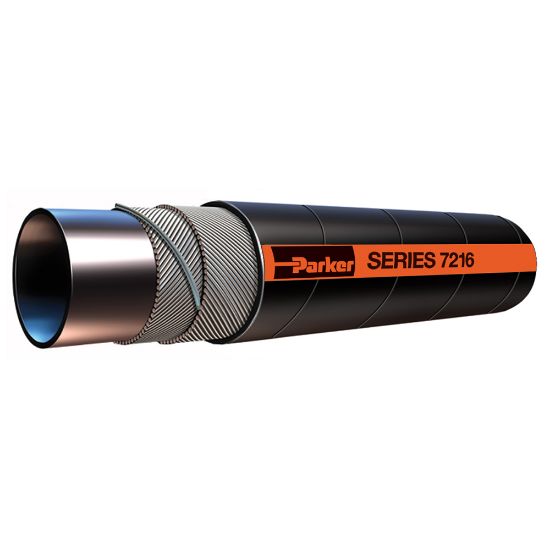

Parker 7216-2002 - TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE

Name: Parker 7216-2002 - TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE
SKU: 7216-2002
Price: 22.10 USD
Availability: InStock

Translite Petroleum Transport Suction Hose is designed for delivery, transfer and transport of oil and refined fuels in applications to 200°F and 150 psi.

AFP Availability:

105 In Stock

Sumter, SC

105

Partner Available:

154 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 7216-2002

$22.10/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Maximum Operating Temperature	180 °F	Vacuum Pressure Rating	737 mm-Hg
Inside Diameter	2 inch	Design Factor	4:1
Hose Inner Tube Material	Black	Size	-32
Media	Fuels (Biodiesel to B20 in dedicated service)	Specifications Met	n/a
Minimum Bend Radius	6 inch	Nominal Hose Inside Diameter	50 mm
Cover Material	Nitrile	Minimum Operating Temperature	-40 °C
Application	Petroleum Transfer	Maximum Operating Pressure	1 MPa
Outside Diameter	64 mm	Hose Reinforcement Material	Multiple Plies of Textile with Wire Helix
Weight	1.7 kg/m	Color	Black
Hose I.D. (inch)	2
