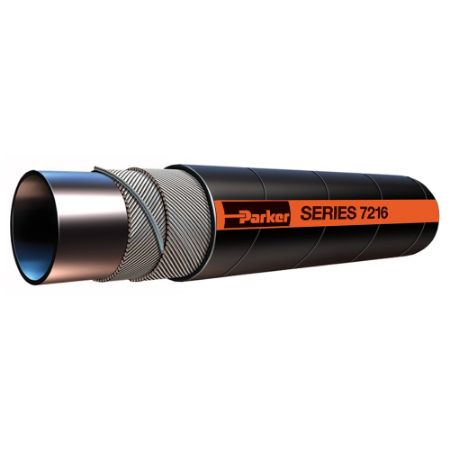

TRANSLITE® PETROLEUM TRANSPORT SUCTION HOSE
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Translite Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance. Translite is the tried-and-true workhorse of petroleum transport suction hoses.
Markets:
• General Industrial
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile or red chloroprene for abrasion, heat, oil resistance and durability.
Applications:
• Biodiesel (to B20 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
Read More...Markets:
• General Industrial
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black nitrile or red chloroprene for abrasion, heat, oil resistance and durability.
Applications:
• Biodiesel (to B20 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Minimum Operating Temperature | Design Factor | Specifications Met | Maximum Operating Pressure | Inside Diameter | Minimum Bend Radius | Hose Inner Tube Material | Size | Nominal Hose Inside Diameter | Media | Weight | Maximum Operating Temperature | Application | Cover Material | Outside Diameter | Hose Reinforcement Material | Vacuum Pressure Rating | Color | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7216-1002 | Quote Required | 31 In Stock | TBD | FT | Hose Products Division | -40 °F | 4:1 | N/A | 150 psi | 1 inch | 51 mm | Black | -16 | 25 mm | Fuels (Diesel) - Check fuel type with our catalogue chart. | 0.42 lb/ft | 82 °C | Petroleum Transfer | Nitrile | 34.6 mm | Multiple Plies of Textile with Wire Helix | 737 mm-Hg | Black | 1 | |
| 7216-1252 | Quote Required | 277 In Stock | TBD | EA | Hose Products Division | -40 °C | 4:1 | N/A | 1 MPa | 1-1/4 inch | 76 mm | Nitrile | -20 | 32 mm | Lubricants (Oils) | 0.59 lb/ft | 180 °F | Petroleum Transfer | Nitrile | 1.670 inch | Multiple Plies of Textile with Wire Helix | 737 mm-Hg | Black | 1-1/4 | |
| 7216-1502 | Quote Required | 209 In Stock | $11.87/foot | FT | Hose Products Division | -40 °F | 4:1 | N/A | 10.3 bar | 1-1/2 inch | 4 inch | Nitrile | -24 | 40 mm | Lubricants (Oils) | 1.24 kg/m | 82 °C | Petroleum Transfer | Nitrile | 1.990 inch | Multiple Plies of Textile with Wire Helix | 737 mm-Hg | Black | 1-1/2 | |
| 7216-2002 | 105 In Stock | 154 In Stock | $22.10/foot | FT | Hose Products Division | -40 °C | 4:1 | N/A | 1 MPa | 2 inch | 6 inch | Black | -32 | 50 mm | Fuels (Biodiesel to B20 in dedicated service) | 1.7 kg/m | 180 °F | Petroleum Transfer | Nitrile | 64 mm | Multiple Plies of Textile with Wire Helix | 737 mm-Hg | Black | 2 | |
| 7216-2502 | Quote Required | $18.26/foot | FT | Hose Products Division | -40 °C | 4:1 | N/A | 1 MPa | 63.5 mm | 9 inch | Black | -40 | 65 mm | Fuels (Gasoline) - Check fuel type with our catalogue chart. | 1.43 lb/ft | 82 °C | Petroleum Transfer | Nitrile | 3.030 inch | Multiple Plies of Textile with Wire Helix | 29 Inch-Hg | Black | 2-1/2 | ||
| 7216-3002 | Quote Required | 376 In Stock | $19.34/foot | FT | Hose Products Division | -40 °F | 4:1 | N/A | 10.3 bar | 3 inch | 305 mm | Black | -48 | 80 mm | Lubricants (Oils) | 2.73 kg/m | 82 °C | Petroleum Transfer | Nitrile | 3.540 inch | Multiple Plies of Textile with Wire Helix | 29 Inch-Hg | Black | 3 | |
| 7216-4002 | Quote Required | 502 In Stock | $43.39/foot | FT | Hose Products Division | -40 °F | 4:1 | N/A | 10.3 bar | 4 inch | 16 inch | Nitrile | -64 | 100 mm | Fuels (Biodiesel to B20 in dedicated service) | 4.43 kg/m | 82 °C | Petroleum Transfer | Nitrile | 118.3 mm | Multiple Plies of Textile with Wire Helix | 737 mm-Hg | Black | 4 |
