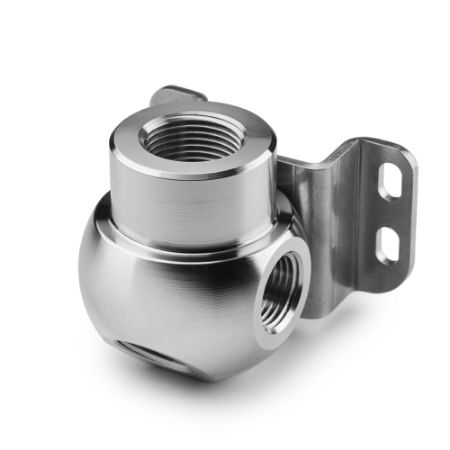

Transair® Wall Brackets for Stainless Steel Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
| Transair wall brackets for stainless steel pipe make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air, industrial/inert gas, process water, and chemical transfer applications. Parker offers a one (1), two (2), or three (3) port option to meet the needs/constraints of the environment. For superior chemical resistance, Parker offers a three (3) port 316L stainless steel wall bracket. The “full bore” design of Transair wall brackets paired with the low coefficient of friction in the stainless steel pipe ensures optimal flow throughout the system. All components are 100% recyclable, silicone free, and manufactured from materials with no propagation of flame. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation. Threaded adapters are required to connect Transair drop brackets for stainless steel to drop lines. Markets: • Automotive Assembly • Food & Beverage • Packaging • Industrial Plants • Aerospace Features/Benefits: • Quick connection technology • Modular & reusable • Corrosion resistant • Optimum flow rate • 100% Recyclable • Faster installation • Lower installation costs • Immediate Pressurization • 10-year warranty Applications: • Compressed Air • Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide) • Process Water • Chemical Transfer Maximum Working Pressure: • 145psi (10bar) when the system is operated from +14 to 140F (-20 to +60 C) • 100psi (7bar) when the system is operated from +14 to 194F (-20 to +90 C) Maximum Operating Temperature: • 194F (+90 C) when the system is operated with FKM seals and at 100psi (7bar) or lower |
| Action | Part No. | Availability | Partner Available | Price | Brand | Division | Shape | Maximum Operating Temperature | Industry | Assembly | Division | Assembly Time | Seal Material | Minimum Operating Temperature | Application | Technology | Configuration | Specifications Met | For Fluid Type | Quantity per Box | Connection 2 Type | Body Material | Weight | Product Type | Connection 1 Size | Connection 1 Type | Connection 2 Size | Maximum Operating Pressure | Connection 3 Size | Connection 3 Type | Pipe Outside Diameter | Shape | Connection Type | Pipe O.D. (mm) | Pipe O.D. (inch) | Connection Thread Size (inch) | Materials of Construction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6635 27 21* | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 1.653 | Wall Brackets | G 3/4 | Female BSPP | G 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | G 1/4 | Female BSPP | 25 | 3 Port Threaded Wall Bracket BSP Parallel G3/4 > G1/2 | Female Threaded BSP | ||||||
| 6636 28 22 | Quote Required | TBD | Parker | Fluid System Connectors Division | Straight | 185 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -4 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female NPT | Technical Polymer | 0,675 | Wall Brackets | NPT 3/4 | Female NPT | NPT 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | NPT 1/4 | Female NPT | 25 | 3 Port Threaded Wall Bracket | Female Threaded NPT | N/A | N/A | 3/4 | |||
| 6636 28 22* | Quote Required | TBD | Parker | Fluid System Connectors Division | Straight | 185 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -4 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female NPT | Technical Polymer | 0,675 | Wall Brackets | NPT 3/4 | Female NPT | NPT 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | NPT 1/4 | Female NPT | 25 | 3 Port Threaded Wall Bracket | Female Threaded NPT | ||||||
| 6641 21 21 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 1,188 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 1 Port 45° Threaded Wall Bracket G1/2 | Female Threaded BSP | N/A | N/A | 1/2 | |||
| 6641 21 21* | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 1,188 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 1 Port 45° Threaded Wall Bracket G1/2 | Female Threaded BSP | ||||||
| 6642 22 22* | Quote Required | TBD | Parker | Fluid System Connectors Division | Straight | 185 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -4 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female NPT | Treated Brass | 0,480 | Wall Brackets | NPT 1/2 | Female NPT | NPT 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | NPT 1/4 | Female NPT | 25|16/5 | 1 Port 45° Threaded Wall Bracket | Female Threaded NPT | ||||||
| 6686 21 21 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Inert Gases | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 0,914 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 2 Port 90° Threaded Wall Bracket BSP Parallel G1/2 | Female Threaded BSP | N/A | N/A | 1/2 | |||
| 6686 21 21* | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Inert Gases | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 0,914 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 2 Port 90° Threaded Wall Bracket BSP Parallel G1/2 | Female Threaded BSP | ||||||
| 6688 22 22* | Quote Required | TBD | Parker | Fluid System Connectors Division | Straight | 185 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.2 | NBR | -4 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female NPT | Treated Brass | 0,421 | Wall Brackets | NPT 1/2 | Female NPT | NPT 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | NPT 1/4 | Female NPT | 25|16/5 | 2 Port 90° Threaded Wall Bracket | Female Threaded NPT | ||||||
| 6690 21 21 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 1,481 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 2 Port 45° Threaded Wall Bracket, BSP Parallel G1/2 | Female Threaded BSP | N/A | N/A | 1/2 | |||
| 6690 21 21* | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | Straight | 85 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -20 | Compressed Air | Pneumatics | Port to Port | EN 755.2 | Air | 1 | Female BSPP | Treated Brass | 1,481 | Wall Brackets | G 1/2 | Female BSPP | G 1/2 | 16 | G 1/4 | Female BSPP | 25|16/5 | 2 Port 45° Threaded Wall Bracket, BSP Parallel G1/2 | Female Threaded BSP | Treated Brass | |||||
| 6691 22 22* | Quote Required | TBD | Parker | Fluid System Connectors Division | Straight | 185 | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.15 | NBR | -4 | Compressed Air | Pneumatics | Port to Port | CE | Air | 1 | Female NPT | Technical Polymer | 0,630 | Wall Brackets | NPT 1/2 | Female NPT | NPT 1/2 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | NPT 1/4 | Female NPT | 25|16/5 | 2 Port 45° Threaded Wall Bracket | Female Threaded NPT | ||||||
| RF35 06 04 | Quote Required | TBD | Low Pressure Connectors Europe Division | Fluid System Connectors Division | 0 Hours | NBR | EN 755.8 | Industrial Gas | 1 | Treated Brass | 0,415 kg | Stainless Steel 316L Wall Bracket G3/4 > 3 Ports G1/2 | Female Threaded BSP | Stainless Steel 316L | |||||||||||||||||||||||
| RF36 06N04 | Quote Required | TBD | Transair | Fluid System Connectors Division | Straight | 194 °F | General Industrial | n/a | Low Pressure Connectors Europe Division | 0.17 Hours | NBR | -4 °F | Process Water | Pneumatics | Port to Port | TUV | Air | 1 | Female NPT | Treated Brass | 1.64 lb | Wall Brackets | 3/4 inch | Female NPT | 1/2 inch | 10 bar | 1/4 inch | Female NPT | 22 mm | 316L Stainless 3 Port Threaded Wall Bracket | Female Threaded NPT |
