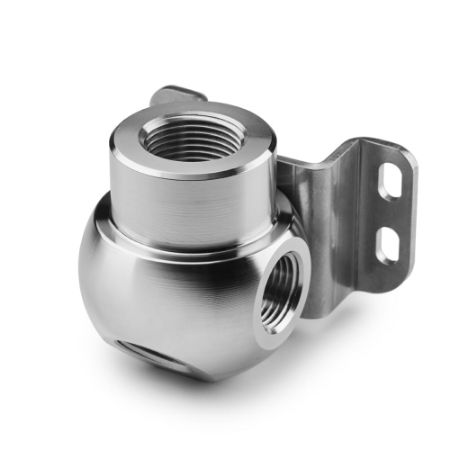

Transair® Wall Brackets for Stainless Steel Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
| Transair wall brackets for stainless steel pipe make connecting machinery or tools to the supply line quick and easy. These brackets are rated for use in compressed air, industrial/inert gas, process water, and chemical transfer applications. Parker offers a one (1), two (2), or three (3) port option to meet the needs/constraints of the environment. For superior chemical resistance, Parker offers a three (3) port 316L stainless steel wall bracket. The “full bore” design of Transair wall brackets paired with the low coefficient of friction in the stainless steel pipe ensures optimal flow throughout the system. All components are 100% recyclable, silicone free, and manufactured from materials with no propagation of flame. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation. Threaded adapters are required to connect Transair drop brackets for stainless steel to drop lines. Markets: • Automotive Assembly • Food & Beverage • Packaging • Industrial Plants • Aerospace Features/Benefits: • Quick connection technology • Modular & reusable • Corrosion resistant • Optimum flow rate • 100% Recyclable • Faster installation • Lower installation costs • Immediate Pressurization • 10-year warranty Applications: • Compressed Air • Industrial/Inert Gases (i.e. Argon, Nitrogen, Carbon Dioxide) • Process Water • Chemical Transfer Maximum Working Pressure: • 145psi (10bar) when the system is operated from +14 to 140F (-20 to +60 C) • 100psi (7bar) when the system is operated from +14 to 194F (-20 to +90 C) Maximum Operating Temperature: • 194F (+90 C) when the system is operated with FKM seals and at 100psi (7bar) or lower |
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Shape | Industry | Division | Assembly | Connection 2 Type | Seal Material | Application | Configuration | Specifications Met | For Fluid Type | Quantity per Box | Product Type | Connection 1 Type | Connection 3 Type | Assembly Time | Minimum Operating Temperature | Technology | Division | Pipe Outside Diameter | Weight | Connection 1 Size | Maximum Operating Temperature | Maximum Operating Pressure | Body Material | Connection 3 Size | Connection 2 Size | Pipe O.D. (mm) | Pipe O.D. (inch) | Connection Thread Size (inch) | Connection Type | Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6691 22 22 | Quote Required | 2 Limited Stock | $75.39/each | EA | Parker | Straight | General Industrial | Fluid System Connectors Division | n/a | Female NPT | NBR | Compressed Air | Port to Port | CE | Air | 1 | Wall Brackets | Female NPT | Female NPT | 0.15 | -4 | Pneumatics | Low Pressure Connectors Europe Division | 25|16/5 | 0,630 | NPT 1/2 | 185 | 232 psi 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm 101 PSI (-4° to +185°F)/7 bar ( -20°C to 85°C) up to 168 mm For Canada, Please refer to https://www.parker.com/c | Technical Polymer | NPT 1/4 | NPT 1/2 | N/A | N/A | 1/2 | Female Threaded NPT | 2 Port 45° Threaded Wall Bracket |
