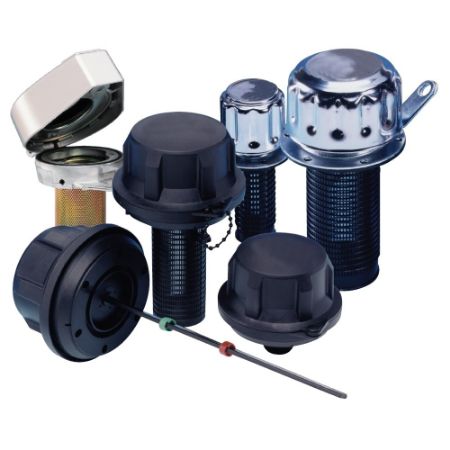

Top-mounted Breathers and Filler Breathers - AB Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Ingress of airborne contaminants into hydraulic systems can cause a number of costly issues, including increased wear on pumps and cylinders, decreased performance, shorter maintenance intervals, and added downtime.
The Parker AB Series comprises a full range of top-mounted breathers and filler breathers designed to prevent this by keeping out harmful contaminants and allowing the tank / fluid reservoir to effectively breath during equipment operation.
Multiple configurations are available to meet the unique requirements of customers’ hydraulic systems, including:
Filler Breathers - Glass-filled nylon or plated metal steel. Multiple installation available including single hole, three hole, or six hole installation. Flow rates up 620 L/min (163 GMP).
Screw-on type Breathers - Glass-filled nylon or plated metal steel. Multiple connection types available. Flow rates up to 620 L/min (163 GPM). Dipsticks available with all options (two lengths and in packs of 10).
Lockable Fillers and Filler Breathers (metal) - Pressurized and unpressurized threaded types available. For added reservoir security and oil protection, certain metal filler breathers can be specified with a locking lug option.
AB Series breathers and filler breathers are ideally suited for equipment required to operate in environments laden with dirt and dust.
Benefits
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic circuits, while allowing sufficient airflow into and out of the fluid reservoir
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Molded in non-corrodible, glass-filled nylon – strong and light
• Filler breathers available with single hole, six hole, and three hole installation
• Screw-on breather range – G1/2 and G3/4 options
• Compact range – G1/4, G3/8, R1/2 and R3/4 options
• Metal filler breathers – pressurized and unpressurized threaded type
• Flange mounting type options
• Lockable options for reservoir security and oil protection
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
Read More...The Parker AB Series comprises a full range of top-mounted breathers and filler breathers designed to prevent this by keeping out harmful contaminants and allowing the tank / fluid reservoir to effectively breath during equipment operation.
Multiple configurations are available to meet the unique requirements of customers’ hydraulic systems, including:
Filler Breathers - Glass-filled nylon or plated metal steel. Multiple installation available including single hole, three hole, or six hole installation. Flow rates up 620 L/min (163 GMP).
Screw-on type Breathers - Glass-filled nylon or plated metal steel. Multiple connection types available. Flow rates up to 620 L/min (163 GPM). Dipsticks available with all options (two lengths and in packs of 10).
Lockable Fillers and Filler Breathers (metal) - Pressurized and unpressurized threaded types available. For added reservoir security and oil protection, certain metal filler breathers can be specified with a locking lug option.
AB Series breathers and filler breathers are ideally suited for equipment required to operate in environments laden with dirt and dust.
Benefits
• Prevents contamination and ingress of dirt, sand, dust, metal, etc. into hydraulic circuits, while allowing sufficient airflow into and out of the fluid reservoir
• Lengthens time in between required maintenance intervals, reduces operating costs, and extends overall equipment/machine operational life
Features:
• Molded in non-corrodible, glass-filled nylon – strong and light
• Filler breathers available with single hole, six hole, and three hole installation
• Screw-on breather range – G1/2 and G3/4 options
• Compact range – G1/4, G3/8, R1/2 and R3/4 options
• Metal filler breathers – pressurized and unpressurized threaded type
• Flange mounting type options
• Lockable options for reservoir security and oil protection
For more information or a detailed discussion about your specific requirements please contact Parker or an authorised Parker distributor.
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Technology | Division | For Fluid Type | Division | Operating Temperature | Application | Industry | Mounting Type | Product Series | Micron Rating | Seal Material | Features | Includes | Flow Rate | Installation | Product Type | Strainer Type | Connection Type | Housing Material | Outside Diameter | Pressure Relief Valve Type | Filter Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1605 | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Waste Management, Dump and Fork Lift Trucks | Mining | Tanktop | AB Series | No element | Cork gasket | - | - | 430 l/min | Tank hole mounted | Filler Breather | 76 mm strainer | 6 Hole Installation | Plated Mild Steel | 76 mm | Un-Pressurised | ||||
| 5491 | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Deck and Mobile Cranes | Marine | Tanktop | AB Series | 10 µm | Cork gasket | Includes dipstick 355 mm | Includes dipstick 355mm | 430 l/min | Tank hole mounted | Filler Breather Cap | Without strainer | Replacement cap | Plated Mild Steel | 76 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| 5515 | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Reach Stackers | Forestry | Tanktop | AB Series | 40 µm | Cork gasket | With locking lug | With locking lug | 430 l/min | Tank hole mounted | Filler Breather | 95 mm strainer | 6 Hole Installation | Plated Mild Steel | 76 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| 5529 | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Firefighting Equipment | Agriculture | Tanktop | AB Series | 40 µm | No seal | Special 600µ strainer | Special 600µ strainer | 430 l/min | Tank hole mounted | Filler Breather | 76 mm strainer | 6 Hole Installation | Plated Mild Steel | 76 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| 5561 | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Power Packs | Agriculture | Tanktop | AB Series | 10 µm | Cork gasket | - | Locking lug | 430 l/min | Tank hole mounted | Lockable Filler Breather | 95 mm strainer | 6 Hole Installation | Plated Mild Steel | 76 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| 5598 | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Waste Balers | Mining | Tanktop | AB Series | 40 µm | Nitrile | With locking lug | With locking lug | 430 l/min | Tank hole mounted | Filler Breather | 95 mm strainer | 6 Hole Installation | Plated Mild Steel | 76 mm | 0.7 Bar | 10µ abs. PU-foam | |||
| 5884.10 | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Deck and Mobile Cranes | Oil and Gas | Tanktop | AB Series | 5 µm | Cork gasket | Spare element | Spare element | 1500 l/min | - | Breather Spin on element | - | - | Plated Mild Steel | 94 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| 944691Q | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Power Packs | Marine | Tanktop | AB Series | 1.5 µm water resistant | Nitrile | Spare element | Spare element | 500 l/min | - | Heavy Duty Breather element | - | - | - | 75mm | - | 10µ abs. PU-foam | |||
| 944692Q | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Waste Balers | Oil and Gas | Tanktop | AB Series | 2.0 µm polyester | Nitrile | Spare element | Spare element | 900 l/min | - | Heavy Duty Breather element | - | - | - | 75mm | - | 10µ abs. PU-foam | |||
| 944693Q | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Hydraulic Presses | Agriculture | Tanktop | AB Series | 1.0 µm glass fiber | Nitrile | Spare element | Spare element | 900 l/min | - | Heavy Duty Breather element | - | - | - | 75mm | - | 10µ abs. PU-foam | |||
| AB.1380.10 | Quote Required | $46.17 | EA | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Excavators | Mining | Tanktop | AB Series | 10 µm | Cork gasket | Anti Splash Plate | - | 135 l/min | Tank hole mounted | Filler Breather | 63 mm strainer | 3 Hole Installation | Plated Mild Steel | 45 mm | Un-Pressurised | 10µ abs. PU-foam | ||
| AB.1380.40 | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Hydraulic Presses | Oil and Gas | Tanktop | AB Series | 40 µm | Cork gasket | - | - | 270 l/min | Tank hole mounted | Filler Breather | Without strainer | 3 Hole Installation | Plated Mild Steel | 45 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| AB.1381.40 | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Firefighting Equipment | Mining | Tanktop | AB Series | 40 µm | No seal | - | - | 720 l/min | Tank hole mounted | Air Breather | Without strainer | Push-on mounted | Plated Mild Steel | 76 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| AB.6821000.UC | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Power Packs | Oil and Gas | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 1150 l/min | Tank hole mounted | Filler Breather | Without strainer | 3 Clamp mounted | Glass-filled Nylon | 92 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| AB.6821001.UC | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Harvesters | Marine | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 1150 l/min | Tank hole mounted | Filler Breather | 95 mm strainer | 3 Clamp mounted | Glass-filled Nylon | 92 mm | Un-Pressurised | 10µ abs. PU-foam | |||
| AB.6821301.UC | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Forwarders | Agriculture | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 1150 l/min | Tank hole mounted | Filler Breather | 95 mm strainer | 3 Clamp mounted | Glass-filled Nylon | 92 mm | 0.35 Bar | 10µ abs. PU-foam | |||
| AB.683102.UC | Quote Required | TBD | Hydraulic & Industrial Process Filtration Division EMEA | 10 µm | No seal | Pack of 10 pcs | Pack of 10 pcs | 175 l/min | Srew-On | Breather | - | 1/4NPT male thread | Glass-filled Nylon | 40 mm | Un-Pressurised | |||||||||||||
| AB.685121.UC | Quote Required | TBD | Parker | Hydraulics | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Hydraulic Presses | Oil and Gas | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 450 l/min | Srew-On | Breather | Without strainer | G3/8 male thread | Glass-filled Nylon | 70 mm | 0.2 Bar | 10µ abs. PU-foam | |||
| AB.686121.UC | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Deck and Mobile Cranes | Marine | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 510 l/min | Srew-On | Breather | Without strainer | G1/2 male thread | Glass-filled Nylon | 70 mm | 0.2 Bar | 10µ abs. PU-foam | |||
| AB.687121.UC | Quote Required | TBD | Parker | Filtration | Hydraulic & Industrial Process Filtration Division EMEA | Air | Hydraulic & Industrial Process Filtration Division EMEA | -30 to 90 °C | Marine Steering Units | Construction | Tanktop | AB Series | 10 µm | Nitrile | Dipstick mountable | Dipstick mountable | 740 l/min | Srew-On | Breather | Without strainer | G3/4 male thread | Glass-filled Nylon | 70 mm | 0.2 Bar | 10µ abs. PU-foam |
