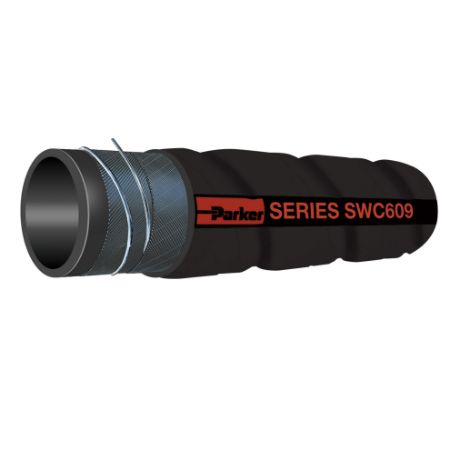

TITANFLEX® CORRUGATED PETROLEUM TRANSPORT SUCTION HOSE
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Titanflex Corrugated Petroleum Transport Suction Hose provides excellent service across a wide variety of medium pressure, standard duty tank truck applications. The lightweight, corrugated construction provides crush resistance and kink resistance for unimpeded flow, superior flexibility for easy handling and operator convenience, and resistance to abrasion and weathering for maximum performance.
Markets:
• General Industrial
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black or red nitrile for abrasion, heat, oil resistance and durability.
Applications:
• Biodiesel (to B100 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
Read More...Markets:
• General Industrial
• Oil & Gas
• Transportation
Features/Benefits:
• Tube: Black nitrile for fuel and oil resistance to 200°F.
• Reinforcement: Multiple textile plies for strength and durability, and a dual wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black or red nitrile for abrasion, heat, oil resistance and durability.
Applications:
• Biodiesel (to B100 in dedicated service)
• Brine
• Crude oil
• Diesel
• Ethanol
• Gasoline
• Mild chemicals
• Petroleum waste
• Sediments
• Sludge
• Slurries
• Water
• Bulk depots and storage facilities
• Service trucks
• Transport tank trucks
Safety/Technical:
• Design Factor: 4:1
• Refer to CrimpSource® for current crimp specifications.
Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
• Do not use for oil or fuel transfer service in or on open water.
| Action | Part No. | Availability | Partner Available | Price | UOM | Inside Diameter | Minimum Operating Temperature | Vacuum Pressure Rating | Nominal Hose Inside Diameter | Cover Material | Hose Reinforcement Material | Cover Structure | Weight | Maximum Operating Pressure | Hose Inner Tube Material | Maximum Operating Temperature | Size | Division | Media | Minimum Bend Radius | Outside Diameter | Application | Hose I.D. (inch) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SWC609-1250 | Quote Required | TBD | 31.8 mm | -40 °F | 29 Inch-Hg | 32 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 0.94 kg/m | 1.7 MPa | Nitrile | 180 °F | -20 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 33 mm | 1.690 inch | Petroleum Transfer | 1-1/4 | Black | |||
| SWC609-1500 | Quote Required | 296 In Stock | $18.24 | FT | 38.1 mm | -40 °F | 737 mm-Hg | 40 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 0.78 lb/ft | 17.2 bar | Nitrile | 180 °F | -24 | Hose Products Division | Lubricants (Oils) | 38 mm | 1.950 inch | Petroleum Transfer | 1-1/2 | Black | |
| SWC609-2000 | Quote Required | 119 In Stock | $19.83 | FT | 50.8 mm | -40 °F | 737 mm-Hg | 50 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 1 lb/ft | 17.2 bar | Black | 82 °C | -32 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 2 inch | 62.2 mm | Petroleum Transfer | 2 | Black | |
| SWC609-2500 | Quote Required | 14 In Stock | $24.44 | FT | 63.5 mm | -40 °F | 737 mm-Hg | 65 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 1.44 lb/ft | 200 psi | Nitrile | 180 °F | -40 | Hose Products Division | Fuels (Diesel) - Check fuel type with our catalogue chart. | 64 mm | 76.2 mm | Petroleum Transfer | 2-1/2 | Black | |
| SWC609-3000 | Quote Required | 270 In Stock | $26.12 | FT | 76.2 mm | -40 °F | 29 Inch-Hg | 80 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 2.53 kg/m | 1.4 MPa | Nitrile | 82 °C | -48 | Hose Products Division | Fuels (Biodiesel (to B100 in dedicated service) | 76 mm | 3.580 inch | Petroleum Transfer | 3 | Black | |
| SWC609-4000 | Quote Required | TBD | 101.6 mm | -40 °C | 737 mm-Hg | 100 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 3.59 kg/m | 10.3 bar | Nitrile | 180 °F | -64 | Hose Products Division | Fuels (Diesel) - Check fuel type with our catalogue chart. | 4 inch | 4.630 inch | Petroleum Transfer | 4 | Black | |||
| SWC609-6002 | Quote Required | TBD | 152.4 mm | -40 °C | 29 Inch-Hg | 150 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 7.08 kg/m | 150 psi | Nitrile | 180 °F | -80 | Hose Products Division | Fuels (Diesel) - Check fuel type with our catalogue chart. | 305 mm | 171.5 mm | Petroleum Transfer | 6 | Black | |||
| SWC609-8002 | Quote Required | TBD | 209.2 mm | -40 °C | 29 Inch-Hg | 200 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 6.95 lb/ft | 1 MPa | Black | 82 °C | -96 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 16 inch | 223.3 mm | Petroleum Transfer | 8 | Black | |||
| SWC609R-1500 | Quote Required | TBD | 1-1/2 | -40 | 29 | 40 | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 0.78 | 250 | Black | 180 | -24 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 1.5 | 1.950 | Petroleum Transfer | 1-1/2 | Red | |||
| SWC609R-2000 | Quote Required | TBD | 50.8 mm | -40 °C | 737 mm-Hg | 50 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 1 lb/ft | 1.7 MPa | Nitrile | 82 °C | -32 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 2 inch | 2.450 inch | Petroleum Transfer | 2 | Red | |||
| SWC609R-2500 | Quote Required | TBD | 2-1/2 | -40 | 29 | 65 | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 1.44 | 200 | Black | 180 | -40 | Hose Products Division | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | 2.5 | 3 | Petroleum Transfer | 2-1/2 | Red | |||
| SWC609R-3000 | Quote Required | TBD | 3 inch | -40 °F | 737 mm-Hg | 80 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 2.53 kg/m | 200 psi | Nitrile | 180 °F | -48 | Hose Products Division | Fuels (Diesel) - Check fuel type with our catalogue chart. | 76 mm | 3.580 inch | Petroleum Transfer | 3 | Red | |||
| SWC609R-4000 | Quote Required | TBD | 4 inch | -40 °F | 29 Inch-Hg | 100 mm | Nitrile | Multiple Plies of Textile with Dual Wire Helix | Corrugated | 3.59 kg/m | 10.3 bar | Black | 180 °F | -64 | Hose Products Division | Fuels (Biodiesel (to B100 in dedicated service) | 152 mm | 117.5 mm | Petroleum Transfer | 4 | Red |
