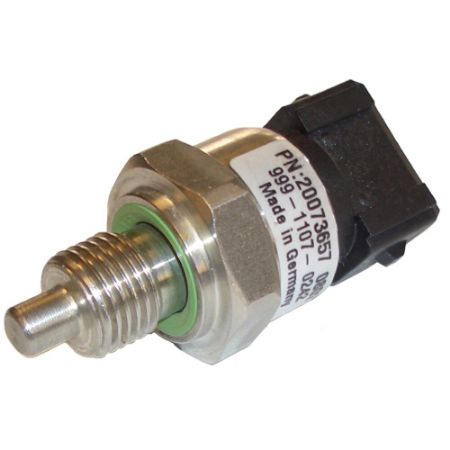

Temperature Sensors - IQAN-ST
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s IQAN-ST is a range of active temperature transducers for mobile hydraulic applications. The IQAN-ST has stainless steel construction for strength. Its PT100 sensor uses thin film technology with internal amplification. All versions of the sensor have high pressure capability. The IQAN-ST is very robust and able to withstand heavy vibrations.
The transducer has a temperature range of -50 °C to +150 °C. The signal range is ideal for mobile equipment, being 0.25 - 4.75 VDC over the full scale of the sensor.
The IQAN-ST comes in 3 mounting configurations:
• G1/4 BSPP threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
• 9/16-18 UNF (6 SAE) threaded interface with Deutsch DT connector attached to a short cable
• M10x1 threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
This makes the IQAN-ST perfect for construction and other mobile applications anywhere in the world.
Markets:
• Construction equipment
• Forestry equipment
• Agriculture machinery
• Material handling equipment
• Mining
Features/Benefits:
• Stainless steel body for strength.
• Wide temperature range.
• Different mounting options support use in any region.
• Output signal tailored to mobile equipment.
Applications:
• Refuse trucks
• Crop sprayers
• Fork lifts and telehandlers
• Feller bunchers and forwarders
• Rock drills
Read More...The transducer has a temperature range of -50 °C to +150 °C. The signal range is ideal for mobile equipment, being 0.25 - 4.75 VDC over the full scale of the sensor.
The IQAN-ST comes in 3 mounting configurations:
• G1/4 BSPP threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
• 9/16-18 UNF (6 SAE) threaded interface with Deutsch DT connector attached to a short cable
• M10x1 threaded interface with integral AMP/Tyco (Bosch Jetronic) connector
This makes the IQAN-ST perfect for construction and other mobile applications anywhere in the world.
Markets:
• Construction equipment
• Forestry equipment
• Agriculture machinery
• Material handling equipment
• Mining
Features/Benefits:
• Stainless steel body for strength.
• Wide temperature range.
• Different mounting options support use in any region.
• Output signal tailored to mobile equipment.
Applications:
• Refuse trucks
• Crop sprayers
• Fork lifts and telehandlers
• Feller bunchers and forwarders
• Rock drills
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Electrical Connection | Sensor Type | Signal Output | Connection Type | Operating Temperature | Model Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20073657 | Quote Required | TBD | Electronic Motion and Controls Division | AMP/Tyco | Temperature | 0.25 to 4.75 VDC | G1/4 BSPP | -50 to 150 °C | IQAN-ST-G-B | |||
| 20073658 | 2 Limited Stock | 22 In Stock | $300.96 | EA | Electronic Motion and Controls Division | Deutsch DT | Temperature | 0.25 to 4.75 VDC | 9/16-18 UNF | -50 to 150 °C | IQAN-ST-U-D | |
| 20073659 | Quote Required | TBD | Electronic Motion and Controls Division | AMP/Tyco | Temperature | 0.25 to 4.75 VDC | M10x1 | -50 to 150 °C | IQAN-ST-M-B | |||
| 5020006 | Quote Required | 2 Limited Stock | $201.60 | EA | Electronic Motion and Controls Division | AMP/Tyco | Temperature | 1016 to 2272 mV | M10x1 No Seal | -30 to 130 °C | KTY19 Temp. Sensor |
