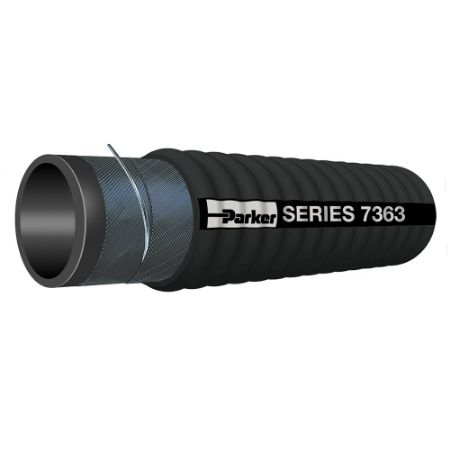

SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 7363 Concrete Placement Hose provides excellent heavy duty service as a delivery/placement connection across multiple medium pressure transfer and applications. The thick rubber tube provides additional resistance to abrasive materials going through the hose, and the corrugated cover provides kink resistance for unimpeded flow, additional flexibility for easy handling and resistance to abrasion and weathering for maximum performance.
Markets:
• Construction
• General Industrial
• Local & Municipal Governments
Features/Benefits:
• Tube: Black 3/16” thick natural rubber/SBR for abrasion resistance to 160°F.
• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.
• Cover: Black corrugated rubber/SBR for resistance to abrasion, cuts, gouging, scuffs and weathering.
• Lengths: Available in optional 200-foot lengths for maximum efficiency of inventory.
Applications:
- media
• Abrasive materials
• Debris
• Water
- usage
• Bulk loading/unloading
• Construction sites
• Rail yards
Safety/Technical:
• Design Factor: 3:1
• Click here to access CrimpSource® for current crimp specifications.
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Division | Minimum Operating Temperature | Specifications Met | Package Type | Length per Package | Application | Cover Color | Minimum Bend Radius | Inside Diameter | Design Factor | Vacuum Pressure Rating | Cover Structure | Hose Reinforcement Material | Media | Weight | Cover Material | Outside Diameter | Hose Inner Tube Material | Maximum Operating Temperature | Hose I.D. (inch) | Maximum Working Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7363-2000 | Quote Required | TBD | 100 | Hose Products Division | -40 | N/A | Coil | 100 | Material Handling | Black | 6 | 2 | 3:1 | Full | Corrugated | 3 Plies of Textile with Wire Helix | Dry Abrasive Powders (Debris) | 1.53 | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 2.740 | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 160 | 2 | 100 | |||
| 7363-3000 | Quote Required | TBD | 100 psi | Hose Products Division | -40 °F | N/A | Coil | 100 ft | Material Handling | Black | 9 inch | 3 inch | 3:1 | Full | Wrapped | 3 Plies of Textile with Wire Helix | Dry Abrasive Powders (Debris) | 2.35 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 3.800 inch | Black | 160 °F | 3 | 100 | |||
| 7363-4000 | Quote Required | TBD | 6.9 bar | Hose Products Division | -40 °F | N/A | Coil | 100 ft | Material Handling | Black | 304.8 mm | 4 inch | 3:1 | Full | Wrapped | 3 Plies of Textile with Wire Helix | Water | 3.26 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 123.1 mm | Black | 160 °F | 4 | 100 | |||
| 7363-5000 | Quote Required | 19 In Stock | $77.40 | FT | 100 psi | Hose Products Division | -40 °C | N/A | Coil | 100 ft | Material Handling | Black | 381 mm | 5 inch | 3:1 | Full | Wrapped | 3 Plies of Textile with Wire Helix | Wet Abrasive Powders | 4.64 lb/ft | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 5.929 inch | Black | 71 °C | 5 | 100 | |
| 7363-6000 | Quote Required | TBD | 6.9 bar | Hose Products Division | -40 °F | N/A | Coil | 100 ft | Material Handling | Black | 18 inch | 152.4 mm | 3:1 | Full | Wrapped | 3 Plies of Textile with Wire Helix | Water | 8.34 kg/m | Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend | 6.937 inch | Black | 160 °F | 6 | 100 |
