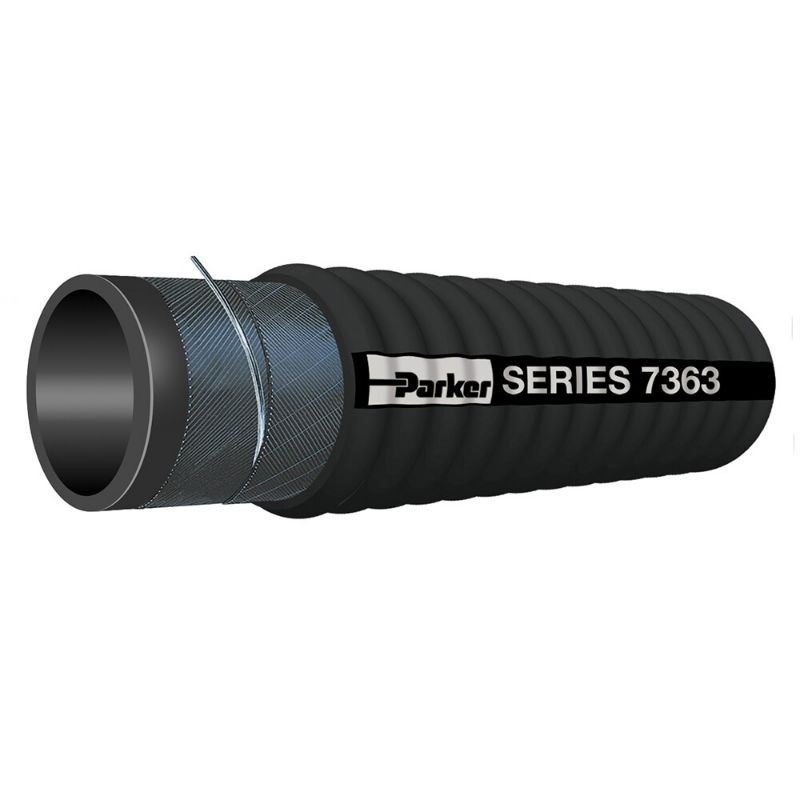

Parker 7363-5000 - SUPER-FLEX® Large Diameter Corrugated Vacuum Hose, Series 7363

Super-Flex Large Diameter Corrugated Vacuum Hose incorporates a 3/16” thick rubber tube and is designed for transfer service of highly abrasive materials in applications to 160°F and 100 psi, Series 7363

Availability:	Quote Required
Partner Available:	19 In Stock

Brand Parker

Part No. 7363-5000

$77.40

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °C	Specifications Met	N/A
Package Type	Coil	Length per Package	100 ft
Maximum Operating Pressure	100 psi	Application	Material Handling
Cover Color	Black	Hose Inner Tube Material	Black
Maximum Operating Temperature	71 °C	Minimum Bend Radius	381 mm
Design Factor	3:1	Cover Structure	Wrapped
Vacuum Pressure Rating	Full	Hose Reinforcement Material	3 Plies of Textile with Wire Helix
Media	Wet Abrasive Powders	Weight	4.64 lb/ft
Cover Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend	Inside Diameter	5 inch
Outside Diameter	5.929 inch	Maximum Working Pressure (psi)	100
Hose I.D. (inch)	5

Product resources

Literature and Reference Materials
