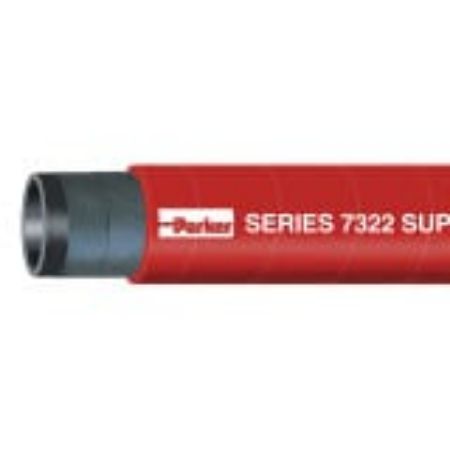

SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Super-Flex GS Large Diameter General Service Air & Water Hose provides excellent service across multiple applications. The hose tube is compatible with light oil mists for tool lubrication. The cover resists abrasion and weathering to provide maximum performance, incorporates a true round, concentric profile for easy coupling installation, and is qualified with permanent crimp couplings for a safe and secure connection. Super-Flex GS hose is a versatile hose for many common industrial applications.

Markets:
• Agriculture
• Construction
• General Industrial

Features/Benefits:
• Tube: Black EPDM for versatile and economical service to 212°F.
• Reinforcement: Multiple textile plies for strength and kink resistance.
• Cover: Black or red EPDM for abrasion and weathering resistance.
• Couplings: Qualified with steel crimp couplings for a durable, safe and secure connection.

Applications:
• Air
• Mild chemicals
• Water
• Air compressors and pneumatic tools, including those subject to light oil mists for lubrication

Safety/Technical:
• Design Factor: 4:1
• Do not use with oil or refined fuel.
• Refer to CrimpSource® for current crimp specifications.

Warnings:
• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	UOM	Division	Minimum Operating Temperature	Media	Maximum Operating Temperature	Specifications Met	Cover Material	Maximum Operating Pressure	Inside Diameter	Hose Reinforcement Material	Hose Inner Tube Material	Size	Weight	Application	Minimum Bend Radius	Nominal Hose Inside Diameter	Outside Diameter	Color	Hose I.D. (inch)	Pkg Qty/UOM	Mating Fitting Series	Package Type	Inner Diameter	Pkg Qty	Color	Working Pressure	Inch/Metric	Hose Category	Series	Inner Diameter	Parker Division	Mating End Fitting Series	Parker Group	Hose Pressure Range	Inner Diameter Inch/mm	Color	Trade Name
7322-125200	Quote Required	Quote Required	TBD			Hose Products Division	-40 °C	Water	212 °F	N/A	Ethylene Propylene Diene Monomer (EPDM)	1.4 MPa	31.8 mm	2 Plies of Textile	Black	-20	0.71 lb/ft	Multipurpose	7.5 inch	32 mm	1.740 inch	Red	1-1/4
7322-150200	Quote Required	Quote Required	TBD	FT		Hose Products Division	-40 °F	Water	100 °C	N/A	Ethylene Propylene Diene Monomer (EPDM)	13.8 bar	1-1/2 inch	2 Plies of Textile	Ethylene Propylene Diene Monomer (EPDM)	-24	0.82 lb/ft	Multipurpose	8.5 inch	40 mm	50.4 mm	Red	1-1/2	200 FT	43	Coil	1.5 Inch	200	Red	200 PSI (14 bar)	Inch	General Service Air & Water	7322	1.5 Inch	Hose Products	43	Fluid Connector	Low	Inch	Red	SUPER-LOK GS™
7322-200200	Quote Required	Quote Required	TBD	FT		Hose Products Division	-40 °C	Air including oil mist	100 °C	N/A	Ethylene Propylene Diene Monomer (EPDM)	13.8 bar	50.8 mm	Mutiple Plies of Textile	Black	-32	1.23 lb/ft	Multipurpose	304.8 mm	50 mm	65.2 mm	Red	2	200 FT	43	Coil	2 Inch	200	Red	200 PSI (14 bar)	Inch	General Service Air & Water	7322	2 Inch	Hose Products	43	Fluid Connector	Low	Inch	Red	SUPER-LOK GS™
7323-125200	Quote Required	1604 In Stock	$13.53	FT	FT	Hose Products Division	-40 °C	Water	100 °C	N/A	Ethylene Propylene Diene Monomer (EPDM)	1.4 MPa	31.8 mm	2 Plies of Textile	Ethylene Propylene Diene Monomer (EPDM)	-20	0.71 lb/ft	Air	190.5 mm	32 mm	1.740 inch	Black	1-1/4	200 FT	HY	Coil	1.25 Inch	200	Black	200 PSI (14 bar)	Inch	General Service Air & Water	7323	1.25 Inch	Hose Products	43	Fluid Connector	Low	Inch	Black	SUPER-LOK GS™
7323-150200	Quote Required	Quote Required	TBD	FT		Hose Products Division	-40 °F	Air including oil mist	212 °F	N/A	Ethylene Propylene Diene Monomer (EPDM)	13.8 bar	38.1 mm	2 Plies of Textile	ARPM Class C Oil Resistance	-24	0.82 lb/ft	Air	8.5 inch	40 mm	1.990 inch	Black	1-1/2	200 FT	43	Coil	1.5 Inch	200	Black	200 PSI (14 bar)	Inch	General Service Air & Water	7323	1.5 Inch	Hose Products	43	Fluid Connector	Low	Inch	Black	SUPER-LOK GS™
7323-200200	Quote Required	Quote Required	TBD	FT		Hose Products Division	-40 °F	Mild Chemicals - Check your fluid compatibility with our catalogue chart.	212 °F	N/A	Ethylene Propylene Diene Monomer (EPDM)	200 psi	50.8 mm	Mutiple Plies of Textile	Black	-32	1.23 lb/ft	Multipurpose	304.8 mm	50 mm	2.570 inch	Black	2	200 FT	43	Coil	2 Inch	200	Black	200 PSI (14 bar)	Inch	General Service Air & Water	7323	2 Inch	Hose Products	43	Fluid Connector	Low	Inch	Black	SUPER-LOK GS™
