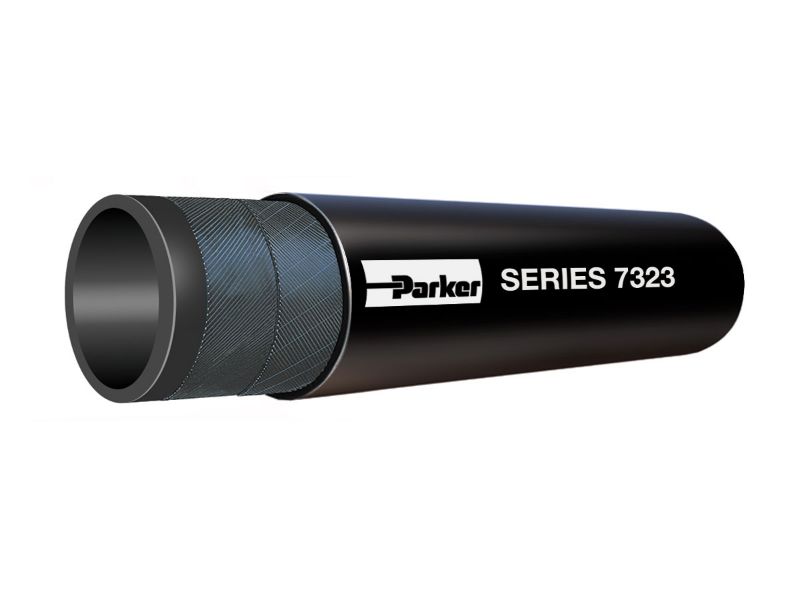

Parker 7323-125200 - SUPER-FLEX® GS LARGE DIAMETER GENERAL SERVICE AIR & WATER HOSE

Super-Flex GS Large Diameter General Service Air & Water Hose is designed for transfer of air, mild chemicals and water in applications to 212°F and 200 psi

AFP Availability:	Quote Required
Partner Available:	1431 In Stock

Brand Parker

Part No. 7323-125200

$14.21/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Size	-20
Media	Water	Division	Hose Products Division
Maximum Operating Temperature	100 °C	Minimum Operating Temperature	-40 °C
Application	Air	Hose Inner Tube Material	Ethylene Propylene Diene Monomer (EPDM)
Maximum Operating Pressure	1.4 MPa	Hose Reinforcement Material	2 Plies of Textile
Weight	0.71 lb/ft	Nominal Hose Inside Diameter	32 mm
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Specifications Met	n/a
Minimum Bend Radius	190.5 mm	Inside Diameter	31.8 mm
Outside Diameter	1.740 inch	Color	Black
Hose I.D. (inch)	1-1/4	Inner Diameter	1.25 Inch
Pkg Qty	200	Working Pressure	200 PSI (14 bar)
Pkg Qty/UOM	200 FT	Mating Fitting Series	HY
Package Type	Coil	Color	Black
UOM	FT	Inch/Metric	Inch
Hose Category	General Service Air & Water	Mating End Fitting Series	43
Color	Black	Parker Group	Fluid Connector
Parker Division	Hose Products	Series	7323
Hose Pressure Range	Low	Trade Name	SUPER-LOK GS™
Inner Diameter	1.25 Inch	Inner Diameter Inch/mm	Inch
