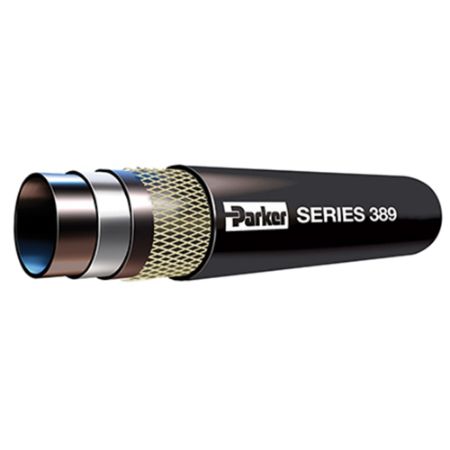

SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 389 Super-Flex FL-7 Barrier Fuel Line Hose provides excellent service across a wide variety of fuels and multiple engine applications. The thermoplastic liner serves as a barrier to limit permeation of Volatile Organic Compounds (VOC), providing compliance with government and industry regulations. The hose is compatible with Parker Safe Lock™ SAE J2044 quick connect fittings for easy and secure attachment and installation. The cover resists oil and high temperatures common to engine compartments, providing maximum performance in challenging applications.
Markets:
• Agriculture
• Construction
• General Industrial
• Transportation
Features/Benefits:
• Tube: Black nitrile with THV barrier for exceptional fuel and permeation resistance to 257°F.
• Reinforcement: Multiple aramid plies for strength and a slim profile for easy routing.
• Cover: Black CPE for abrasion, heat and oil r1esistance.
• Couplings: Parker SAE J2044 Safe Lock quick connect; also qualified with crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Biodiesel (to B20 in dedicated and non-dedicated service)
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Blowers
• Grinders
• Mowers
• Pressure Washers
• Saws
- settings
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
Industry Standards:
• CARB 2006/SORE
• EPA
• SAE J30R7/30R14T2
Safety/Technical:
• Click here to link to Hose & Chemical Guides.
• Do not use in marine fuel applications.
Read More...Markets:
• Agriculture
• Construction
• General Industrial
• Transportation
Features/Benefits:
• Tube: Black nitrile with THV barrier for exceptional fuel and permeation resistance to 257°F.
• Reinforcement: Multiple aramid plies for strength and a slim profile for easy routing.
• Cover: Black CPE for abrasion, heat and oil r1esistance.
• Couplings: Parker SAE J2044 Safe Lock quick connect; also qualified with crimp couplings for a durable, safe and secure connection.
Applications:
- media
• Biodiesel (to B20 in dedicated and non-dedicated service)
• Diesel
• Ethanol
• Gasoline
• Oil
- usage
• Blowers
• Grinders
• Mowers
• Pressure Washers
• Saws
- settings
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
Industry Standards:
• CARB 2006/SORE
• EPA
• SAE J30R7/30R14T2
Safety/Technical:
• Click here to link to Hose & Chemical Guides.
• Do not use in marine fuel applications.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Minimum Operating Temperature | Maximum Operating Temperature | Weight | Maximum Operating Pressure | Cover Color | Cover Structure | Package Type | Vacuum Pressure Rating | Inside Diameter | Media | Application | Cover Material | Outside Diameter | Compatible Fitting | Length per Package | Specifications Met | Minimum Bend Radius | Hose Inner Tube Material | Hose Reinforcement Material | Hose I.D. (inch) | Maximum Working Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38903 | Quote Required | TBD | Hose Products Division | -40 °F | 125 °C | 0.06 lb/ft | 3.4 bar | Black | Smooth | Reel | 24 Inch-Hg | 3/16 inch | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 0.406 inch | 55 Series | 250 ft | SAE J30R7 | 33 mm | Nitrile/Translucent with THV Barrier | 2 Plies of Aramid | 3/16 | 100 | |||
| 38904 | Quote Required | 41208 In Stock | $2.42 | FT | Hose Products Division | -40 °F | 125 °C | 0.09 lb/ft | 3.4 bar | Black | Smooth | Reel | 24 Inch-Hg | 6.4 mm | Fuels (Biodiesel to B20 in dedicated and non-dedicated service) | Specialty | Chloroprene Rubber (CR) | 0.500 inch | HY Series | 250 ft | CARB SORE | 1.5 inch | Black | 2 Plies of Aramid | 1/4 | 100 | |
| 38905 | Quote Required | TBD | Hose Products Division | -40 °C | 125 °C | 0.11 lb/ft | 3.4 bar | Black | Smooth | Reel | 24 Inch-Hg | 5/16 inch | Fuels (Diesel) - Check fuel type with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 14.3 mm | HY Series | 250 ft | SAE J30R14, Type 2 | 50.8 mm | Black | 2 Plies of Aramid | 5/16 | 100 | |||
| 38906 | Quote Required | 696 In Stock | $3.25 | FT | Hose Products Division | -40 °F | 257 °F | 0.18 kg/m | 100 psi | Black | Smooth | Reel | 24 Inch-Hg | 9.8 mm | Fuels (Biodiesel to B20 in dedicated and non-dedicated service) | Specialty | Chloroprene Rubber (CR) | 0.625 inch | HY Series | 250 ft | SAE J30R14, Type 2 | 63.5 mm | Black | 2 Plies of Aramid | 3/8 | 100 | |
| 38908 | Quote Required | TBD | Hose Products Division | -40 °F | 257 °F | 0.26 kg/m | 100 psi | Black | Smooth | Reel | 10 Inch-Hg | 1/2 inch | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 19.8 mm | HY Series | 250 ft | SAE J30R7 | 101.6 mm | Nitrile/Translucent with THV Barrier | 2 Plies of Aramid | 1/2 | 100 | |||
| 38910 | Quote Required | 422 In Stock | $5.45 | FT | Hose Products Division | -40 °F | 125 °C | 0.24 lb/ft | 100 psi | Black | Smooth | Reel | 10 Inch-Hg | 5/8 inch | Fuels (Biodiesel to B20 in dedicated and non-dedicated service) | Specialty | Chloroprene Rubber (CR) | 23.9 mm | n/a | 250 ft | EPA | 5 inch | Nitrile/Translucent with THV Barrier | 2 Plies of Aramid | 5/8 | 100 | |
| 38912 | Quote Required | TBD | Hose Products Division | -40 | 257 | 0.35 | 100 | Black | Smooth | Reel | 10 | 3/4 | Chemicals (Ethanol) - Check your fluid compatibility with our catalogue chart. | Specialty | Chloroprene Rubber (CR) | 1.125 | n/a | 250 | CARB SORE | 6 | Black | 2 Plies of Aramid | 3/4 | 100 |
