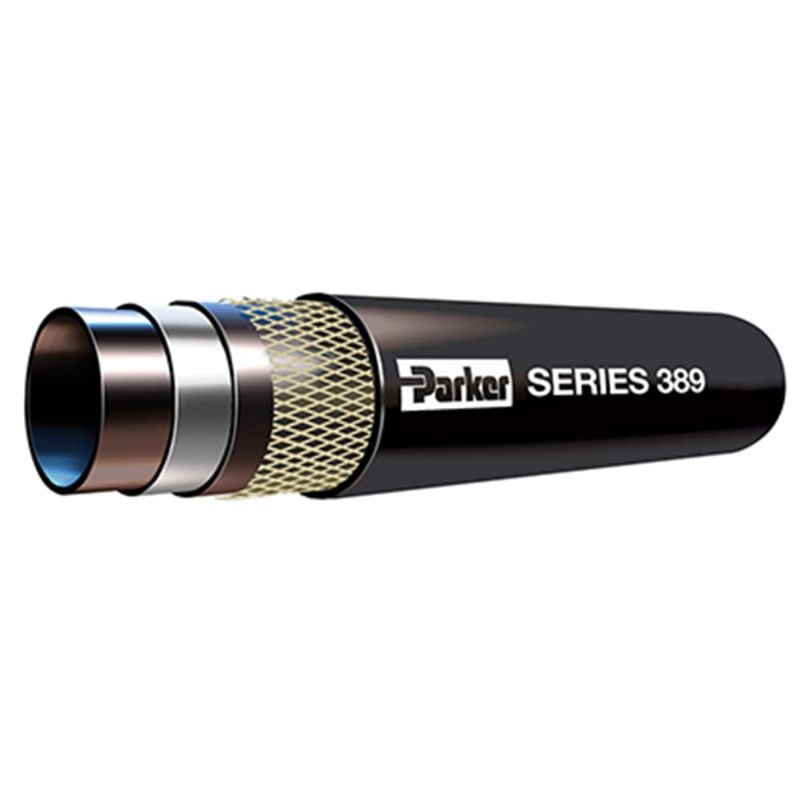

Parker 38906 - SUPER-FLEX® FL-7 Barrier Fuel Line Hose, Series 389

Super-Flex FL-7 Barrier Fuel Line Hose is designed for engine fuel supply in applications to 257°F and 100 psi, Series 389.

Availability:	Quote Required
Partner Available:	696 In Stock

Brand Parker

Part No. 38906

$3.25

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Minimum Operating Temperature	-40 °F	Maximum Operating Pressure	100 psi
Cover Color	Black	Minimum Bend Radius	63.5 mm
Cover Structure	Smooth	Package Type	Reel
Hose Inner Tube Material	Black	Vacuum Pressure Rating	24 Inch-Hg
Maximum Operating Temperature	257 °F	Weight	0.18 kg/m
Media	Fuels (Biodiesel to B20 in dedicated and non-dedicated service)	Application	Specialty
Cover Material	Chloroprene Rubber (CR)	Inside Diameter	9.8 mm
Outside Diameter	0.625 inch	Compatible Fitting	HY Series
Length per Package	250 ft	Specifications Met	SAE J30R14, Type 2
Hose Reinforcement Material	2 Plies of Aramid	Hose I.D. (inch)	3/8
Maximum Working Pressure (psi)	100

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

EPA Certificate of Conformity--Series 389-CURRENT YEAR (PDF)
