Standard Duty Water Suction Hose, Series 7392E

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

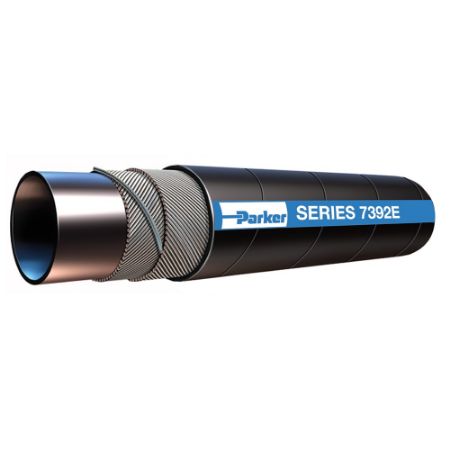

Parker's Series 7392E Standard Duty Water Suction Hose provides economical medium pressure, standard duty service across multiple applications. The lightweight construction provides crush resistance and kink resistance for unimpeded flow, flexibility for easy handling and resistance to abrasion and weathering for maximum performance.

Markets:

• Agriculture

• Construction

• General Industrial

• Surface Mining

Features/Benefits:

• Tube: Black synthetic rubber for versatile service to 180°F.

• Reinforcement: Multiple textile plies for strength and durability, and a wire helix for full suction capability and a path to conduct a static charge to ground.

• Cover: Black synthetic rubber for resistance to abrasion, cuts, gouging, scuffs and weathering resistance.

Applications:

• Brine

• Glycols

• Slurries

• Water

• Irrigation

• Pumps

Safety/Technical:

• Click here to access CrimpSource® for current crimp specifications.

Warnings:

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Minimum Operating Temperature	Media	Specifications Met	Design Factor	Minimum Bend Radius	Maximum Operating Pressure	Cover Color	Maximum Operating Temperature	Hose Inner Tube Material	Cover Material	Inside Diameter	Weight	Application	Hose Reinforcement Material	Outside Diameter	Vacuum Pressure Rating	Hose I.D. (inch)
7392E-1500	523 In Stock	7280 In Stock	$8.92	FT	Hose Products Division	-40 °F	Water	N/A	n/a	152 mm	150 psi	Black	180 °F	Black	Synthetic Rubber	38.1 mm	0.72 lb/ft	Water	2 Plies of Textile with Wire Helix	1.9 inch	737 mm-Hg	1-1/2
7392E-2000	37 In Stock	2300 In Stock	$9.72	FT	Hose Products Division	-40 °F	Water	N/A	n/a	178 mm	150 psi	Black	180 °F	Black	Synthetic Rubber	2 inch	1.08 lb/ft	Water	2 Plies of Textile with Wire Helix	62 mm	29 Inch-Hg	2
7392E-2500	Quote Required	241 In Stock	$14.21	FT	Hose Products Division	-40 °F	Water	N/A	n/a	203 mm	150 psi	Black	82 °C	Synthetic Rubber	Synthetic Rubber	2-1/2 inch	2.16 kg/m	Water	2 Plies of Textile with Wire Helix	74.9 mm	29 Inch-Hg	2-1/2
7392E-3000	3 In Stock	2413 In Stock	$14.42	FT	Hose Products Division	-40 °F	Water	N/A	n/a	10 inch	150 psi	Black	180 °F	Synthetic Rubber	Synthetic Rubber	3 inch	2.68 kg/m	Water	2 Plies of Textile with Wire Helix	88.9 mm	29 Inch-Hg	3
7392E-4000	Quote Required	1490 In Stock	$21.07	FT	Hose Products Division	-40 °F	Water	N/A	n/a	22 inch	150 psi	Black	180 °F	Black	Synthetic Rubber	4 inch	3.62 kg/m	Water	2 Plies of Textile with Wire Helix	115.1 mm	29 Inch-Hg	4
7392E-6000	Quote Required	Quote Required	TBD		Hose Products Division	-40 °F	Water	N/A	n/a	711 mm	150 psi	Black	180 °F	Synthetic Rubber	Synthetic Rubber	152.4 mm	5.53 kg/m	Water	2 Plies of Textile with Wire Helix	168.3 mm	29 Inch-Hg	6
