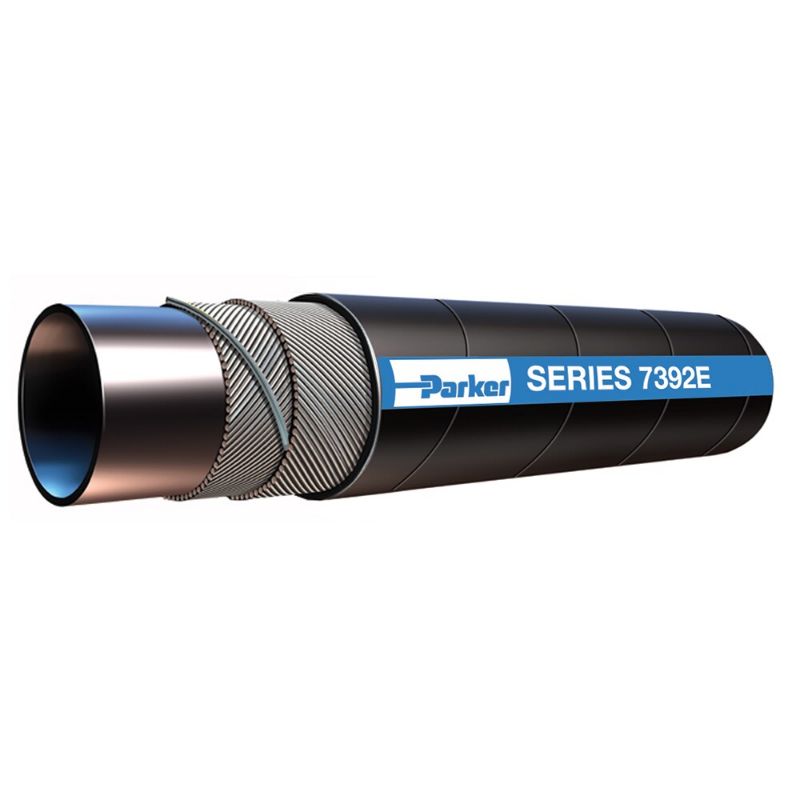

Parker 7392E-4000 - Standard Duty Water Suction Hose, Series 7392E

Standard Duty Water Suction Hose is designed for water transfer in applications to 180°F and 150 psi, Series 7392E

AFP Availability:	Quote Required
Partner Available:	1199 In Stock

Brand Parker

Part No. 7392E-4000

$22.23/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	115.1 mm
Inside Diameter	4 inch	Vacuum Pressure Rating	29 Inch-Hg
Weight	3.62 kg/m	Maximum Operating Pressure	150 psi
Maximum Operating Temperature	180 °F	Cover Color	Black
Division	Hose Products Division	Design Factor	n/a
Hose Inner Tube Material	Black	Media	Water
Minimum Bend Radius	22 inch	Specifications Met	n/a
Hose Reinforcement Material	2 Plies of Textile with Wire Helix	Cover Material	Synthetic Rubber
Application	Water	Minimum Operating Temperature	-40 °F
Hose I.D. (inch)	4
