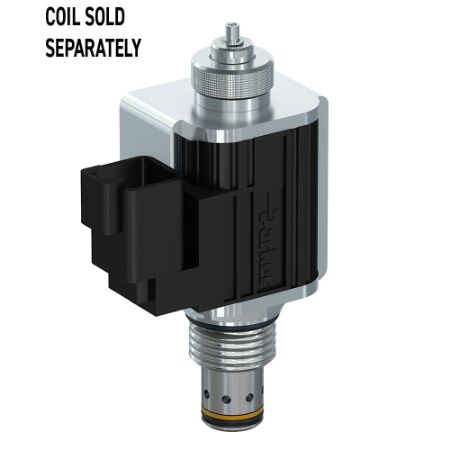

Solenoid Operated Unloading Relief Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s solenoid operated unloading relief valve provides cost and space savings by combining a solenoid operated unloader valve and a system relief into a single cartridge valve and cavity. By utilizing a pilot operated design, this valve is capable of handling flows up to 60 lpm (16 gpm) and pressures as high as 280 bar (4000 psi). This valve is ideal for unloading circuits and allows pumps to unload to the tank at low pressure when no current is applied to the coil, therefore reducing power consumption and heat generation. Once current is applied, the valve will act as standard relief and can be used in several applications within mobile or industrial hydraulic systems.
Markets:
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Two functions in one valve
• Integral 250 micron pilot flow filter
• All external parts zinc plated
• Factory set relief pressure or adjustable option
• Hardened, precision ground parts for durability
Applications:
• Pump unloader
• System relief
Additional Technical Insight:
Parker’s AS04G2 provides cost and space savings by combining a solenoid operated unloader valve and a system relief into a single 10-2 cavity. By utilizing a pilot operated design, the AS04G2 is capable of handling flows up to 16 GPM and pressures as high as 4000 psi. When no current is applied to the coil, pump flow is allowed to unload to the tank at low pressure therefore reducing power consumption and heat generation. Once current is applied, the valve will prevent the pump from unloading to tank as long as the pressure remains below the mechanically set maximum pressure.
Parker HCS offers four standard pressure settings, and can provide customer specific tamper-proof fixed settings upon request. The full 100-4000 psi max pressure range can be achieved by ordering any of the pre-set adjustable versions and adjusting the setting in the application.
The common cavity design enables this valve to offer design flexibility in many applications. It can be integrated into manifolds, mounted in-line with standard line-bodies, or sandwich mount into a D03 stack using our Cartpak BD03-PT stackable body. By utilizing Parker’s IP69K Super Coil technology, the AS04G2 can be used in a wide range of environmental conditions.
Read More...Markets:
• Agriculture
• Construction
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Two functions in one valve
• Integral 250 micron pilot flow filter
• All external parts zinc plated
• Factory set relief pressure or adjustable option
• Hardened, precision ground parts for durability
Applications:
• Pump unloader
• System relief
Additional Technical Insight:
Parker’s AS04G2 provides cost and space savings by combining a solenoid operated unloader valve and a system relief into a single 10-2 cavity. By utilizing a pilot operated design, the AS04G2 is capable of handling flows up to 16 GPM and pressures as high as 4000 psi. When no current is applied to the coil, pump flow is allowed to unload to the tank at low pressure therefore reducing power consumption and heat generation. Once current is applied, the valve will prevent the pump from unloading to tank as long as the pressure remains below the mechanically set maximum pressure.
Parker HCS offers four standard pressure settings, and can provide customer specific tamper-proof fixed settings upon request. The full 100-4000 psi max pressure range can be achieved by ordering any of the pre-set adjustable versions and adjusting the setting in the application.
The common cavity design enables this valve to offer design flexibility in many applications. It can be integrated into manifolds, mounted in-line with standard line-bodies, or sandwich mount into a D03 stack using our Cartpak BD03-PT stackable body. By utilizing Parker’s IP69K Super Coil technology, the AS04G2 can be used in a wide range of environmental conditions.
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Body Material | Minimum Operating Temperature | Maximum Operating Pressure | Division | Division | Configuration | Flow Direction | For Fluid Type | Valve Material | Filter Efficiency Rating | Maximum Kinematic Viscosity | Maximum Operating Temperature | Weight | Adjustment Mechanism | Operating Temperature | Cavity Size | Installation Torque | Coil Type | Coil Nut Tightening Torque | Maximum Flow Rate | Flow Rate | Function | Leak Rate | Actuation Type | Reseat Pressure | Maximum Tank Pressure | Pressure Control Range | Standard Setting Pressure | Maximum Inlet Pressure Rating | Minimum Pressure Differential | Seal Material | Adjustment Mechanism | Standard Setting Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AS04G2T14N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Tamper Resistant | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2000 | 4000 | 100 | Nitrile | Tamper Resistant | 2000 PSI, 140 BAR | |||
| AS04G2T14V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Tamper Resistant | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2000 | 4000 | 100 | Fluorocarbon | Tamper Resistant | 2000 PSI, 140 BAR | |||
| AS04G2T20N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Tamper Resistant | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2900 | 4000 | 100 | Nitrile | Tamper Resistant | 2900 PSI, 200 BAR | |||
| AS04G2T20V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Tamper Resistant | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2900 | 4000 | 100 | Fluorocarbon | Tamper Resistant | 2900 PSI, 200 BAR | |||
| AS04G2T22N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Tamper Resistant | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 3200 | 4000 | 100 | Nitrile | Tamper Resistant | 3200 PSI, 220 BAR | |||
| AS04G2T22V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Tamper Resistant | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 3200 | 4000 | 100 | Fluorocarbon | Tamper Resistant | 3200 PSI, 220 BAR | |||
| AS04G2T27N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Tamper Resistant | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 4000 | 100 | Nitrile | Tamper Resistant | 4000 PSI, 276 BAR | |||
| AS04G2T27V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Tamper Resistant | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 4000 | 100 | Fluorocarbon | Tamper Resistant | 4000 PSI, 276 BAR | |||
| AS04G2TN | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Tamper Resistant | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 1800 | 100 | Nitrile | Tamper Resistant | 1800 PSI, 124 BAR | |||
| AS04G2TV | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Tamper Resistant | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 1800 | 4000 | 100 | Fluorocarbon | Tamper Resistant | 1800 PSI, 124 BAR | |||
| AS04G2Z14N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Push and Turn | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2000 | 4000 | 100 | Nitrile | Push and Turn | 2000 PSI, 140 BAR | |||
| AS04G2Z14V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Push and Turn | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2000 | 4000 | 100 | Fluorocarbon | Push and Turn | 2000 PSI, 140 BAR | |||
| AS04G2Z20N | Quote Required | $0.01 | EA | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Push and Turn | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2900 | 4000 | 100 | Nitrile | Push and Turn | 2900 PSI, 200 BAR | ||
| AS04G2Z20V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Push and Turn | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 2900 | 4000 | 100 | Fluorocarbon | Push and Turn | 2900 PSI, 200 BAR | |||
| AS04G2Z22N | Quote Required | TBD | EA | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Push and Turn | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 3200 | 4000 | 100 | Nitrile | Push and Turn | 3200 PSI, 220 BAR | ||
| AS04G2Z22V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Push and Turn | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 3200 | 4000 | 100 | Fluorocarbon | Push and Turn | 3200 PSI, 220 BAR | |||
| AS04G2Z27N | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Push and Turn | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 4000 | 100 | Nitrile | Push and Turn | 4000 PSI, 276 BAR | |||
| AS04G2Z27V | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Push and Turn | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 4000 | 100 | Fluorocarbon | Push and Turn | 4000 PSI, 276 BAR | |||
| AS04G2ZN | Quote Required | TBD | Nitrile | n/a | -30 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 250 | 0.98 | Push and Turn | -30 to 250 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 4000 | 1800 | 100 | Nitrile | Push and Turn | 1800 PSI, 124 BAR | |||
| AS04G2ZV | Quote Required | TBD | Fluorocarbon | n/a | -15 | 4000 | Hydraulic Valve Systems Division | Hydraulic Systems Division | Normally Open (NO) | Nose to Side (1-2) | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 400 | 0.98 | Push and Turn | -15 to 400 | C10-2 | 37 | 5/8" Super Coil High Watt (CAP) | Finger Tight | 16 | 16 | Unloading Relief Valve | 5 cm3/min for Every 100 Psi of Setting | Solenoid | 90% of Cracking Pressure | 1000 | 100 to 4000 | 1800 | 4000 | 100 | Fluorocarbon | Push and Turn | 1800 PSI, 124 BAR |
