*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

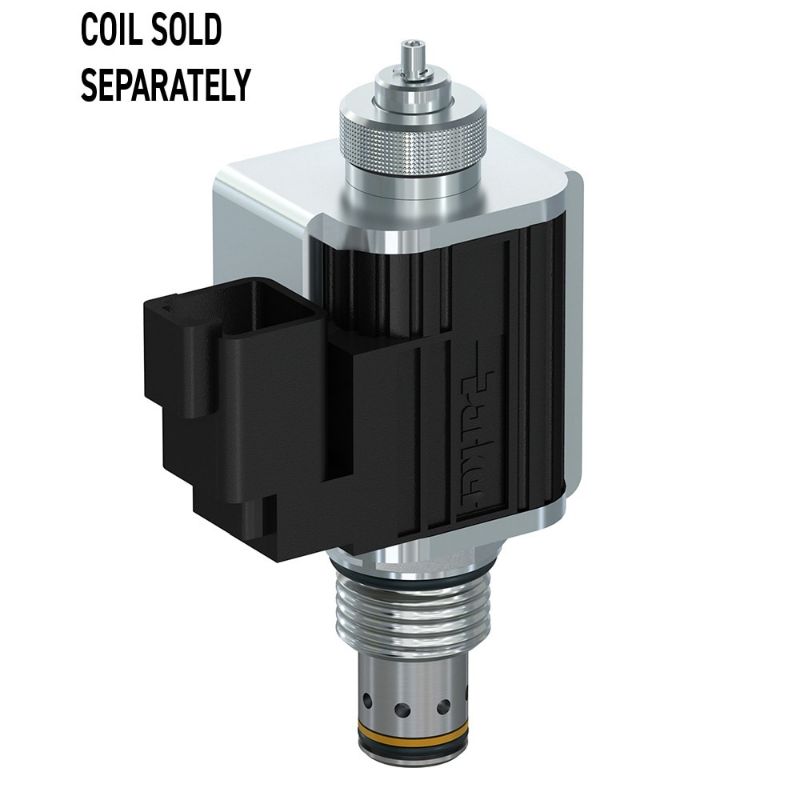

Parker AS04G2Z22N - Solenoid Operated Unloading Relief Valve

Note: This product is no longer available - please refer to the “Related Documents" or "Related products" section of this page for details on any alternative products, or contact us for further assistance.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. AS04G2Z22N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Body Material	n/a	Minimum Operating Temperature	-30
Maximum Operating Pressure	4000	Division	Hydraulic Valve Systems Division
Division	Hydraulic Systems Division	Configuration	Normally Open (NO)
Flow Direction	Nose to Side (1-2)	For Fluid Type	Synthetic Hydraulic Fluids
Valve Material	Steel (all parts)	Filter Efficiency Rating	SAE Class 4
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Temperature	250
Weight	0.98	Operating Temperature	-30 to 250
Cavity Size	C10-2	Installation Torque	37
Coil Type	5/8" Super Coil High Watt (CAP)	Coil Nut Tightening Torque	Finger Tight
Maximum Flow Rate	16	Flow Rate	16
Function	Unloading Relief Valve	Leak Rate	5 cm3/min for Every 100 Psi of Setting
Actuation Type	Solenoid	Reseat Pressure	90% of Cracking Pressure
Adjustment Mechanism	Push and Turn	Maximum Tank Pressure	1000
Pressure Control Range	100 to 4000	Standard Setting Pressure	3200
Maximum Inlet Pressure Rating	4000	Minimum Pressure Differential	100
Seal Material	Nitrile	Adjustment Mechanism	Push and Turn
Standard Setting Pressure	3200 PSI, 220 BAR
