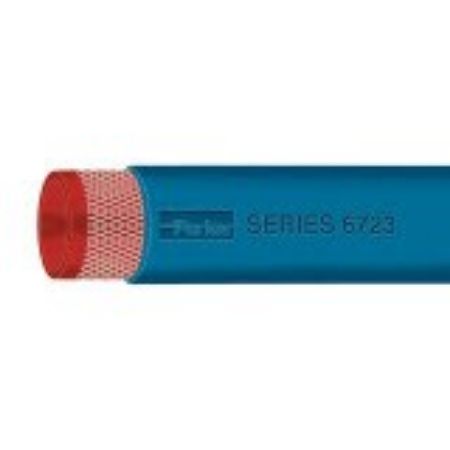

Silicone Heavy Wall High Temperature Heater Hose, Series 6723

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's Series 6723 Silicone Heavy Wall High Temperature Heater Hose provides excellent service across a wide variety of coolants and multiple engine heater and radiator applications. The silicone construction resists chemicals, aging, cold leaks, cracking, delamination, heat, ozone and peeling to maximize performance. The thick hose wall provides robust service, is flexible for easy routing and installation and resists the elevated temperatures common to engine compartments.

Markets:

• General Industrial

• Transportation

Features/Benefits:

• Tube: Red silicone for superior heat resistance to 350°F.

• Reinforcement: Multiple textile plies for strength and kink resistance.

• Cover: Blue silicone for superior temperature resistance and easy identification.

Applications:

- media

• Coolant

• Hot water

- usage

• Coolant transfer in heater and coolant circuits

• Agricultural equipment

• Buses

• Construction equipment

• Off-road equipment

• Trucks

Industry Standards:

• SAE J20R3 Class A

Safety/Technical:

• Design Factor: 3:1

• Nonconductive

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Division	Outside Diameter	Maximum Operating Pressure	Cover Color	Minimum Operating Temperature	Inside Diameter	Weight	Package Type	Application	Media	Cover Material	Cover Structure	Maximum Operating Temperature	Specifications Met	Minimum Bend Radius	Minimum Burst Pressure	Hose Inner Tube Material	Hose Reinforcement Material	Hose I.D. (inch)	Standard Pack Qty (ft)	Minimum Burst Pressure (psi)
6723-0250250	Quote Required	Quote Required	TBD		Hose Products Division	0.640	83	Blue	-65	1/4	0.11	Reel	Engine	Coolants	Silicone	Glossy	350	SAE J20R3	0.4	250	Brick Red	Multiple Plies of High Temperature Textile	1/4	250	250
6723-0375250	Quote Required	Quote Required	TBD		Hose Products Division	0.770 inch	83 psi	Blue	-54 °C	9.5 mm	0.15 lb/ft	Reel	Silicone Coolant	Coolants	Silicone	Glossy	350 °F	SAE J20R3	0.6 inch	17.2 bar	Brick Red	Multiple Plies of High Temperature Textile	3/8	250	250
6723-0625050	Quote Required	100 In Stock	$11.85	FT	Hose Products Division	1.020 inch	6 bar	Blue	-65 °F	15.9 mm	0.27 lb/ft	Carton	Engine	Water	Silicone	Glossy	350 °F	SAE J20R3	38.1 mm	250 psi	Brick Red	Multiple Plies of High Temperature Textile	5/8	50	250
6723-0625100	Quote Required	Quote Required	TBD		Hose Products Division	25.8 mm	83 psi	Blue	-65 °F	15.9 mm	0.12 kg	Carton	Engine	Water	Silicone	Glossy	176 °C	SAE J2387	38.1 mm	250 psi	Silicone	Multiple Plies of High Temperature Textile	5/8	100	250
6723-0750050	Quote Required	50 In Stock	$12.98	FT	Hose Products Division	29 mm	67 psi	Blue	-54 °C	3/4 inch	0.13 kg	Carton	Silicone Coolant	Water	Silicone	Glossy	176 °C	SAE J2387	60.3 mm	200 psi	Brick Red	Multiple Plies of High Temperature Textile	3/4	50	200
6723-0750100	Quote Required	42 In Stock	$10.50	FT	Hose Products Division	1.140 inch	5 bar	Blue	-54 °C	3/4 inch	0.43 kg/m	Carton	Silicone Coolant	Water	Silicone	Glossy	350 °F	SAE J20R3	60.3 mm	13.8 bar	Silicone	Multiple Plies of High Temperature Textile	3/4	100	200
6723-1000050	Quote Required	37 In Stock	$19.58	FT	Hose Products Division	1.390 inch	4 bar	Blue	-65 °F	25.4 mm	0.39 lb/ft	Carton	Engine	Coolants	Silicone	Glossy	176 °C	SAE J20R3	4 inch	12.1 bar	Silicone	Multiple Plies of High Temperature Textile	1	50	175
