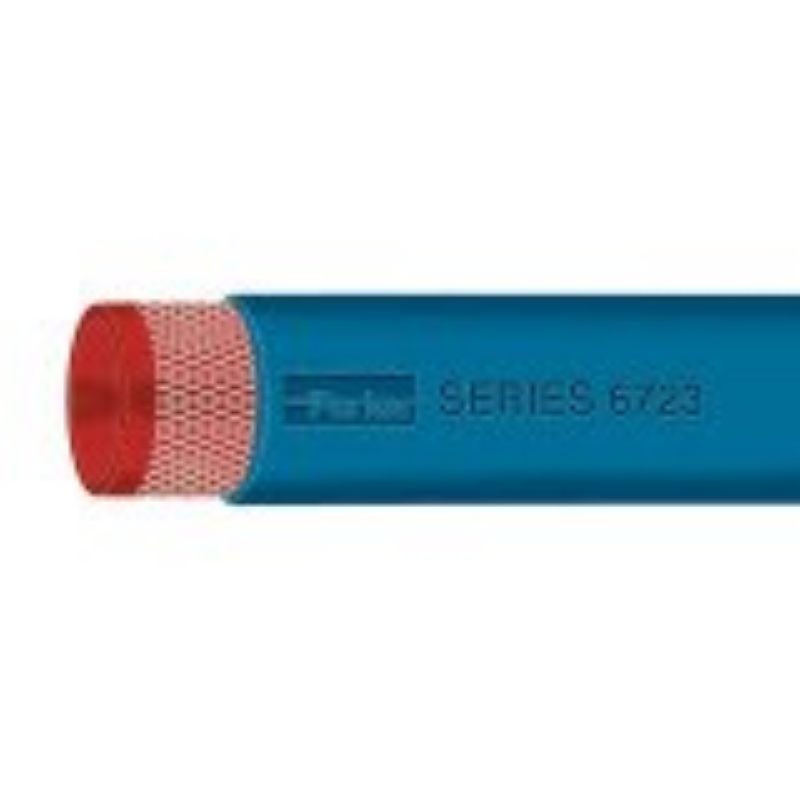

Parker 6723-0750100 - Silicone Heavy Wall High Temperature Heater Hose, Series 6723

Silicone Heavy Wall High Temperature Heater Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 83 psi, Series 6723

AFP Availability:	Quote Required
Partner Available:	42 In Stock

Brand Parker

Part No. 6723-0750100

$11.13/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Color	Blue
Inside Diameter	3/4 inch	Cover Structure	Glossy
Outside Diameter	1.140 inch	Maximum Operating Pressure	5 bar
Minimum Burst Pressure	13.8 bar	Media	Water
Maximum Operating Temperature	350 °F	Division	Hose Products Division
Application	Silicone Coolant	Minimum Operating Temperature	-54 °C
Hose Inner Tube Material	Silicone	Package Type	Carton
Hose Reinforcement Material	Multiple Plies of High Temperature Textile	Weight	0.43 kg/m
Minimum Bend Radius	60.3 mm	Cover Material	Silicone
Specifications Met	SAE J20R3	Standard Pack Qty (ft)	100
Hose I.D. (inch)	3/4	Minimum Burst Pressure (psi)	200

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
