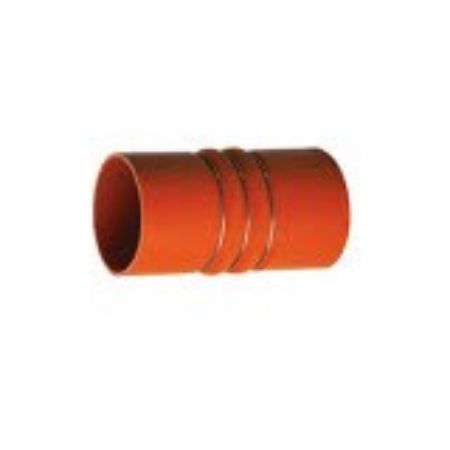

Silicone Extreme High Temperature Charge Air Cooler Hose, Series 6823
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's Series 6823 Silicone Extreme High Temperature Charge Air Cooler Hose provides excellent service in managing the flow of the hot air from the engine to the exhaust system, keeping the engine from overheating and stabilizing the system by compensating for vibrations. The stainless steel retaining rings are heat resistant and corrosion resistant for maximum performance.
Markets:
• General Industrial
• Transportation
Features/Benefits:
• Tube: Red silicone for superior heat resistance to 500°F.
• Reinforcement: Multiple high temperature aramid plies for strength with external stainless steel retaining rings for stability.
• Cover: Red silicone for superior temperature resistance and easy identification.
Applications:
- media
• Hot air
- usage
• Hot air transfer in engine cooling systems
• Agricultural equipment
• Buses
• Construction equipment
• Off-road equipment
• Trucks
Safety/Technical:
• Design Factor: 3:1
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Specifications Met | Media | Cover Material | Hose Reinforcement Material | Outside Diameter | Maximum Operating Pressure | Weight | Minimum Bend Radius | Inside Diameter | Division | Application | Hose Inner Tube Material | Maximum Operating Temperature | Minimum Burst Pressure | Standard Package Quantity | Hose I.D. (inch) | Minimum Burst Pressure (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6823-30006000 | Quote Required | 6 In Stock | $60.23 | EA | -65 | SAE J20R5 | Air (Hot Air) | Silicone | 4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings) | 3.220 | 80 | 0.37 | n/a | 3 | Hose Products Division | Engine | Brick Red | 500 | 80 | 6 x 6-in lg | 3 | 80 | |
| 6823-35006000 | Quote Required | TBD | -65 | SAE J20R5 | Air (Hot Air) | Silicone | 4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings) | 3.720 | 80 | 0.43 | n/a | 3-1/2 | Hose Products Division | Engine | Brick Red | 500 | 80 | 6 x 6-in lg | 3-1/2 | 80 | |||
| 6823-40006000 | Quote Required | 36 In Stock | $71.03 | EA | -65 | SAE J20R5 | Air (Hot Air) | Silicone | 4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings) | 4.220 | 80 | 0.55 | n/a | 4 | Hose Products Division | Engine | Brick Red | 500 | 80 | 6 x 6-in lg | 4 | 80 | |
| 6823-40008000 | Quote Required | 4 In Stock | $77.52 | EA | -65 | SAE J20R5 | Air (Hot Air) | Silicone | 4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings) | 4.220 | 80 | 0.74 | n/a | 4 | Hose Products Division | Engine | Brick Red | 500 | 80 | 6 x 8-in lg | 4 | 80 |
