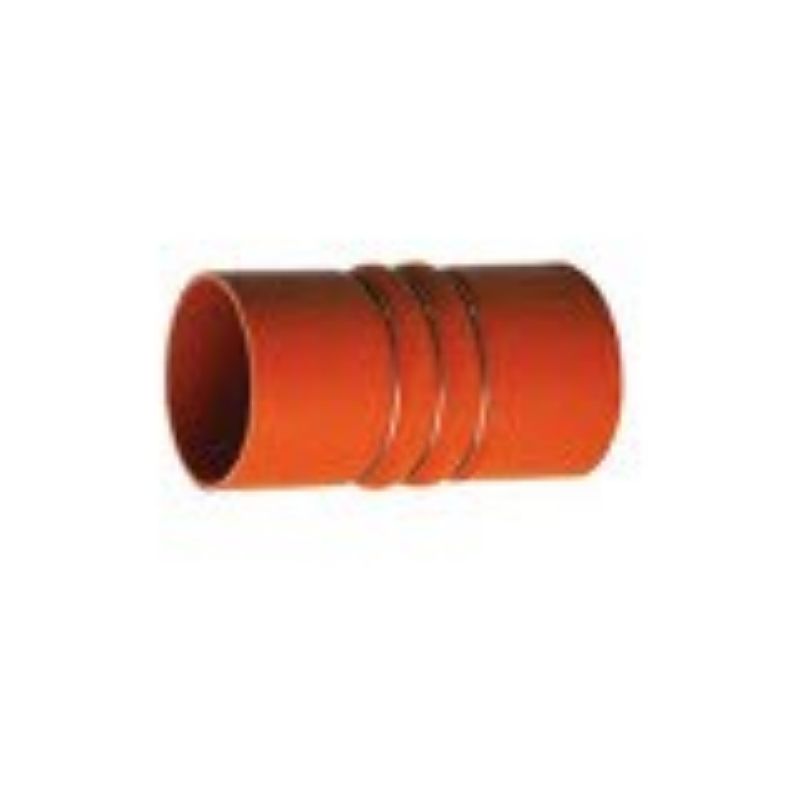

Parker 6823-30006000 - Silicone Extreme High Temperature Charge Air Cooler Hose, Series 6823

Silicone Extreme High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the hot exhaust air from the charging system of heavy duty engine applications to 500°F and 25 psi, Series 6823

AFP Availability:	Quote Required
Partner Available:	2 Limited Stock

Brand Parker

Part No. 6823-30006000

$63.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	80
Outside Diameter	3.220	Hose Reinforcement Material	4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings)
Weight	0.37	Division	Hose Products Division
Maximum Operating Temperature	500	Inside Diameter	3
Hose Inner Tube Material	Brick Red	Media	Air (Hot Air)
Minimum Burst Pressure	80	Minimum Bend Radius	n/a
Application	Engine	Cover Material	Silicone
Specifications Met	SAE J20R5	Minimum Operating Temperature	-65
Standard Package Quantity	6 x 6-in lg	Hose I.D. (inch)	3
Minimum Burst Pressure (psi)	80

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
