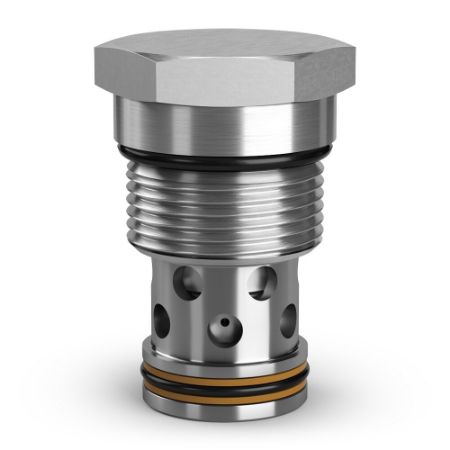

Side to Nose Check Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s dynamic side-to-nose style check valves are designed for unique applications where “reverse” check flow is required and flows from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi) are needed. These valves can be used virtually anywhere a standard check valve would be utilized across several markets within mobile hydraulics, industrial hydraulics, and manufacturing while allowing more flexibility within manifold and hydraulic circuit design.
Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Hardened, precision ground parts for durability
• Fully guided poppet for smooth operation
• Side to nose design for ease of manifold design
• All external parts zinc plated
Applications:
• Check valve applications that require opposite porting
Read More...Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile
Features/Benefits:
• Hardened, precision ground parts for durability
• Fully guided poppet for smooth operation
• Side to nose design for ease of manifold design
• All external parts zinc plated
Applications:
• Check valve applications that require opposite porting
| Action | Part No. | Availability | Partner Available | Price | UOM | Minimum Operating Temperature | Maximum Operating Pressure | Body Material | Division | Division | For Fluid Type | Valve Material | Filter Efficiency Rating | Maximum Kinematic Viscosity | Flow Rate | Weight | Maximum Operating Temperature | Maximum Flow Rate | Actuation Type | Cavity Size | Maximum Inlet Pressure Rating | Seal Material | Operating Temperature | Cracking Pressure | Flow Direction | Function | Leak Rate | Installation Torque | Minimum Operating Pressure | Seal Material | Cracking Pressure | Maximum Flow Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CVH104P | Quote Required | 1 Limited Stock | $0.01 | EA | -35 | 350 | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5 | 0.18 | 200 | 5 | Pressure Sensing | C10-2 | 5000 | D-Ring (Standard) | -35 to 200 | 45 | 2-1 Free Flow | Side to Nose Check | 2 drops/min @ 5000 Psi (350 bar) | 51 to 55 | 5000 | D-Ring (Standard) | 45 PSI, 3.1 BAR | 5 GAL/MIN, 34 L/MIN | |
| CVH104P75 | Quote Required | TBD | -35 | 350 | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5 | 0.18 | 200 | 5 | Pressure Sensing | C10-2 | 5000 | D-Ring (Standard) | -35 to 200 | 75 | 2-1 Free Flow | Side to Nose Check | 2 drops/min @ 5000 Psi (350 bar) | 51 to 55 | 5000 | D-Ring (Standard) | 75 PSI, 5.2 BAR | 5 GAL/MIN, 34 L/MIN | |||
| CVH104P75N | Quote Required | TBD | -30 | 350 | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5 | 0.18 | 250 | 5 | Pressure Sensing | C10-2 | 5000 | Nitrile | -30 to 250 | 75 | 2-1 Free Flow | Side to Nose Check | 2 drops/min @ 5000 Psi (350 bar) | 51 to 55 | 5000 | Nitrile | 75 PSI, 5.2 BAR | 5 GAL/MIN, 34 L/MIN | |||
| CVH104P75V | Quote Required | TBD | -15 | 350 | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5 | 0.18 | 400 | 5 | Pressure Sensing | C10-2 | 5000 | Fluorocarbon | -15 to 400 | 75 | 2-1 Free Flow | Side to Nose Check | 2 drops/min @ 5000 Psi (350 bar) | 51 to 55 | 5000 | Fluorocarbon | 75 PSI, 5.2 BAR | 5 GAL/MIN, 34 L/MIN | |||
| CVH104PN | Quote Required | TBD | -30 | 350 | n/a | Hydraulic Valve Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 5 | 0.18 | 250 | 5 | Pressure Sensing | C10-2 | 5000 | Nitrile | -30 to 250 | 45 | 2-1 Free Flow | Side to Nose Check | 2 drops/min @ 5000 Psi (350 bar) | 51 to 55 | 5000 | Nitrile | 45 PSI, 3.1 BAR | 5 GAL/MIN, 34 L/MIN | |||
| CVH104PV | Quote Required | TBD | -26 °C | 350 bar | n/a | Hydraulic Cartridge Systems Division | Hydraulic Systems Division | Synthetic Hydraulic Fluids | Steel | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 34 L/min | 0.18 lb | 204 °C | 5 Gal/min | Pressure Sensing | C10-2 | 350 bar | Fluorocarbon | -15 to 400 °F | 45 psi | 1-2 Checked | Side to Nose Check | 2 | 69 to 75 Nm | 5000 psi | Fluorocarbon | 45 PSI, 3.1 BAR | 5 GAL/MIN, 34 L/MIN | |||
| D06C2-10.0N | Quote Required | TBD | -30 °F | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Hardened Steel (all operating parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 500 L/min | 0.26 kg | 250 °F | 132 Gal/min | Pressure Sensing | C16-2 | 420 bar | Nitrile | -30 to 250 °F | 10 bar | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 lb-ft | 6000 psi | Nitrile | 145 PSI, 10 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-10.0V | Quote Required | TBD | -15 °F | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Mineral-based Hydraulic Fluids | Hardened Steel (all operating parts) | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | 132 Gal/min | 0.26 kg | 400 °F | 132 Gal/min | Pressure Sensing | C16-2 | 420 bar | Fluorocarbon | -26 to 204 °C | 10 bar | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 lb-ft | 6000 psi | Fluorocarbon | 145 PSI, 10 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-2.5N | Quote Required | TBD | -30 °F | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Steel (all parts) | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | 500 L/min | 0.57 lb | 121 °C | 500 L/min | Pressure Sensing | C16-2 | 420 bar | Nitrile | -30 to 250 °F | 2.5 bar | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 lb-ft | 6000 psi | Nitrile | 36 PSI, 2.5 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-2.5V | Quote Required | TBD | -26 °C | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Mineral-based Hydraulic Fluids | Hardened Steel (all operating parts) | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | 500 L/min | 0.26 kg | 400 °F | 132 Gal/min | Pressure Sensing | C16-2 | 420 bar | Fluorocarbon | -26 to 204 °C | 36 psi | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 lb-ft | 6000 psi | Fluorocarbon | 36 PSI, 2.5 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-3.4N | Quote Required | TBD | -30 | 420 | n/a | Hydraulic Valve Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 132 | 0.57 | 250 | 132 | Pressure Sensing | C16-2 | 6000 | Nitrile | -30 to 250 | 50 | 2-1 Free Flow | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 | 6000 | Nitrile | 50 PSI, 3.4 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-3.4V | Quote Required | TBD | -15 °F | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 500 L/min | 0.57 lb | 204 °C | 132 Gal/min | Pressure Sensing | C16-2 | 6000 psi | Fluorocarbon | -26 to 204 °C | 50 psi | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 100 Nm | 6000 psi | Fluorocarbon | 50 PSI, 3.4 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-6.9N | Quote Required | TBD | -34 °C | 420 bar | n/a | Hydraulic Cartridge Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Steel (all parts) | ISO 4406 18/16/13 | 45-2000 SSU (6 to 420 cSt) | 500 L/min | 0.26 kg | 121 °C | 132 Gal/min | Pressure Sensing | C16-2 | 420 bar | Nitrile | -30 to 250 °F | 100 psi | 1-2 Checked | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 lb-ft | 6000 psi | Nitrile | 100 PSI, 6.9 BAR | 132 GAL/MIN, 500 L/MIN | |||
| D06C2-6.9V | Quote Required | TBD | -15 | 420 | n/a | Hydraulic Valve Systems Division | Mobile Hydraulic Systems Division Europe | Synthetic Hydraulic Fluids | Steel (all parts) | SAE Class 4 | 45-2000 SSU (6 to 420 cSt) | 132 | 0.57 | 400 | 132 | Pressure Sensing | C16-2 | 6000 | Fluorocarbon | -15 to 400 | 100 | 2-1 Free Flow | Side to Nose Check | 3 drops/min @ 6000 Psi (420 bar) | 74 | 6000 | Fluorocarbon | 100 PSI, 6.9 BAR | 132 GAL/MIN, 500 L/MIN |
