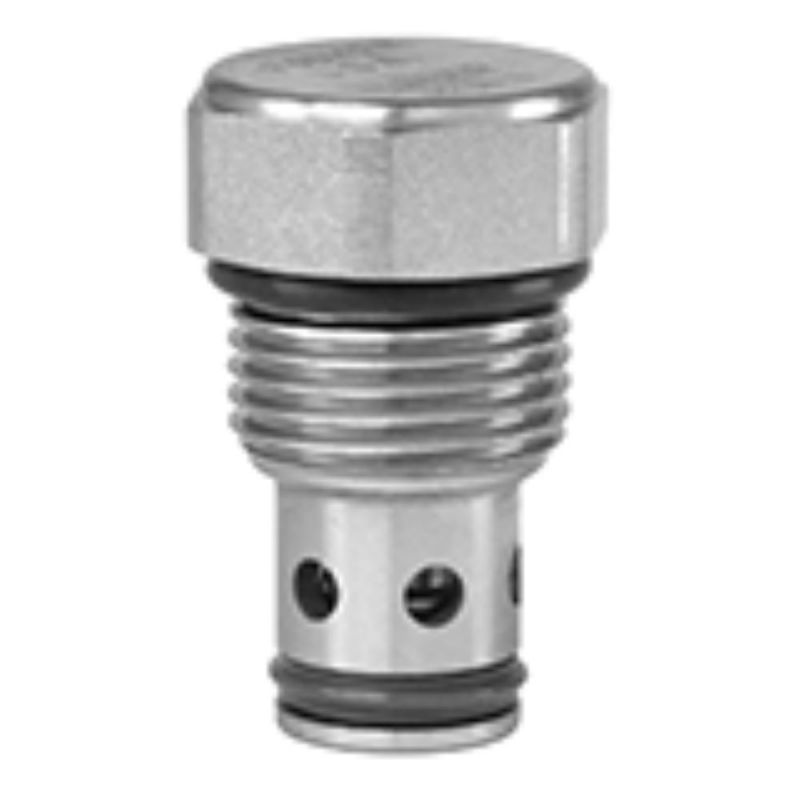

Parker CVH104P - Side to Nose Check Valves

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.

Availability:	Quote Required
Partner Available:	1 Limited Stock

Brand Parker

Part No. CVH104P

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Operating Temperature	-35
Maximum Operating Pressure	350	Body Material	n/a
Division	Hydraulic Valve Systems Division	Division	Hydraulic Systems Division
For Fluid Type	Synthetic Hydraulic Fluids	Valve Material	Steel (all parts)
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	5	Weight	0.18
Maximum Operating Temperature	200	Maximum Flow Rate	5
Actuation Type	Pressure Sensing	Cavity Size	C10-2
Maximum Inlet Pressure Rating	5000	Seal Material	D-Ring (Standard)
Operating Temperature	-35 to 200	Cracking Pressure	45
Flow Direction	2-1 Free Flow	Function	Side to Nose Check
Leak Rate	2 drops/min @ 5000 Psi (350 bar)	Installation Torque	51 to 55
Minimum Operating Pressure	5000	Seal Material	D-Ring (Standard)
Cracking Pressure	45 PSI, 3.1 BAR	Maximum Flow Rate	5 GAL/MIN, 34 L/MIN
