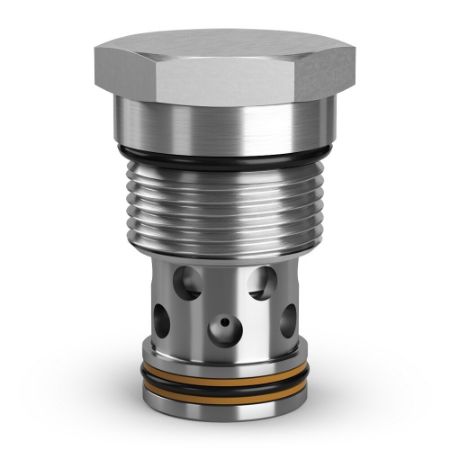

Side to Nose Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s dynamic side-to-nose style check valves are designed for unique applications where “reverse” check flow is required and flows from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi) are needed. These valves can be used virtually anywhere a standard check valve would be utilized across several markets within mobile hydraulics, industrial hydraulics, and manufacturing while allowing more flexibility within manifold and hydraulic circuit design.

Markets:
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile

Features/Benefits:
• Hardened, precision ground parts for durability
• Fully guided poppet for smooth operation
• Side to nose design for ease of manifold design
• All external parts zinc plated

Applications:
• Check valve applications that require opposite porting

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	Body Material	Minimum Operating Pressure	Operating Temperature	Maximum Flow Rate	Leak Rate	Actuation Type	Division	Flow Rate	Installation Torque	Minimum Operating Temperature	Flow Direction	Maximum Inlet Pressure Rating	Function	Cracking Pressure	Maximum Kinematic Viscosity	Seal Material	Weight	Valve Material	Maximum Operating Pressure	Filter Efficiency Rating	Cavity Size	Maximum Operating Temperature	For Fluid Type	Division	Seal Material	Cracking Pressure	Maximum Flow Rate
	CVH104P	Quote Required	1 Limited Stock	$0.01/each	n/a	5000	-35 to 200	5	2 drops/min @ 5000 Psi (350 bar)	Pressure Sensing	Hydraulic Systems Division	5	51 to 55	-35	2-1 Free Flow	5000	Side to Nose Check	45	45-2000 SSU (6 to 420 cSt)	D-Ring (Standard)	0.18	Steel (all parts)	350	SAE Class 4	C10-2	200	Synthetic Hydraulic Fluids	Hydraulic Valve Systems Division	D-Ring (Standard)	45 PSI, 3.1 BAR	5 GAL/MIN, 34 L/MIN
