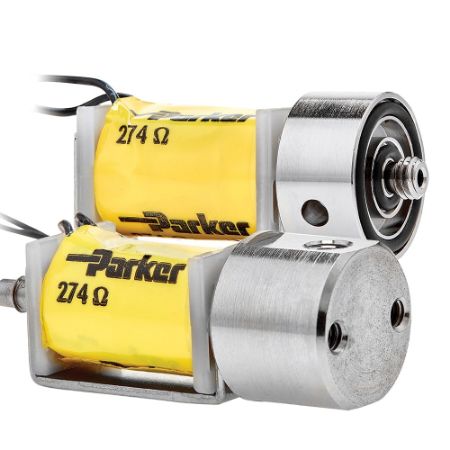

Series 11/25/26 - Miniature Solenoid Valve
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 11/25/26 miniature pneumatic solenoid valves are a robust and proven product with a reputation for reliable and consistent performance. These miniature solenoid valves are the preferred choice of major OEM's in the medical and analytical market. The Series 11 bodies are featured in brass or stainless steel. The Series 25 and 26 bodies are made from nickel-plated brass. The Series 11/25/26 have many customizable features in multiple pneumatic and electrical interface options. These valves are the ideal solution for medical applications requiring low out-gassing and a critical leak seal.
Markets
• Respiratory
• Patient Therapy
• Patient Monitoring
• Anesthesia
Features/Benefits
• Proven performance tested to 260 million life cycles
• Wide range of available electrical connections to simplify valve integration and control
• Manifold mount or barbed tube pneumatic configurations available for added system design flexibility
• Available Analytical and Oxygen Service Clean to minimize contamination
• RoHS compliant
Typical Applications
• Oxygen Conservers
• Oxygen Concentrators
• Compression Therapy
• Gas Chromatography
• Insufflators
• Medical & Analytical Gas Control
| Action | Part No. | Availability | Partner Available | Price | UOM | Seal Material | Maximum Operating Pressure | For Fluid Type | Configuration | Weight | Function | Maximum Operating Temperature | Actuation Type | Minimum Operating Temperature | Division | Operation Type | Control Method | Power Consumption | Flow Rate | Maximum Flow Rate | Max Order Quantity | Out of Stock Lead Time | Mounting Type | Body Material | Width | Height | Connection Type | Electrical Connection | Orifice Size | Thermal Compensation | Input Voltage | Standard Lead Time | Leak Rate | Shipping Weight | Cycles per Lifetime | Industry Application | Vacuum to Pressure Range | Length | Connection Size | Valve Configuration Type | Electrical Connection | Body/Elastomer Materials | Voltage (VDC) | Pneumatic Connection Stem | Pneumatic Body Connection | Application Pressure Requirement |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 991-000516-003 | Quote Required | TBD | EA | FKM | 25 psi | Gases | n/a | 60 g | 2-Way | 158 °F | Solenoid | 32 °F | Precision Fluidics Division | Electronic | Current or Voltage | 1.0 W | 18 SLPM | 18 SLPM | 9 | 40 | Mounting Screw | Brass 360 H02 | 0.63 inch | 0.67 inch | Barb | 18" Wire Leads | 1.27 mm | Non-Thermally Compensated | 5 VDC | 25 | < 0.016 cm3/min of Air | 0.4 | 202 Million | Oxygen Conservers and Concentrators | Vacuum to Pressure Rating | 51.7 mm | 5/64 inch Barb | 2-Way Normally Closed | 18" Wire Leads | Brass/FKM | 5 | None | 5/64" Barbs | 0-25 psi / .050" Orifice |
