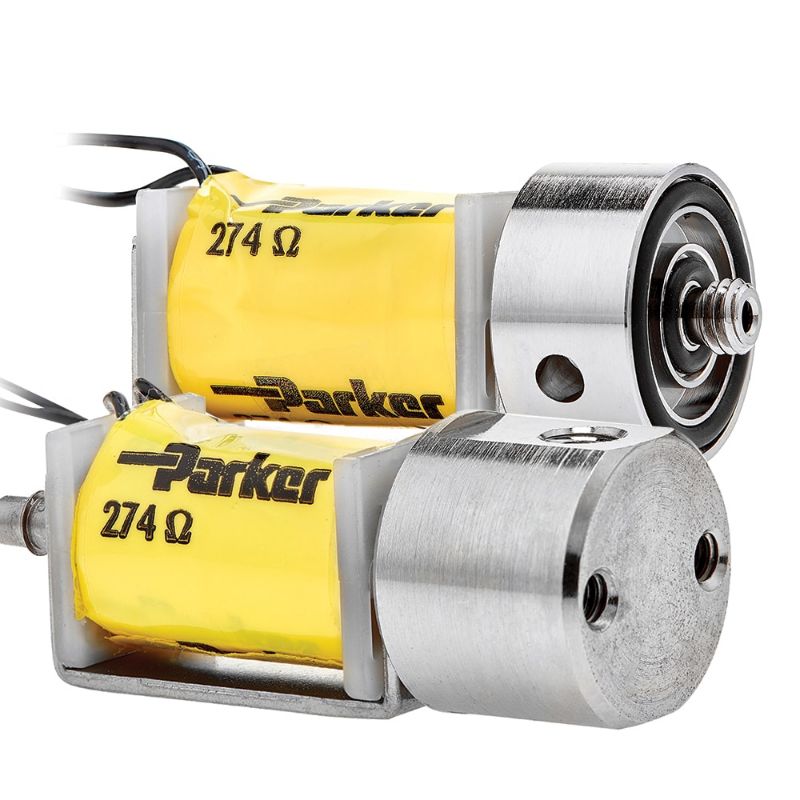

Parker 991-000516-003 - Series 11/25/26 - Miniature Solenoid Valve

Parker’s 11/25/26 miniature solenoid valves are designed for medical, analytical, and clinical devices that require reliable consistent performance with low outgassing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 991-000516-003

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	FKM
Maximum Operating Pressure	25 psi	For Fluid Type	Gases
Configuration	n/a	Weight	60 g
Function	2-Way	Maximum Operating Temperature	158 °F
Actuation Type	Solenoid	Minimum Operating Temperature	32 °F
Division	Precision Fluidics Division	Operation Type	Electronic
Control Method	Current or Voltage	Power Consumption	1.0 W
Flow Rate	18 SLPM	Maximum Flow Rate	18 SLPM
Max Order Quantity	9	Out of Stock Lead Time	40
Mounting Type	Mounting Screw	Body Material	Brass 360 H02
Width	0.63 inch	Height	0.67 inch
Connection Type	Barb	Electrical Connection	18" Wire Leads
Orifice Size	1.27 mm	Thermal Compensation	Non-Thermally Compensated
Input Voltage	5 VDC	Standard Lead Time	25
Leak Rate	< 0.016 cm3/min of Air	Shipping Weight	0.4
Cycles per Lifetime	202 Million	Industry Application	Oxygen Conservers and Concentrators
Vacuum to Pressure Range	Vacuum to Pressure Rating	Length	51.7 mm
Connection Size	5/64 inch Barb	Valve Configuration Type	2-Way Normally Closed
Electrical Connection	18" Wire Leads	Body/Elastomer Materials	Brass/FKM
Voltage (VDC)	5	Pneumatic Connection Stem	None
Pneumatic Body Connection	5/64" Barbs	Application Pressure Requirement	0-25 psi / .050" Orifice
