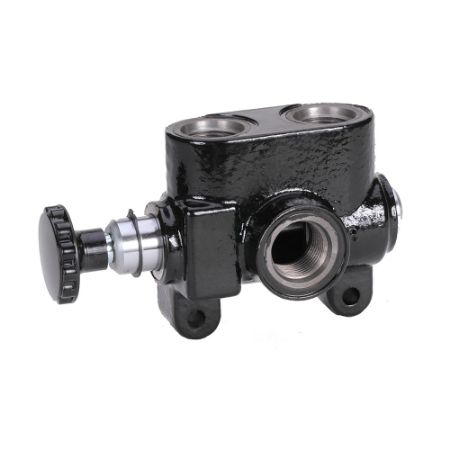

Selector Valve - S & H Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s S and SM accessory valves are two-position, three-way selector valves. They are designed for directing flow from one single pump to one, or the other of two separate hydraulic lines. An example of this is the operation of two single-acting cylinders, independent of each other.
Parker’s H and HM accessory valves are two-position, three-way selector valves. They are designed to be used with a three-position, four-way valve to provide a float or free-wheeling condition.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Chrome plated spool
• Pressure balanced spool
• High-tensile cast iron body
Applications:
• Suitable for various mobile applications
Read More...Parker’s H and HM accessory valves are two-position, three-way selector valves. They are designed to be used with a three-position, four-way valve to provide a float or free-wheeling condition.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Chrome plated spool
• Pressure balanced spool
• High-tensile cast iron body
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Weight | Maximum Flow Rate | Connection Size | For Fluid Type | Actuation Type | Maximum Operating Temperature | Seal Material | Function | Adjustment Mechanism | Body Material | Connection Type | Division | Maximum Operating Pressure | Minimum Operating Temperature | Port Size | Mounting | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H-12 | Quote Required | TBD | 5.4 lb | 30 | #12 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 3000 psi | -40 °F | SAE-12 | In-Line | Float Selector | |||
| H-75 | Quote Required | $256.50 | EA | 5.4 lb | 30 | 3/4" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 2000 psi | -40 °F | 3/4" NPT | In-Line | Float Selector | ||
| HM-38 | Quote Required | TBD | 2.3 lb | 10 | 3/8" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 2000 psi | -40 °F | 3/8-NPT | Manifold | Float Selector | |||
| HM-50 | Quote Required | TBD | 2.3 lb | 10 | 1/2" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 2000 psi | -40 °F | 1/2" NPT | Manifold | Float Selector | |||
| HM-8 | Quote Required | TBD | 2.3 lb | 10 | #8 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 3000 psi | -40 °F | SAE-8 | Manifold | Float Selector | |||
| S-10 | Quote Required | 2 Limited Stock | $175.50 | EA | 1.1 kg | 30 | #10 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 207 bar | -40 °F | SAE-10 | In-Line | Circuit Selector | |
| S-100 | Quote Required | 5 In Stock | $267.75 | EA | 2.4 kg | 60 | 1" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 138 bar | -40 °F | 1- 1-1/2" NPT | In-Line | Circuit Selector | |
| S-12 | Quote Required | 15 In Stock | $229.50 | EA | 2.4 kg | 30 | #12 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 3000 psi | -40 °F | SAE-12 | In-Line | Circuit Selector | |
| S-16 | Quote Required | $229.50 | EA | 5.4 lb | 60 | #16 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 3000 psi | -40 °F | SAE-16 | In-Line | Circuit Selector | ||
| S-50 | Quote Required | 17 In Stock | $175.50 | EA | 3.2 lb | 20 | 1/2" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 2000 psi | -40 °F | 1/2" NPT | In-Line | Circuit Selector | |
| S-75 | Quote Required | 13 In Stock | $229.50 | EA | 5.4 lb | 30 | 3/4" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 2000 psi | -40 °F | 3/4" NPT | In-Line | Circuit Selector | |
| S-8 | Quote Required | 12 In Stock | $175.50 | EA | 2.3 lb | 20 | #8 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 3000 psi | -40 °F | SAE-8 | In-Line | Circuit Selector | |
| SM-38 | Quote Required | TBD | 1.1 kg | 20 | 3/8" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 138 bar | -40 °F | 3/8-NPT | Manifold | Circuit Selector | |||
| SM-50 | Quote Required | TBD | 2.3 lb | 20 | 1/2" | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | NPT | Hydraulic Valve Systems Division | 138 bar | -40 °F | 1/2" NPT | Manifold | Circuit Selector | |||
| SM-8 | Quote Required | 4 In Stock | $175.50 | EA | 1.1 kg | 20 | #8 | Hydraulic Oil | Manual | +200 °F | Nitrile | Selector Valve | Knob | High Strength Cast Iron | SAE | Hydraulic Valve Systems Division | 207 bar | -40 °F | SAE-8 | Manifold | Circuit Selector |
