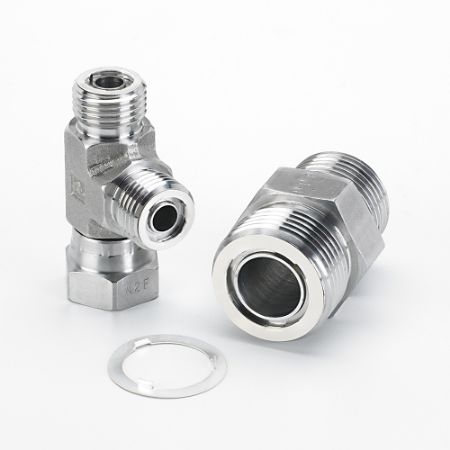

Seal-Lok Xtreme Metal Face Seal Tube Fittings and Adapters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Stainless Steel Seal-Lok Xtreme metal face seal fittings offer reliable leak-free, corrosion resistant connections for applications that have extremely low or high temperatures or chemical compatibility concerns where elastomeric sealing cannot be used. Utilizing the proven O-ring Face Seal (ORFS) fitting design, these metal face seal fittings offer zero clearance, resistance to over torque and vibration resistance. Seal-Lok Xtreme are high-temperature, but also cryogenic fittings proven to exceed industry standards and perform in the most demanding applications.
Markets:
• Alternative Fuels
• Power Gen
• Cryogenic
Features/Benefits:
• Patented metal face seal with temperature range of -328° F to 1200° F
• Includes dry film lubricated tube nuts for anti-galling
• SAE J1926 boss port ends have patented metal seal
• Highly resistant to over-torque, eliminating damage from over-tightening, creating unlimited reusability
• Flat sealing surface allows for ease of installation with zero clearance
• Superior resistance to vibration
• Unlimited reusability
• Working pressures up to 6000 PSI
• Fittings and metal seals are manufactured from SAE/AISI 316/316L stainless steel materials for corrosion resistance
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof
Testing completed:
• Thermal cycle and shock
• Helium Mass Spectrometer
• Leak and burst pressure
• Rotary Flex
• Thread Galling
• Over Torque
• Thermal Shock FEA
• Passed Bonfire Testing in accordance with ANSI/CSA NGV 2
Applications:
• Combustion turbines
• LNG storage and fueling systems
• High-temperature engine compartments
• Instrument panels
• Chemical process equipment
• Cryogenic equipment
| Action | Part No. | Availability | Partner Available | Price | Division | Connection 4 Size | Body Material | Shape | Connection Type | Connection 2 Thread Size | Connection 3 Thread Size | Connection 1 Tube Outside Diameter | Connection 2 Tube Outside Diameter | Connection 3 Tube Outside Diameter | Connection 4 Tube Outside Diameter | Connection 1 Size | Connection 2 Size | Connection 3 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 BML-SS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Nut | Metal Face Seal | na | na | na | na | na | na | Male Metal Face Seal | na | na | ||
| 10 BML-SS EL4 | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel w/ Molybdenum Di-Sulfide Dry Film Lubricant | Nut | Metal Face Seal | na | na | na | na | na | na | Male Metal Face Seal | na | na | ||
| 10 C6L9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | 90° Elbow | Metal Face Seal | na | na | 5/8 inch | na | na | na | Male Metal Face Seal | Female Metal Face Seal Swivel | na | ||
| 10 CL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | 90° Elbow | Metal Face Seal | 1/2-14 inch | na | na | na | na | na | Male Metal Face Seal | Male NPT/NPTF | na | ||
| 10 EL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | 90° Elbow | Metal Face Seal | na | na | na | na | na | na | Male Metal Face Seal | Male Metal Face Seal | na | ||
| 10 F59L9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | 7/8-14 inch | na | na | na | na | na | Male Metal Face Seal | Male SAE-Metal Seal | na | ||
| 10 F65L9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | 7/8-14 | na | 5/8 | na | na | na | Female Metal Face Seal Swivel | Male SAE-Metal Seal | na | ||
| 10 F6L-SS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | na | na | na | na | na | na | Female Metal Face Seal Swivel | Male NPT/NPTF | na | ||
| 10 FF59L9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | na | na | na | na | na | na | Male Metal Face Seal | Male SAE-Metal Seal | na | ||
| 10 FL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | 1/2-14 inch | na | 5/8 inch | na | na | na | Male Metal Face Seal | Male NPT/NPTF | na | ||
| 10 G65L-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | 7/8-14 | na | 5/8 | na | na | na | Female Metal Face Seal Swivel | Female SAE | na | ||
| 10 G6L-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | 1/2-14 | na | 5/8 | na | na | na | Female Metal Face Seal Swivel | Female NPT/NPTF | na | ||
| 10 GL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Tube to NPT | 1/2-14 inch | na | na | na | na | na | Male Metal Face Seal | Female NPT/NPTF | na | ||
| 10 HL6-SS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Tube to Tube | na | na | na | 5/8 inch | na | na | Female Metal Face Seal Swivel | Female Metal Face Seal Swivel | na | ||
| 10 HL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | na | na | 5/8 inch | na | na | na | Male Metal Face Seal | Male Metal Face Seal | na | ||
| 10 JL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Tee | Metal Face Seal | na | na | 5/8 inch | na | 5/8 inch | na | Male Metal Face Seal | Male Metal Face Seal | Male Metal Face Seal | ||
| 10 KL9-SS ETS | Quote Required | TBD | Tube Fittings Division | Male Metal Face Seal | Stainless Steel | Cross | Metal Face Seal | na | na | 5/8 inch | na | 5/8 inch | 5/8 inch | Male Metal Face Seal | Male Metal Face Seal | Male Metal Face Seal | ||
| 10 L9HB3-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | na | na | 5/8 inch | na | na | na | Male Metal Face Seal | Braze Socket | na | ||
| 10 L9HL6-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Straight | Metal Face Seal | na | na | 5/8 inch | 5/8 inch | na | na | Male Metal Face Seal | Female Metal Face Seal Swivel | na | ||
| 10 PNL9-SS ETS | Quote Required | TBD | Tube Fittings Division | na | Stainless Steel | Plug | Metal Face Seal | na | na | na | na | na | na | Male Metal Face Seal | na | na |
