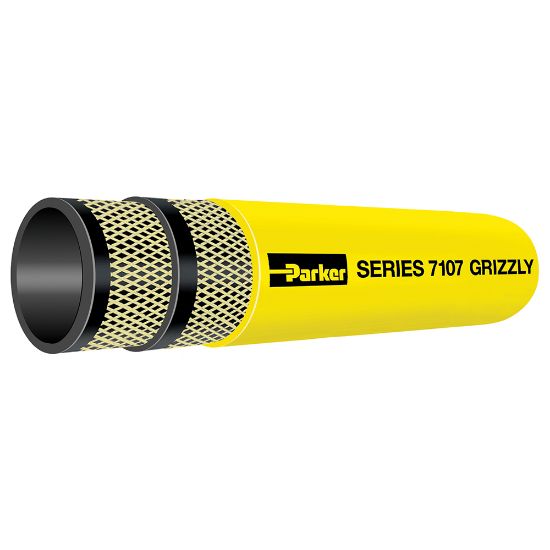

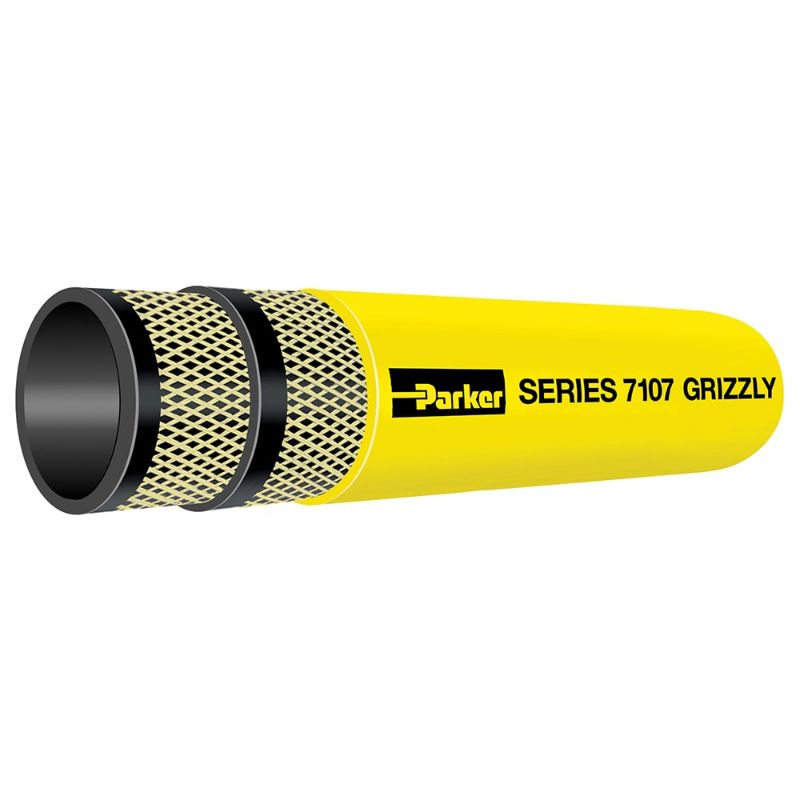

Parker 7107-100500 - GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107

Name: Parker 7107-100500 - GRIZZLY™ 500 Nonconductive Multipurpose Oil Resistant Hose, Series 7107
SKU: 7107-100500
Price: 13.51 USD
Availability: InStock

Grizzly 500 Nonconductive Oil Resistant Multipurpose Rubber Hose is a premium product designed to transfer air, mild chemicals, oil and water in applications to 212°F and 500 psi, Series 7107.

AFP Availability:

37 In Stock

North Chesterfield, VA	36
Summerville, SC	1

Partner Available:

3066 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 7107-100500

$13.51/foot

Qty:

Products specifications

Attribute name	Attribute value
UOM	FT	Media	Water
Maximum Operating Temperature	212 °F	Division	Hose Products Division
Cover Color	Yellow	Minimum Operating Temperature	-40 °C
Compatible Fitting	7661 Series	Package Type	Reel
Hose Inner Tube Material	Nitrile	Hose Reinforcement Material	4 Plies of Aramid
Application	Multipurpose	Cover Material	Nitrile/PVC
Minimum Bend Radius	6 inch	Specifications Met	MSHA
Inside Diameter	25.4 mm	Weight	0.88 kg/m
Maximum Operating Pressure	500 psi	Cover Structure	Smooth
Outside Diameter	1.5 inch	Hose I.D. (inch)	1
Standard Pack Qty (ft)	300	Maximum Working Pressure (psi)	500

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
