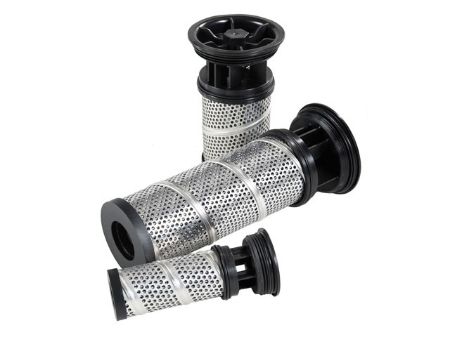

Replacement Elements - Low Pressure Filter PT Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
The Parker PT Series Low Pressure Return Line Filters provide an economical alternative for quality tank top mounted filtration. With a filter element assembly designed for direct screw-in mounting and easy removal, the PT Series offers both convenience and value.
Using genuine Parker PT Series replacement elements guarantees Parker’s quality of filtration. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single, Double, and Triple lengths and several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | For Fluid Type | Division | Filter Element Type | Length | Filter Housing Series | Filter Element | Seal Material | Seals | Collapse Pressure (bar) | Efficiency βx(C) ≥ 1000 | Pkg Qty | Operating Temperature | Element Length | Collapse Pressure (psi) | Nominal Filter Rating | Filter Media Type | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 1000 | E Dimension | Bottom Endcap Material | Collapse Pressure (psi) | Filter Media Code | Collapse Pressure (bar) | Parker Group | Glue Side Seam Adhesive | Operating Temperature | Filter Media Type | Media Composition Detail | Outer Support Cylinder Material | Nominal Filter Rating | Element Type | Element Length | Glue Endcaps Adhesive | Parker Division | Seals | Series | Top Endcap Material | Element Weight (kg) | Bypass | D Dimension | Efficiency βx(C) ≥ 200 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 936744 | Quote Required | 8 In Stock | $107.25/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | single | PT4 | 10Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 12 µ | 1 | -40F to 225F (-40C to 107C) | Single | 150 psi | 10 micron | Microglass III | 9 µ | 12 µ | 6.34 in (161 mm) | Glass reinforced nylon | 150 psi | 10Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 10 micron | Inside-Out | Single | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 2.2 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 9 µ | |
| 936745 | Quote Required | $102.89/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | single | PT4 | 20Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 20 µ | 1 | -40F to 225F (-40C to 107C) | Single | 150 psi | 20 micron | Microglass III | 16 µ | 20 µ | 6.34 in (161 mm) | Glass reinforced nylon | 150 psi | 20Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 20 micron | Inside-Out | Single | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 2.2 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 16 µ | ||
| 936747 | Quote Required | 2 Limited Stock | $128.13/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | double | PT4 | 05Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 7 µ | 1 | -40F to 225F (-40C to 107C) | Double | 150 psi | 5 micron | Microglass III | 5 µ | 7 µ | 9.92 in (252 mm) | Glass reinforced nylon | 150 psi | 05Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 5 micron | Inside-Out | Double | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 3.08 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 5 µ | |
| 936748 | Quote Required | 117 In Stock | $132.36/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | double | PT4 | 10Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 12 µ | 1 | -40F to 225F (-40C to 107C) | Double | 150 psi | 10 micron | Microglass III | 9 µ | 12 µ | 9.92 in (252 mm) | Glass reinforced nylon | 150 psi | 10Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 10 micron | Inside-Out | Double | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 3.08 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 9 µ | |
| 936752 | 60 In Stock | 74 In Stock | $71.67/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | single | PT2 | 10Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 12 µ | 1 | -40F to 225F (-40C to 107C) | Single | 150 psi | 10 micron | Microglass III | 9 µ | 12 µ | 5.72 in (145.3 mm) | Glass reinforced nylon | 150 psi | 10Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 10 micron | Inside-Out | Single | Epoxy | Hydraulic Filter | NBR: Nitrile | PT2 | Glass reinforced nylon | 0.88 | 25 PSI (1.7 bar) | 1.8 in (45.7 mm) | 9 µ | |
| 936755 | Quote Required | 10 In Stock | $96.07/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | double | PT2 | 05Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 7 µ | 1 | -40F to 225F (-40C to 107C) | Double | 150 psi | 5 micron | Microglass III | 5 µ | 7 µ | 9.43 in (239.5 mm) | Glass reinforced nylon | 150 psi | 05Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 5 micron | Inside-Out | Double | Epoxy | Hydraulic Filter | NBR: Nitrile | PT2 | Glass reinforced nylon | 1.32 | 25 PSI (1.7 bar) | 1.8 in (45.7 mm) | 5 µ | |
| 936756 | 35 In Stock | 205 In Stock | $89.44/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | double | PT2 | 10Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 12 µ | 1 | -40F to 225F (-40C to 107C) | Double | 150 psi | 10 micron | Microglass III | 9 µ | 12 µ | 9.43 in (239.5 mm) | Glass reinforced nylon | 150 psi | 10Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 10 micron | Inside-Out | Double | Epoxy | Hydraulic Filter | NBR: Nitrile | PT2 | Glass reinforced nylon | 1.32 | 25 PSI (1.7 bar) | 1.8 in (45.7 mm) | 9 µ | |
| 936757 | 18 In Stock | 35 In Stock | $78.33/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | double | PT2 | 20Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 20 µ | 1 | -40F to 225F (-40C to 107C) | Double | 150 psi | 20 micron | Microglass III | 16 µ | 20 µ | 9.43 in (239.5 mm) | Glass reinforced nylon | 150 psi | 20Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 20 micron | Inside-Out | Double | Epoxy | Hydraulic Filter | NBR: Nitrile | PT2 | Glass reinforced nylon | 1.32 | 25 PSI (1.7 bar) | 1.8 in (45.7 mm) | 16 µ | |
| 936877 | Quote Required | 26 In Stock | $161.69/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | triple | PT4 | 05Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 7 µ | 1 | -40F to 225F (-40C to 107C) | Triple | 150 psi | 5 micron | Microglass III | 5 µ | 7 µ | 14.69 in (373 mm) | Glass reinforced nylon | 150 psi | 05Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 5 micron | Inside-Out | Triple | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 4.4 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 5 µ | |
| 936878 | 16 In Stock | 108 In Stock | $134.01/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | triple | PT4 | 10Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 12 µ | 1 | -40F to 225F (-40C to 107C) | Triple | 150 psi | 10 micron | Microglass III | 9 µ | 12 µ | 14.69 in (373 mm) | Glass reinforced nylon | 150 psi | 10Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 10 micron | Inside-Out | Triple | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 4.4 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 9 µ | |
| 936879 | Quote Required | 6 In Stock | $151.55/each | EA | EA | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | Engine Mobile Hydraulic and Fuel Filtration Division | Cartridge | triple | PT4 | 20Q Microglass | Nitrile or Fluorocarbon | NBR: Nitrile | 10.3 bar | 20 µ | 1 | -40F to 225F (-40C to 107C) | Triple | 150 psi | 20 micron | Microglass III | 16 µ | 20 µ | 14.69 in (373 mm) | Glass reinforced nylon | 150 psi | 20Q | 10.3 bar | Filtration | Epoxy | -40F to 225F (-40C to 107C) | Microglass III | Multilayer fiberglass with epoxy coated mesh on both sides | Mild steel tin plated | 20 micron | Inside-Out | Triple | Epoxy | Hydraulic Filter | NBR: Nitrile | PT4 | Glass reinforced nylon | 4.4 | 25 PSI (1.7 bar) | 3.09 in (78.5 mm) | 16 µ |
