Parker 936744 - Replacement Elements - Low Pressure Filter PT Series

The Parker PT Series Low Pressure Return Line Filters combine high efficiency Quantumfiber filtration with low cost installation. Easily removed for maintenance, this filter offers both convenience and dependability.

Availability:	Quote Required
Partner Available:	10 In Stock

Brand Parker

Part No. 936744

$105.67

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Filter Element Type	Cartridge
For Fluid Type	Mineral, Petroleum and Polyalphaolefin (PAO) based fluids	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Length	single	Filter Housing Series	PT4
Filter Element	10Q Microglass	Seal Material	Nitrile or Fluorocarbon
UOM	EA	Element Length	Single
Pkg Qty	1	Efficiency βx(C) ≥ 200	9 µ
Seals	NBR: Nitrile	Efficiency βx(C) ≥ 1000	12 µ
Collapse Pressure (bar)	10.3 bar	Collapse Pressure (psi)	150 psi
Operating Temperature	-40F to 225F (-40C to 107C)	Filter Media Type	Microglass III
Nominal Filter Rating	10 micron	Efficiency βx(C) ≥ 1000	12 µ

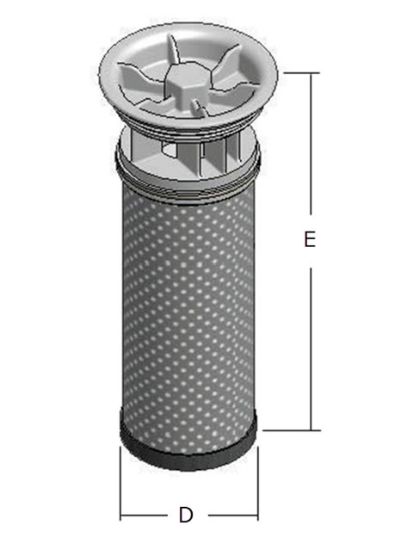

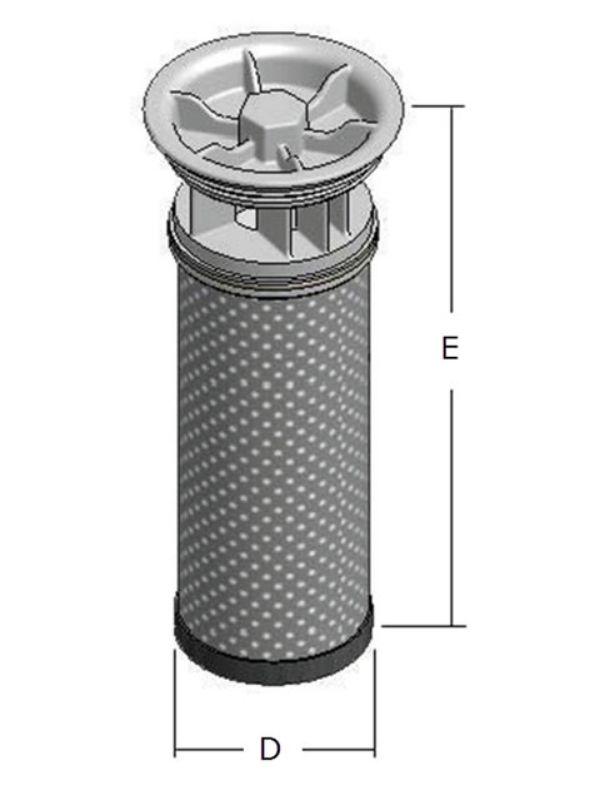

E Dimension	6.34 in (161 mm)	Bottom Endcap Material	Glass reinforced nylon
Collapse Pressure (psi)	150 psi	Filter Media Code	10Q
Collapse Pressure (bar)	10.3 bar	Parker Group	Filtration
Glue Side Seam Adhesive	Epoxy	Operating Temperature	-40F to 225F (-40C to 107C)
Filter Media Type	Microglass III	Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides
Outer Support Cylinder Material	Mild steel tin plated	Nominal Filter Rating	10 micron
Element Type	Inside-Out	Element Length	Single
Glue Endcaps Adhesive	Epoxy	Parker Division	Hydraulic Filter
Seals	NBR: Nitrile	Series	PT4
Top Endcap Material	Glass reinforced nylon	Element Weight (kg)	2.2
Bypass	25 PSI (1.7 bar)	D Dimension	3.09 in (78.5 mm)
Efficiency βx(C) ≥ 200	9 µ
