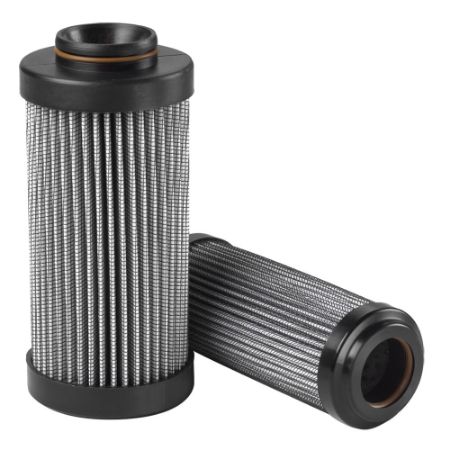

Replacement Elements - High Pressure 15P-30P-30PD Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 15P-30P-30P Series is a high pressure filter designed with the latest filtration technology.
Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
Read More...Using the Parker 15P-30P-30P Series replacement elements guarantees Parker's quality of filtration, directly impacting the fluid cleanliness levels. Using aftermarket filters with unknown media quality may save initial cost, but can increase overall costs by requiring more element change outs and potentially causing system downtime. Protect your investment by always buying genuine Parker replacement elements.
Available in Single and Double lengths and are available with optional levels of high collapse (2000 psid and 3000 psid) several micron ratings (2, 5, 10, and 20), these replacement elements ensure the quality of filtration Parker is known for. For ordering, please refer to the “How to Order” section of the literature or contact a Parker Representative.
| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Product Type | Division | Diameter | Filter Element Type | For Fluid Type | Cartridge Length | Micron Rating | Seal Material | Length | Compatible Series | Seals | Collapse Pressure (psi) | Media Type | Pkg Qty | Collapse Pressure (bar) | D Dimension | Bottom Endcap Material | B Dimension | Collapse Pressure (psi) | Seals | Media Type | Parker Group | Inner Support Cylinder Material | Media | Media Composition Detail | Parker Division | Glue Endcaps Adhesive | A Dimension | Glue Side Seam Adhesive | Series | Top Endcap Material | Collapse Pressure (bar) | E Dimension | Efficiency βx(C) ≥ 200 | Efficiency βx(C) ≥ 200 | Competitor | H Dimension | Efficiency βx(C) ≥ 1000 | Media | Efficiency βx(C) ≥ 1000 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 925566 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 114.3 mm | 238 Wiremesh | Fluorocarbon | single | 15P | ||||||||||||||||||||||||||||||||||
| 925568 | Quote Required | TBD | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 114.3 mm | 149 wiremesh | Fluorocarbon | single | 15P | FKM: Fluorocarbon | 350 psi | Stainless steel mesh | 1 | 24.1 bar | 1.772 in (45 mm) | Glass reinforced nylon | 1 in (25.4 mm) | 350 psi | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Steel tin plated | 149 Micron Nominal | Single layer stainless steel mesh | Hydraulic Filter | Epoxy | 1.772 in (45 mm) | Weld | ParFit | Glass reinforced nylon | 24.1 bar | 4.5 in (114.3 mm) | ||||||||||
| 925570 | Quote Required | 2 Limited Stock | $202.61 | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 114.3 mm | 74 Wiremesh | Fluorocarbon | single | 15P | ||||||||||||||||||||||||||||||||
| 925572 | 9 In Stock | 2 Limited Stock | $205.47 | EA | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 114.3 mm | 40 wiremesh | Fluorocarbon | single | 15P | FKM: Fluorocarbon | 350 psi | Stainless steel mesh | 1 | 24.1 bar | 1.772 in (45 mm) | Glass reinforced nylon | 1 in (25.4 mm) | 350 psi | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Steel tin plated (wrapped) | 40 Micron Nominal | Single layer stainless steel mesh | Hydraulic Filter | Epoxy | 1.772 in (45 mm) | Weld | ParFit | Glass reinforced nylon | 24.1 bar | 4.5 in (114.3 mm) | 40 (nominal) µ | 40 (nominal) µ | ||||||
| 925574 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 1.77 inch | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 114.3 mm | 25 wiremesh | Fluorocarbon | single | 15P | ||||||||||||||||||||||||||||||||||
| 925586 | Quote Required | $252.31 | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 8.2 inch | 238 Wiremesh | Fluorocarbon | double | 15P | |||||||||||||||||||||||||||||||||
| 925588 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 208.3 mm | 149 wiremesh | Fluorocarbon | double | 15P | ||||||||||||||||||||||||||||||||||
| 925590 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 1.77 inch | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 208.3 mm | 74 Wiremesh | Fluorocarbon | double | 15P | ||||||||||||||||||||||||||||||||||
| 925592 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 208.3 mm | 40 wiremesh | Fluorocarbon | double | 15P | ||||||||||||||||||||||||||||||||||
| 925594 | Quote Required | TBD | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 1.77 | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 8.2 | 25 wiremesh | Fluorocarbon | double | 15P | FKM: Fluorocarbon | 350 psi | Stainless steel mesh | 1 | 24.1 bar | 1.772 in (45 mm) | Glass reinforced nylon | 1 in (25.4 mm) | 350 psi | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Steel tin plated | 25 Micron Nominal | Multilayer stainless steel wire mesh | Hydraulic Filter | Epoxy | 1.772 in (45 mm) | Weld | ParFit | Glass reinforced nylon | 24.1 bar | 1.114 in (28.3 mm) | 25 (nominal) µ | 25 (nominal) µ | MP FILTRI | |||||||
| 925831 | Quote Required | TBD | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 62.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 9.2 inch | 40 wiremesh | Fluorocarbon | double | 30P/30PD | FKM: Fluorocarbon | 350 psi | Stainless steel mesh | 1 | 24.1 bar | 2.441 in (62 mm) | Glass reinforced nylon | 350 psi | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Steel tin plated | 40 Micron Nominal | Single layer stainless steel mesh | Hydraulic Filter | Epoxy | 2.441 in (62 mm) | Weld | ParFit | Glass reinforced nylon | 24.1 bar | 9.201 in (233.7 mm) | 40 (nominal) µ | 40 (nominal) µ | 1.429 in (36.3 mm) | ||||||||
| 925832 | Quote Required | 1 Limited Stock | $0.01 | EA | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 2.44 | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 9.2 | 25 wiremesh | Fluorocarbon | double | 30P/30PD | FKM: Fluorocarbon | 350 psi | Stainless steel mesh | 1 | 24.1 bar | 2.441 in (62 mm) | Glass reinforced nylon | 350 psi | FKM: Fluorocarbon | Stainless steel mesh | Filtration | Steel tin plated | 25 Micron Nominal | Multilayer stainless steel wire mesh | Hydraulic Filter | Epoxy | 2.441 in (62 mm) | Weld | ParFit | Glass reinforced nylon | 24.1 bar | 9.201 in (233.7 mm) | 25 (nominal) µ | 25 (nominal) µ | 1.429 in (36.3 mm) | ||||||
| 925834 | Quote Required | 50 In Stock | $137.01 | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 2.44 inch | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 233.7 mm | 20C Cellulose | Fluorocarbon | double | 30P/30PD | ||||||||||||||||||||||||||||||||
| 925835 | 15 In Stock | 9 In Stock | $129.22 | EA | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 2.44 inch | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 9.2 inch | 10C Cellulose | Fluorocarbon | double | 30P/30PD | FKM: Fluorocarbon | 350 psi | Cellulose (Paper) | 1 | 24.1 bar | 2.441 in (62 mm) | Glass reinforced nylon | 350 psi | FKM: Fluorocarbon | Cellulose (Paper) | Filtration | Steel tin plated | 10 Micron Nominal | Single layer cellulose (paper) | Hydraulic Filter | Epoxy | 2.441 in (62 mm) | Epoxy | ParFit | Glass reinforced nylon | 24.1 bar | 9.201 in (233.7 mm) | 10 (nominal) µ | 10 (nominal) µ | FILTREC | 1.429 in (36.3 mm) | |||||
| 927694Q | Quote Required | 35 In Stock | $255.85 | EA | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 1.77 inch | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 208.3 mm | 20Q microglass high collapse 3000 psid | Fluorocarbon | double | 15P | FKM: Fluorocarbon | 3000 psi | Microglass | 1 | 207 bar | 1.772 in (45 mm) | Steel zinc plated | 1 in (25.4 mm) | 3000 psi | FKM: Fluorocarbon | Microglass | Filtration | Steel tin plated (wrapped) | 20 Micron Absolute | Multilayer fiberglass with coated mesh on the inflow side and stainless steel mesh on the outlet sid | Hydraulic Filter | Epoxy | 1.772 in (45 mm) | Epoxy | ParFit | Steel zinc plated | 207 bar | 1.114 in (28.3 mm) | 16 µ | 16 µ | GFK | 20 µ | 20 Micron Absolute | 20 µ | ||
| 928213 | Quote Required | 4 In Stock | $288.39 | EA | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 45.0 mm | Cartridge | Mineral, Petroleum and Polyalphaolefin (PAO) based fluids | 208.3 mm | 74 Wiremesh high collapse | Fluorocarbon | double | 15P | ||||||||||||||||||||||||||||||||
| 929029 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 2.44 | Cartridge | Skydrol/Aggressive fluids | 4.9 | 05Q microglass high collapse 2000 psid | Ethylene Propylene | single | 30P/30PD | ||||||||||||||||||||||||||||||||||
| 929047 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 2.44 inch | Cartridge | Skydrol/Aggressive fluids | 233.7 mm | 10Q microglass high collapse 3000 psid | Ethylene Propylene | double | 30P/30PD | ||||||||||||||||||||||||||||||||||
| 929048 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 62.0 mm | Cartridge | Skydrol/Aggressive fluids | 9.2 inch | 02Q microglass high collapse 3000 psid | Ethylene Propylene | double | 30P/30PD | ||||||||||||||||||||||||||||||||||
| 930345 | Quote Required | TBD | Hydraulic Filter | Engine Mobile Hydraulic and Fuel Filtration Division | 62.0 mm | Cartridge | Skydrol/Aggressive fluids | 4.9 inch | 10C cellulose high collapse 3000 psid | Ethylene Propylene | single | 30P/30PD |
