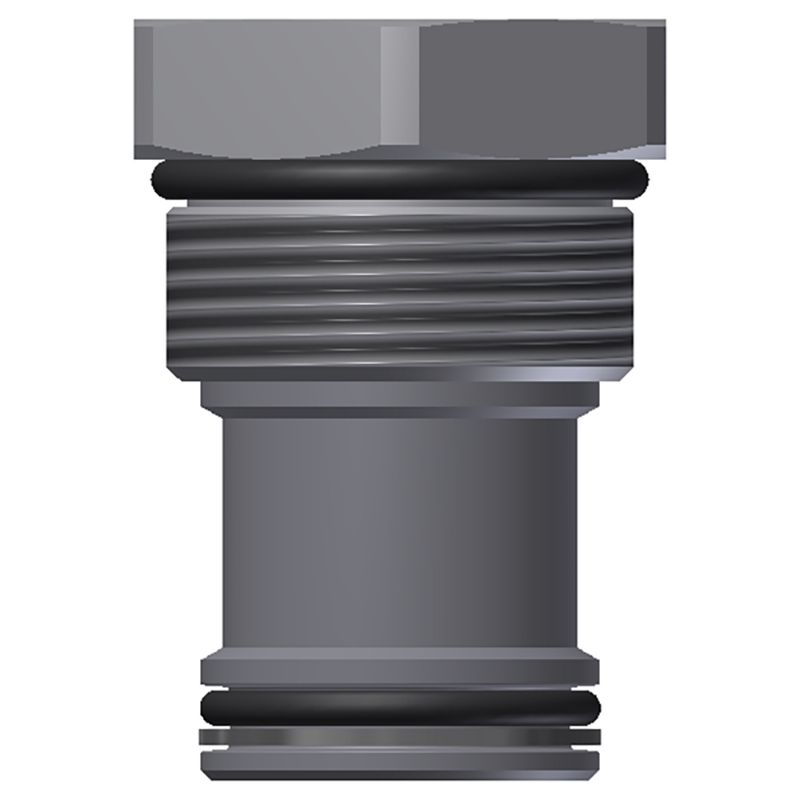

Parker P16-2 - Cavity Plugs

REGIONAL ONLY - Parker cavity plugs are a versatile option and can be used in any manifold where one valve serves several machines and/or options; either blocking flow completely or rerouting flow as needed.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. P16-2

$227.75/each

Products specifications

Attribute name	Attribute value
UOM	EA	Cavity Size	C16
Maximum Operating Temperature	+250 °F	Division	Hydraulic Cartridge Systems Division
Configuration	All ports blocked	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Number of Positions	2 way	Seal Material	Nitrile
Actuation Type	N/A	Maximum Operating Pressure	5000 psi
Valve Material	All parts steel. All operating parts hardened steel	Weight	0.34 kg
Maximum Flow Rate	N/A	Division	Hydraulic Systems Division
Operating Temperature	-34 to +121 °C	Body Material	N/A
Minimum Operating Temperature	-30 °F	Installation Torque	235 Nm
Flow Rate	N/A	Type/Configuration	All ports blocked
Number of Positions	2 way	Cavity Size	C16
Seal Material	Nitrile
