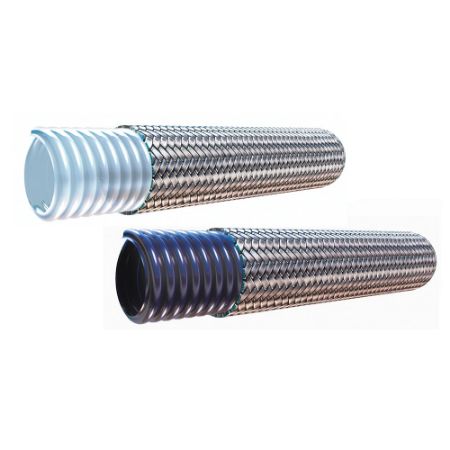

PTFE Hose - Convoluted
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 939/939B series convoluted PTFE hoses feature superior flexibility and kink resistance for successful operation in chemical transfer, high temperature hydraulics, and hose applications that require tight routings. In addition, the flexible capabilities of the hose allow for an improved bend radius than a 919/919B hose for simplified routing and installation. This hose series is offered with a natural, FDA compliant core tube (939) or with a static dissipative core tube (939B) for applications where electrostatic charges could occur during media transfer.
Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Hose Reinforcement Material | Specifications Met | Maximum Operating Pressure | Application | Minimum Operating Temperature | Hose Inner Tube Material | Compatible Fitting | Size | Cover Material | Maximum Operating Temperature | Vacuum Pressure Rating | Minimum Bend Radius | Media | Weight | Inside Diameter | Division | Outside Diameter | Design Factor | Hose Type | Size | Hose I.D. (inch) | Product Style | Hose Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 939-10 | Quote Required | TBD | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 1000 | Fluid Handling | -100 | Polytetrafluoroethylene (PTFE) | 93N Series | -10 | n/a | 450 | 28 | 3 | Chemicals | 0.24 | 5/8 | Parflex Division | 0.880 | 4:1 | Natural PTFE | -10 | 5/8 | |||||
| 939-12 | Quote Required | TBD | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 7.6 MPa | Instrumentation | -100 °F | Polytetrafluoroethylene (PTFE) | 93N Series | -12 | n/a | 450 °F | 711.2 mm-Hg | 95 mm | Fuels (Oil) | 0.47 kg/m | 19 mm | Parflex Division | 27.7 mm | 4:1 | Natural PTFE | -12 | 3/4 | |||||
| 939-16 | 27 In Stock | 168 In Stock | $64.79 | FT | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 6.9 MPa | Ultra High Purity / Semi-Conductor | -100 °F | Polytetrafluoroethylene (PTFE) | 93N Series Cannot be crimped on Minikrimp | -16 | n/a | 450 °F | 711.2 mm-Hg | 127 mm | Chemicals | 0.67 kg/m | 25 mm | Parflex Division | 33.8 mm | 4:1 | Natural PTFE | -16 | 1 | |||
| 939-20 | Quote Required | TBD | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 69 bar | Compressed Air/Gases | -73 °C | Polytetrafluoroethylene (PTFE) | 93N Series Cannot be crimped on Minikrimp | -20 | n/a | 450 °F | 20 Inch-Hg | 6-1/4 inch | Inert Gases | 1.04 kg/m | 1-1/4 inch | Parflex Division | 44.5 mm | 4:1 | Natural PTFE | -20 | 1-1/4 | |||||
| 939-24 | Quote Required | TBD | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 52 bar | Chemical Transfer | -73 °C | Polytetrafluoroethylene (PTFE) | 93N Series Cannot be crimped on Minikrimp | -24 | n/a | 232 °C | 304.8 mm-Hg | 7-1/2 inch | Lubricants (Oils) | 0.80 lb/ft | 38 mm | Parflex Division | 52.1 mm | 4:1 | Natural PTFE | -24 | 1-1/2 | |||||
| 939-32 | Quote Required | TBD | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 17 bar | Chemical Transfer | -100 °F | Polytetrafluoroethylene (PTFE) | 93N Series Cannot be crimped on Minikrimp | -32 | n/a | 450 °F | 127 mm-Hg | 10 inch | Industrial Gases | 1.01 lb/ft | 2 inch | Parflex Division | 2.560 inch | 4:1 | Natural PTFE | -32 | 2 | |||||
| 939-6 | 5 In Stock | 112 In Stock | $40.76 | FT | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 103 bar | Fleet & Automotive | -73 °C | Polytetrafluoroethylene (PTFE) | 93N Series | -6 | n/a | 450 °F | 28 Inch-Hg | 2-1/4 inch | Petroleum Hydraulic Fluids | 0.12 lb/ft | 10 mm | Parflex Division | 15 mm | 4:1 | Natural PTFE | -6 | 3/8 | |||
| 939-8 | Quote Required | 446 In Stock | $43.24 | FT | Stainless Steel | FDA 21 CFR 177.1550 (Tube) | 9.3 MPa | Chemical Transfer | -73 °C | Polytetrafluoroethylene (PTFE) | 93N Series | -8 | n/a | 232 °C | 711.2 mm-Hg | 2-7/8 inch | Water | 0.31 kg/m | 13 mm | Parflex Division | 20.1 mm | 4:1 | Natural PTFE | -8 | 1/2 | |||
| 939B-10 | 2 Limited Stock | 65 In Stock | $63.73 | FT | Stainless Steel | N/A | 1000 psi | Fluid Handling | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series | -10 | n/a | 232 °C | 711.2 mm-Hg | 3 inch | Industrial Gases | 0.24 lb/ft | 5/8 inch | Parflex Division | 0.880 inch | 4:1 | Static Dissipative PTFE | -10 | 5/8 | Static Dissipative | Static Dissipative | |
| 939B-12 | Quote Required | 80 In Stock | $50.28 | FT | Stainless Steel | N/A | 1100 psi | Fleet & Automotive | -73 °C | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series | -12 | n/a | 450 °F | 28 Inch-Hg | 95 mm | Fuels (Oil) | 0.47 kg/m | 3/4 inch | Parflex Division | 27.7 mm | 4:1 | Static Dissipative PTFE | -12 | 3/4 | Static Dissipative | Static Dissipative | |
| 939B-16 | 6 In Stock | 284 In Stock | $60.26 | FT | Stainless Steel | N/A | 6.9 MPa | Tools & Equipment | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series Cannot be crimped on Minikrimp | -16 | n/a | 450 °F | 711.2 mm-Hg | 5 inch | Food & Beverage | 0.67 kg/m | 1 inch | Parflex Division | 33.8 mm | 4:1 | Static Dissipative PTFE | -16 | 1 | Static Dissipative | Static Dissipative | |
| 939B-24 | Quote Required | TBD | Stainless Steel | N/A | 750 psi | Chemical Transfer | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series Cannot be crimped on Minikrimp | -24 | n/a | 450 °F | 12 Inch-Hg | 7-1/2 inch | Inert Gases | 1.18 kg/m | 1-1/2 inch | Parflex Division | 52.1 mm | 4:1 | Static Dissipative PTFE | -24 | 1-1/2 | Static Dissipative | Static Dissipative | |||
| 939B-32 | Quote Required | TBD | Stainless Steel | N/A | 1.7 MPa | Instrumentation | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series Cannot be crimped on Minikrimp | -32 | n/a | 450 °F | 5 Inch-Hg | 254 mm | Industrial Fluids | 1.01 lb/ft | 51 mm | Parflex Division | 65 mm | 4:1 | Static Dissipative PTFE | -32 | 2 | Static Dissipative | Static Dissipative | |||
| 939B-6 | Quote Required | TBD | Stainless Steel | N/A | 10.3 MPa | Instrumentation | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series | -6 | n/a | 232 °C | 711.2 mm-Hg | 57 mm | Industrial Fluids | 0.12 lb/ft | 10 mm | Parflex Division | 0.590 inch | 4:1 | Static Dissipative PTFE | -6 | 3/8 | Static Dissipative | Static Dissipative | |||
| 939B-8 | Quote Required | TBD | Stainless Steel | N/A | 1350 psi | Process Control | -100 °F | Polytetrafluoroethylene (PTFE) Static Dissipative | 93N Series | -8 | n/a | 450 °F | 711.2 mm-Hg | 2-7/8 inch | Industrial Fluids | 0.21 lb/ft | 1/2 inch | Parflex Division | 0.790 inch | 4:1 | Static Dissipative PTFE | -8 | 1/2 | Static Dissipative | Static Dissipative |
