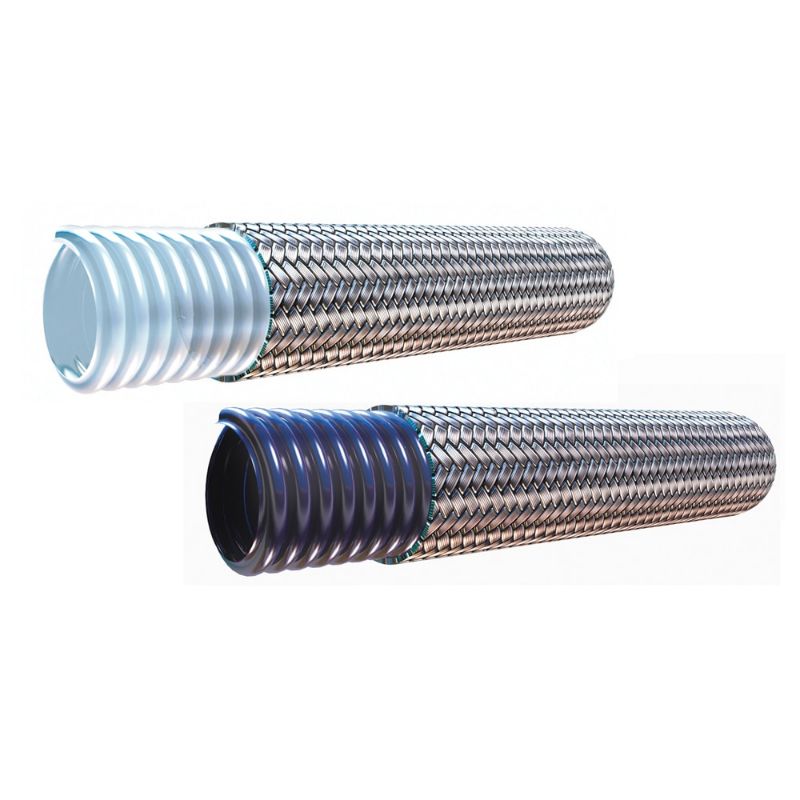

Parker 939-16 - PTFE Hose - Convoluted

Name: Parker 939-16 - PTFE Hose - Convoluted
SKU: 939-16
Price: 64.79 USD
Availability: InStock

Parker Convoluted 939/939B PTFE Hose features excellent flexibility and kink resistance for superior performance in chemical transfer, high temperature hydraulics, and hose applications requiring tight routings.

Availability:

27 In Stock

Mooresville, NC

Partner Available:

168 In Stock

Brand Parker

Part No. 939-16

$64.79

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Compatible Fitting	93N Series Cannot be crimped on Minikrimp
Vacuum Pressure Rating	711.2 mm-Hg	Inside Diameter	25 mm
Maximum Operating Pressure	6.9 MPa	Hose Reinforcement Material	Stainless Steel
Cover Material	n/a	Hose Inner Tube Material	Polytetrafluoroethylene (PTFE)
Minimum Operating Temperature	-100 °F	Division	Parflex Division
Media	Chemicals	Minimum Bend Radius	127 mm
Outside Diameter	33.8 mm	Design Factor	4:1
Weight	0.67 kg/m	Application	Ultra High Purity / Semi-Conductor
Maximum Operating Temperature	450 °F	Size	-16
Specifications Met	FDA 21 CFR 177.1550 (Tube)	Size	-16
Hose I.D. (inch)	1	Hose Type	Natural PTFE
