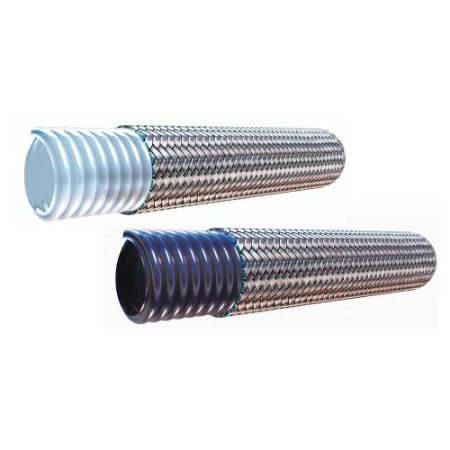

PTFE Hose - Convoluted
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The Parker 939/939B series convoluted PTFE hoses feature superior flexibility and kink resistance for successful operation in chemical transfer, high temperature hydraulics, and hose applications that require tight routings. In addition, the flexible capabilities of the hose allow for an improved bend radius than a 919/919B hose for simplified routing and installation. This hose series is offered with a natural, FDA compliant core tube (939) or with a static dissipative core tube (939B) for applications where electrostatic charges could occur during media transfer.
Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Both are reinforced with a 304 Stainless Steel braid for a durable, flexible, kink-resistant solution in numerous fluid handling, transportation and military market applications.
Markets:
• Fluid Handling
• Transportation
• Military
• Industrial
Features/Benefits:
• Excellent flexibility
• Kink resistance for simplified routing and installation
• Great chemical compatibility
• High temperature capability
Applications:
• Chemical transfer
• General hydraulics
• Hose applications requiring tight routings
• High temperature media transfer
Certifications/Compliance:
• FDA CFR 177.1550 (939 only)
Technical Specifications:
• Use hose type 939B with static-dissipative core tube when conveying non-conducting fluids such as oils, paints, fuels, steam, etc.
• Not suggested for steam-cold water cycling applications
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Compatible Fitting | Vacuum Pressure Rating | Inside Diameter | Maximum Operating Pressure | Hose Reinforcement Material | Cover Material | Hose Inner Tube Material | Minimum Operating Temperature | Division | Media | Minimum Bend Radius | Outside Diameter | Design Factor | Weight | Application | Maximum Operating Temperature | Size | Specifications Met | Size | Hose I.D. (inch) | Hose Type | Product Style | Hose Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 939-16 | 27 In Stock | 133 In Stock | $65.44/foot | FT | 93N Series Cannot be crimped on Minikrimp | 711.2 mm-Hg | 25 mm | 6.9 MPa | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) | -100 °F | Parflex Division | Chemicals | 127 mm | 33.8 mm | 4:1 | 0.67 kg/m | Ultra High Purity / Semi-Conductor | 450 °F | -16 | FDA 21 CFR 177.1550 (Tube) | -16 | 1 | Natural PTFE | |||
| 939-6 | 5 In Stock | 101 In Stock | $41.17/foot | FT | 93N Series | 28 Inch-Hg | 10 mm | 103 bar | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) | -73 °C | Parflex Division | Petroleum Hydraulic Fluids | 2-1/4 inch | 15 mm | 4:1 | 0.12 lb/ft | Fleet & Automotive | 450 °F | -6 | FDA 21 CFR 177.1550 (Tube) | -6 | 3/8 | Natural PTFE | |||
| 939-8 | Quote Required | 443 In Stock | $43.67/foot | FT | 93N Series | 711.2 mm-Hg | 13 mm | 9.3 MPa | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) | -73 °C | Parflex Division | Water | 2-7/8 inch | 20.1 mm | 4:1 | 0.31 kg/m | Chemical Transfer | 232 °C | -8 | FDA 21 CFR 177.1550 (Tube) | -8 | 1/2 | Natural PTFE | |||
| 939B-10 | 2 Limited Stock | 23 In Stock | $64.37/foot | FT | 93N Series | 711.2 mm-Hg | 5/8 inch | 1000 psi | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) Static Dissipative | -100 °F | Parflex Division | Industrial Gases | 3 inch | 0.880 inch | 4:1 | 0.24 lb/ft | Fluid Handling | 232 °C | -10 | N/A | -10 | 5/8 | Static Dissipative PTFE | Static Dissipative | Static Dissipative | |
| 939B-12 | Quote Required | 240 In Stock | $50.78/foot | FT | 93N Series | 28 Inch-Hg | 3/4 inch | 1100 psi | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) Static Dissipative | -73 °C | Parflex Division | Fuels (Oil) | 95 mm | 27.7 mm | 4:1 | 0.47 kg/m | Fleet & Automotive | 450 °F | -12 | N/A | -12 | 3/4 | Static Dissipative PTFE | Static Dissipative | Static Dissipative | |
| 939B-16 | 11 In Stock | 302 In Stock | $60.86/foot | FT | 93N Series Cannot be crimped on Minikrimp | 711.2 mm-Hg | 1 inch | 6.9 MPa | Stainless Steel | n/a | Polytetrafluoroethylene (PTFE) Static Dissipative | -100 °F | Parflex Division | Food & Beverage | 5 inch | 33.8 mm | 4:1 | 0.67 kg/m | Tools & Equipment | 450 °F | -16 | N/A | -16 | 1 | Static Dissipative PTFE | Static Dissipative | Static Dissipative |
