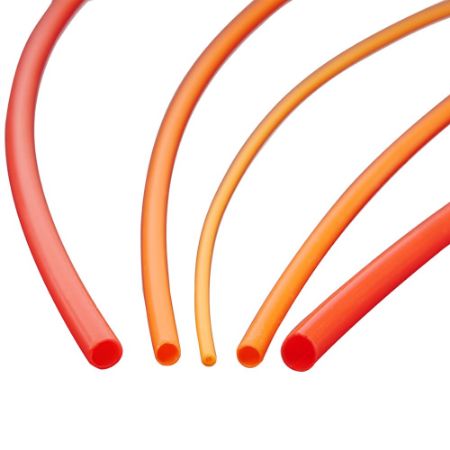

PTFE AWG Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

PTFE AWG Tubing for electrical insulation applicationsis most often used in electrical insulation applications. A PTFE tube has a non-stick surface that eliminates media buildup. In electrical applications, AWG tubing is placed over wire/cable as a protective cover that prevents electrical discharge and heat dissipation. PTFE AWG Tubing is sometimes referred to as “Spaghetti Tubing” or “American Wire Gauge Tubing”. It is supplied in natural and available as a custom run in ten different colors. Tubing is available in Standard Wall, Light Wall, Thin Wall and Heavy Wall designs and is the best chemical resistant tubing Parker offers.

Markets:
• Electrical
• Life Science
• Industrial

Features/Benefits:
• Exceptional resistance to extreme heat or cold
• Best chemical and corrosion resistance
• Lowest coefficient of friction of all plastics
• Superior dielectric strength
• Non-wetting and non-leaching
• Odorless and tasteless makes it ideal for food and beverage applications
• Excellent flex life
• Laser markable
• Resists ultra-violet rays
• Self-extinguishing plastic

Applications:
• Electrical insulation
• Circuit boards
• Wire insulation
• Protective covering
• Strain relief
• Introducer
• Stent delivery
• Cable liner
• Spacer

Certifications/Compliance:
• AMS 3653
• 21 CFR 177.1550 Compliant
• USP Class VI Compliant
• Light Wall (TFL) – ASTM D3295 Class 1
• Thin Wall (TFT) – ASTM D3295 Class 2, AMS 3655, CSA 9032-01 300V
• Standard Wall (TFS) - CSA 9032-01 600V
• Heavy Wall (TFH) – ASTM D3295, Class 4

Technical Specifications:
• Extruded from virgin PTFE (Polytetrafluoroethylene)
• Chemical Resistance: Fluoropolymers withstand most chemicals and solvents except for Elemental Sodium, Elemental Potassium, and Elemental Lithium. Elemental Sodium will remove the fluorine from the polymer molecule and the other metals have a similar affect.
• All dimensions are nominal
• Continuous lengths and colors available as a custom run - Contact customer service
• Qualified with fittings from Parker Fluid System Connectors Division Fittings (See Brass Composite and Thermoplastic Fittings and Valves Catalog CAT3501E USA)

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Maximum Operating Temperature	Tube Material	Size	Specifications Met	Tube Outside Diameter	Media	Color	Minimum Operating Temperature	Application	Length per Package	Weight	Tube Inside Diameter	Compatible Fitting	Product Type	Standard Pack Qty (ft)	Tube Inside Diameter	Order Size	Tube Wall Thickness
TFH05-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 5	AMS 3653G	6.3	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	Random Length Coils	0.0203	0.185	TrueSeal™	Obsolete AWG	random length coils	0.185	AWG05 Heavy Wall	0.032
TFH06-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 6	AMS 3653G	0.226	Chemicals	Natural (colors available upon request)	-100	Electrical Insulation	Random Length Coils	0.0172	0.166	TrueSeal™	Obsolete AWG	random length coils	0.166	AWG06 Heavy Wall	0.03
TFH07-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 7	AMS 3653G	0.208	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	Random Length Coils	0.0156	0.148	TrueSeal™	Obsolete AWG	random length coils	0.148	AWG07 Heavy Wall	0.03
TFH08-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 8	AMS 3653G	4.9	Chemicals	Natural (colors available upon request)	-100	Electrical Insulation	Random Length Coils	0.0143	0.133	TrueSeal™	Obsolete AWG	random length coils	0.133	AWG08 Heavy Wall	0.03
TFH09-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 9	AMS 3653G	0.168	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	170 m Spool	0.0105	0.118	TrueSeal™	Obsolete AWG	500 ft. spool	0.118	AWG09 Heavy Wall	0.025
TFH10-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 10	AMS 3653G	3.9	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	170 m Spool	0.0096	0.106	TrueSeal™	Obsolete AWG	500 ft. spool	0.106	AWG10 Heavy Wall	0.025
TFH11-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 11	AMS 3653G	3.4	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	170 m Spool	0.0067	0.095	TrueSeal™	Obsolete AWG	500 ft. spool	0.095	AWG11 Heavy Wall	0.02
TFH12-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 12	AMS 3653G	3	Chemicals	Natural (colors available upon request)	-100	Electrical Insulation	500	0.0061	0.085	n/a	Obsolete AWG	500 ft. spool	0.085	AWG12 Heavy Wall	0.02
TFH13-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 13	AMS 3653G	0.116	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	500	0.0056	0.076	n/a	Obsolete AWG	500 ft. spool	0.076	AWG13 Heavy Wall	0.02
TFH14-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 14	AMS 3653G	2.7	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	500	0.0074	0.066	n/a	Obsolete AWG	500 ft. spool	0.066	AWG14 Heavy Wall	0.02
TFH15-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 15	AMS 3653G	2.5	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0046	0.059	n/a	Obsolete AWG	1,000 ft. spool	0.059	AWG15 Heavy Wall	0.02
TFH16-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 16	AMS 3653G	2.4	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0043	1.3	n/a	Obsolete AWG	1,000 ft. spool	0.053	AWG16 Heavy Wall	0.02
TFH17-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 17	AMS 3653G	0.088	Chemicals	Natural (colors available upon request)	-100	Electrical Insulation	1000	0.004	1.2	n/a	Obsolete AWG	1,000 ft. spool	0.048	AWG17 Heavy Wall	0.02
TFH18-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 18	AMS 3653G	0.082	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0036	2	n/a	Obsolete AWG	1,000 ft. spool	0.042	AWG18 Heavy Wall	0.02
TFH19-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 19	AMS 3653G	2	Chemicals	Natural (colors available upon request)	-100	Electrical Insulation	1000	0.0034	1	n/a	Obsolete AWG	1,000 ft. spool	0.038	AWG19 Heavy Wall	0.02
TFH20-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 20	AMS 3653G	1.8	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0027	0.91	n/a	Obsolete AWG	1,000 ft. spool	0.034	AWG20 Heavy Wall	0.018
TFH21-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 21	AMS 3653G	1.6	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0022	0.81	n/a	Obsolete AWG	1,000 ft. spool	0.032	AWG21 Heavy Wall	0.016
TFH22-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 22	AMS 3653G	0.060	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0021	0.71	n/a	Obsolete AWG	1,000 ft. spool	0.028	AWG22 Heavy Wall	0.016
TFH23-NT	Quote Required	Quote Required	TBD	260	Polytetrafluoroethylene (PTFE)	AWG 23	AMS 3653G	1.5	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.003	0.026	n/a	Obsolete AWG	1,000 ft. spool	0.026	AWG23 Heavy Wall	0.016
TFH24-NT	Quote Required	Quote Required	TBD	500	Polytetrafluoroethylene (PTFE)	AWG 24	AMS 3653G	1.4	Chemicals	Natural (colors available upon request)	-75	Electrical Insulation	1000	0.0018	0.022	n/a	Obsolete AWG	1,000 ft. spool	0.022	AWG24 Heavy Wall	0.016
