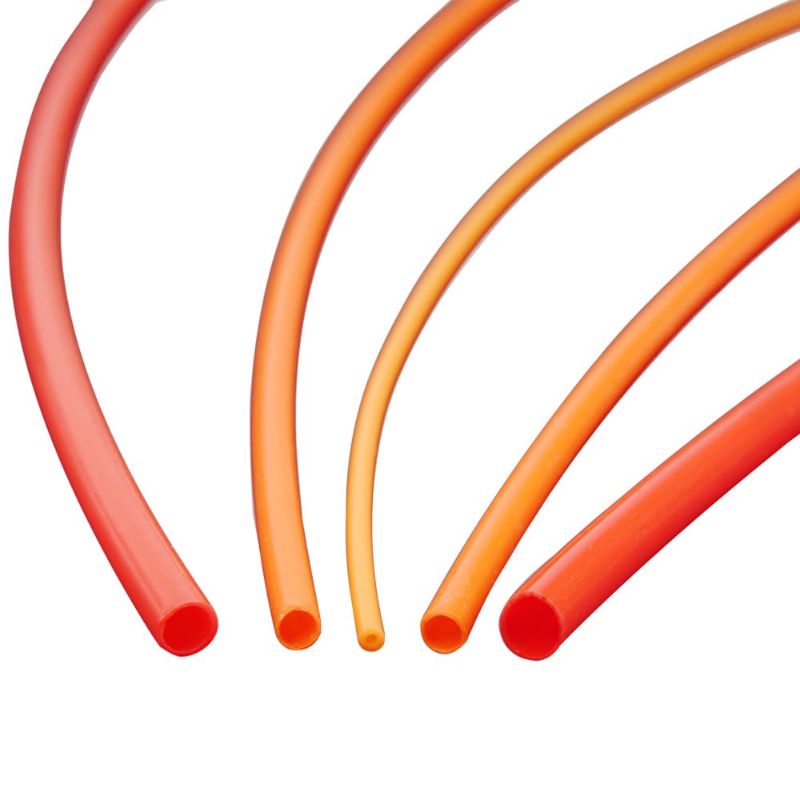

Picture of Parker TFL20-NT - PTFE AWG Tubing

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker TFL20-NT - PTFE AWG Tubing

PTFE AWG (American Wire Gauge) Tubing is designed for electrical insulation applications that require high-temperature resistance (withstands soldering), chemical and abrasion resistance.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. TFL20-NT
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTApplicationMedical
Weight0.001 kg/mMaximum Operating Temperature500 °F
Compatible Fittingn/aTube Inside Diameter0.034 inch
Tube Outside Diameter1 mmMediaChemicals
Minimum Operating Temperature-100 °FLength per Package340 m Spool
Specifications MetASTM D3295, Class 1ColorNatural (colors available upon request)
SizeAWG 20Tube MaterialPolytetrafluoroethylene (PTFE)
Standard Pack Qty (ft)1,000 ft. spoolTube Inside Diameter0.034
Order SizeAWG20 Light WallProduct TypeAWG
Tube Wall Thickness0.006
