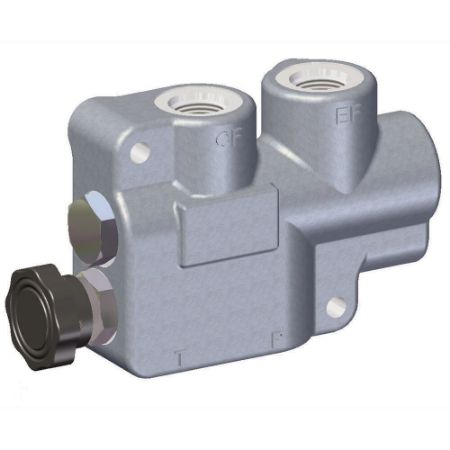

Pressure Compensated By-Pass Type Flow Control Valve - CFDA Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s CFDA Adjustable Flow Divider divides pump hydraulic oil into two separate flows. One, the adjustable pressure compensated controlled flow, and the other, excess flow which over and above the controlled flow.
Once the controlled flow demand is satisfied, the compensator spool shifts and passes any excess flow to the excess flow port. The excess flow port is not a work port and must be returned to tank.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Adjustable flow rate
• Hardened metering spool
• High-tensile, cast iron body
• Cross drilled spool provides extremely accurate metering
• Standard porting options are SAE-10, 1/2” NPT, and 3/4” NPT
• The CFD is rated at 2500 PSI and the maximum recommend input flow is 20 GPM
• The Controlled Flow rate is adjustable from minimum to 15 GPM over 6 turns of the adjustment knob
Applications:
• Suitable for various mobile applications
Read More...Once the controlled flow demand is satisfied, the compensator spool shifts and passes any excess flow to the excess flow port. The excess flow port is not a work port and must be returned to tank.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Adjustable flow rate
• Hardened metering spool
• High-tensile, cast iron body
• Cross drilled spool provides extremely accurate metering
• Standard porting options are SAE-10, 1/2” NPT, and 3/4” NPT
• The CFD is rated at 2500 PSI and the maximum recommend input flow is 20 GPM
• The Controlled Flow rate is adjustable from minimum to 15 GPM over 6 turns of the adjustment knob
Applications:
• Suitable for various mobile applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Body Material | Division | Connection Type | Minimum Operating Temperature | Maximum Flow Rate | Maximum Operating Temperature | Weight | Maximum Operating Pressure | Configuration | Connection Size | Function | Flow Rate | Actuation Type | Seal Material | Maximum Operating Pressure | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CFDA-10 | Quote Required | $585.75 | EA | High Strength Cast Iron | Hydraulic Valve Systems Division | SAE | -40 °F | n/a | 200 °F | 8 lb | 2500 psi | Inline | 10.0 mm | Flow Control | Adjustable | Manual | Nitrile | 2500 | SAE-10 (3/4-16 UNF) | ||
| CFDA-50 | Quote Required | TBD | High Strength Cast Iron | Hydraulic Valve Systems Division | NPT | -40 °F | n/a | 200 °F | 8 lb | 2500 psi | Inline | 1/2 inch | Flow Control | Adjustable | Manual | Nitrile | 2500 | 1/2"-14 NPT | |||
| CFDA-75 | Quote Required | TBD | High Strength Cast Iron | Hydraulic Valve Systems Division | NPT | -40 °F | n/a | 200 °F | 8 lb | 2500 psi | Inline | 3/4 inch | Flow Control | Adjustable | Manual | Nitrile | 2500 | 3/4"-14 NPT |
