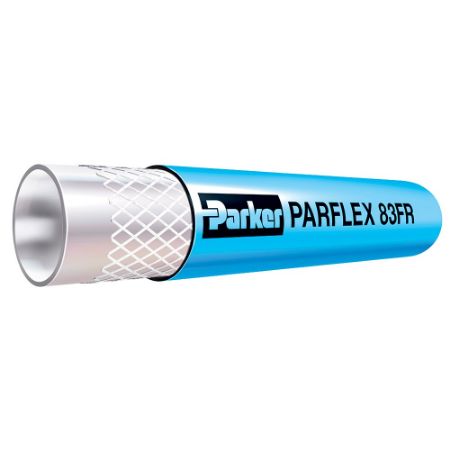

Polyurethane Hose - 83FR
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parflex DuraGard™ thermoplastic hose features weld spatter resistance, ease of flex, and a compact bend radius. It is available in twin-line and multi-line configurations, as well as multiple jacket colors to allow for quick identification. The specially formulated polyurethane tube and the flame and weld spatter resistant cover create an ideal, long-lasting solution for fluid handling applications. Review the literature listed under the Product Support tab for more information regarding the DuraGard™ Flame Resistant Polyurethane hose.
Markets:
• Fluid Handling
• Industrial Pneumatic
• Construction
Features/Benefits:
• Weld spatter resistant for added protection
• Excellent flexibility
• Excellent abrasion resistance allowing for a long-lasting, multipurpose hose
• Compact bend radius for ease of installation and usage
• Twinline hose or multi-line hose constructions available to meet specific application requirements
• Multiple jacket colors available for quick identification
Applications:
• Air hose
• Water hose
• Robotic welding
Certifications/Compliance:
• MSHA compliant cover
• Meets SAE J517 electrical standards (non-conductivity)
• UL94HB compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial Pneumatic
• Construction
Features/Benefits:
• Weld spatter resistant for added protection
• Excellent flexibility
• Excellent abrasion resistance allowing for a long-lasting, multipurpose hose
• Compact bend radius for ease of installation and usage
• Twinline hose or multi-line hose constructions available to meet specific application requirements
• Multiple jacket colors available for quick identification
Applications:
• Air hose
• Water hose
• Robotic welding
Certifications/Compliance:
• MSHA compliant cover
• Meets SAE J517 electrical standards (non-conductivity)
• UL94HB compliant cover
Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Cover Material | Specifications Met | Minimum Bend Radius | Hose Reinforcement Material | Weight | Design Factor | Hose Inner Tube Material | Application | Minimum Operating Temperature | Division | Maximum Operating Temperature | Compatible Fitting | Media | Maximum Operating Pressure | Outside Diameter | Inside Diameter | Vacuum Pressure Rating | Hose I.D. (inch) | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 83FR-12-BLK-RL | Quote Required | 2119 In Stock | $7.26/foot | FT | Polyurethane | SAE J517 (non-conductivity) | 89 mm | Fiber | 0.19 kg/m | 4:1 | Specially Formulated Polyurethane | Robotics | -29 °C | Parflex Division | 93 °C | 82 Series (temperature range reduced to 145°F/63°C with 82 Series) | Air | 2.1 MPa | 1.040 inch | 3/4 inch | n/a | 3/4 | Black | |
| 83FR-12-BLU-RL | Quote Required | 2793 In Stock | $7.26/foot | FT | Polyurethane | SAE J517 (non-conductivity) | 3-1/2 inch | Fiber | 0.28 kg/m | 4:1 | Specially Formulated Polyurethane | Robotics | -20 °F | Parflex Division | 93 °C | 56 Series (temperature range reduced to 145°F/63°C with 82 Series) | Water | 2.1 MPa | 26.4 mm | 3/4 inch | n/a | 3/4 | Blue | |
| 83FR-4-BLU-RL | Quote Required | 1095 In Stock | $2.90/foot | FT | Polyurethane | UL 94 (HB) | 1 inch | Fiber | 0.07 kg/m | 4:1 | Specially Formulated Polyurethane | Pneumatics | -20 °F | Parflex Division | 93 °C | 82 Series (temperature range reduced to 145°F/63°C with 82 Series) | Air | 2.1 MPa | 12.2 mm | 6 mm | n/a | 1/4 | Blue | |
| 83FR-6-BLK-RL | 15 In Stock | 1065 In Stock | $3.13/foot | FT | Polyurethane | UL 94 (HB) | 2 inch | Fiber | 0.11 kg/m | 4:1 | Specially Formulated Polyurethane | Pneumatics | -20 °F | Parflex Division | 200 °F | 82 Series (temperature range reduced to 145°F/63°C with 82 Series) | Water | 300 psi | 0.600 inch | 3/8 inch | n/a | 3/8 | Black | |
| 83FR-6-BLU-RL | Quote Required | 2351 In Stock | $3.13/foot | FT | Polyurethane | SAE J517 (non-conductivity) | 51 mm | Fiber | 0.11 kg/m | 4:1 | Specially Formulated Polyurethane | Robotics | -29 °C | Parflex Division | 200 °F | 82 Series (temperature range reduced to 145°F/63°C with 82 Series) | Water | 300 psi | 0.600 inch | 10 mm | n/a | 3/8 | Blue | |
| 83FR-8-BLK-RL | Quote Required | 314 In Stock | $4.11/foot | FT | Polyurethane | MSHA | 2-1/2 inch | Fiber | 0.12 lb/ft | 4:1 | Specially Formulated Polyurethane | Robotics | -29 °C | Parflex Division | 200 °F | 82 Series (temperature range reduced to 145°F/63°C with 82 Series) | Air | 300 psi | 0.760 inch | 13 mm | n/a | 1/2 | Black | |
| 83FR-8-BLU-RL | Quote Required | 8180 In Stock | $4.11/foot | FT | Polyurethane | SAE J517 (non-conductivity) | 2-1/2 inch | Fiber | 0.17 kg/m | 4:1 | Specially Formulated Polyurethane | Robotics | -29 °C | Parflex Division | 200 °F | 56 Series (temperature range reduced to 145°F/63°C with 82 Series) | Air | 21 bar | 0.760 inch | 1/2 inch | n/a | 1/2 | Blue |
