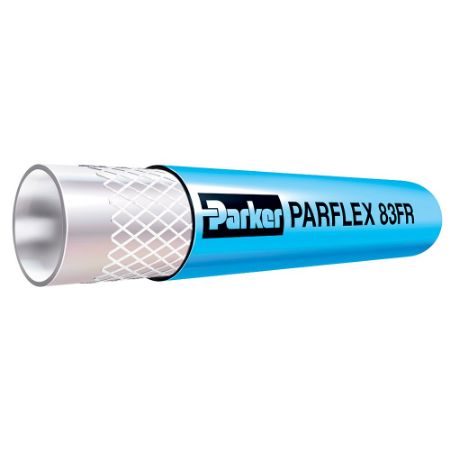

Polyurethane Hose - 83FR

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parflex DuraGard™ thermoplastic hose features weld spatter resistance, ease of flex, and a compact bend radius. It is available in twin-line and multi-line configurations, as well as multiple jacket colors to allow for quick identification. The specially formulated polyurethane tube and the flame and weld spatter resistant cover create an ideal, long-lasting solution for fluid handling applications. Review the literature listed under the Product Support tab for more information regarding the DuraGard™ Flame Resistant Polyurethane hose.

Markets:
• Fluid Handling
• Industrial Pneumatic
• Construction

Features/Benefits:
• Weld spatter resistant for added protection
• Excellent flexibility
• Excellent abrasion resistance allowing for a long-lasting, multipurpose hose
• Compact bend radius for ease of installation and usage
• Twinline hose or multi-line hose constructions available to meet specific application requirements
• Multiple jacket colors available for quick identification

Applications:
• Air hose
• Water hose
• Robotic welding

Certifications/Compliance:
• MSHA compliant cover
• Meets SAE J517 electrical standards (non-conductivity)
• UL94HB compliant cover

Technical Specifications:
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Minimum Bend Radius	Maximum Operating Temperature	Cover Material	Weight	Division	Hose Reinforcement Material	Specifications Met	Minimum Operating Temperature	Inside Diameter	Compatible Fitting	Application	Hose Inner Tube Material	Vacuum Pressure Rating	Maximum Operating Pressure	Design Factor	Media	Outside Diameter	Hose I.D. (inch)	Color
83FR-12-BLK-RL	Quote Required	2235 In Stock	$7.26/foot	FT	89 mm	93 °C	Polyurethane	0.19 kg/m	Parflex Division	Fiber	SAE J517 (non-conductivity)	-29 °C	3/4 inch	82 Series (temperature range reduced to 145°F/63°C with 82 Series)	Robotics	Specially Formulated Polyurethane	n/a	2.1 MPa	4:1	Air	1.040 inch	3/4	Black
83FR-12-BLU-RL	Quote Required	5702 In Stock	$7.26/foot	FT	3-1/2 inch	93 °C	Polyurethane	0.28 kg/m	Parflex Division	Fiber	SAE J517 (non-conductivity)	-20 °F	3/4 inch	56 Series (temperature range reduced to 145°F/63°C with 82 Series)	Robotics	Specially Formulated Polyurethane	n/a	2.1 MPa	4:1	Water	26.4 mm	3/4	Blue
83FR-4-BLU-RL	Quote Required	1458 In Stock	$2.90/foot	FT	1 inch	93 °C	Polyurethane	0.07 kg/m	Parflex Division	Fiber	UL 94 (HB)	-20 °F	6 mm	82 Series (temperature range reduced to 145°F/63°C with 82 Series)	Pneumatics	Specially Formulated Polyurethane	n/a	2.1 MPa	4:1	Air	12.2 mm	1/4	Blue
83FR-6-BLK-RL	15 In Stock	1190 In Stock	$3.13/foot	FT	2 inch	200 °F	Polyurethane	0.11 kg/m	Parflex Division	Fiber	UL 94 (HB)	-20 °F	3/8 inch	82 Series (temperature range reduced to 145°F/63°C with 82 Series)	Pneumatics	Specially Formulated Polyurethane	n/a	300 psi	4:1	Water	0.600 inch	3/8	Black
83FR-6-BLU-RL	Quote Required	2406 In Stock	$3.13/foot	FT	51 mm	200 °F	Polyurethane	0.11 kg/m	Parflex Division	Fiber	SAE J517 (non-conductivity)	-29 °C	10 mm	82 Series (temperature range reduced to 145°F/63°C with 82 Series)	Robotics	Specially Formulated Polyurethane	n/a	300 psi	4:1	Water	0.600 inch	3/8	Blue
83FR-8-BLK-RL	Quote Required	411 In Stock	$4.11/foot	FT	2-1/2 inch	200 °F	Polyurethane	0.12 lb/ft	Parflex Division	Fiber	MSHA	-29 °C	13 mm	82 Series (temperature range reduced to 145°F/63°C with 82 Series)	Robotics	Specially Formulated Polyurethane	n/a	300 psi	4:1	Air	0.760 inch	1/2	Black
83FR-8-BLU-RL	Quote Required	11276 In Stock	$4.11/foot	FT	2-1/2 inch	200 °F	Polyurethane	0.17 kg/m	Parflex Division	Fiber	SAE J517 (non-conductivity)	-29 °C	1/2 inch	56 Series (temperature range reduced to 145°F/63°C with 82 Series)	Robotics	Specially Formulated Polyurethane	n/a	21 bar	4:1	Air	0.760 inch	1/2	Blue
