Plug Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

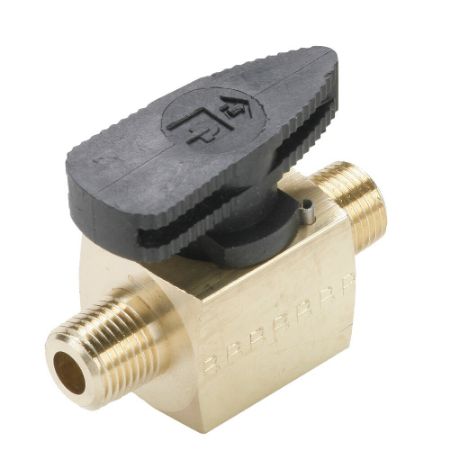

Parker's Plug Valves have an extruded brass body and a one piece Acetal copolymer handle and stem. To assure sealability and reliable performance, the valve must be installed so that the flow media travels in the direction of the arrow on the valve handle. Plug valves are a quarter turn, on or off. A stainless steel stopping pin in the body provides a positive stop action for full shutoff. Quadruple Nitrile o-rings on the stem provides positive sealing.
All plug valves are 100% leak tested and are certified to be leak free to one SCCM.
Parker's plug valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Pipe x Male Pipe
• Male Pipe x Male Pipe
Markets:
• Industrial
• Pneumatic
• Factory/Process Automation
Features/Benefits:
• One Piece Stem/Handle
• Extruded Brass Body
• 100% Leak Tested
• Nitrile Seals
• Quarter Turn On – Off
Applications:
• Air Lines
• Cooling Lines
• Machine Tool
• Fluid Transfer
Read More...All plug valves are 100% leak tested and are certified to be leak free to one SCCM.
Parker's plug valves are available in the following styles.
• Female Pipe x Female Pipe
• Female Pipe x Male Pipe
• Male Pipe x Male Pipe
Markets:
• Industrial
• Pneumatic
• Factory/Process Automation
Features/Benefits:
• One Piece Stem/Handle
• Extruded Brass Body
• 100% Leak Tested
• Nitrile Seals
• Quarter Turn On – Off
Applications:
• Air Lines
• Cooling Lines
• Machine Tool
• Fluid Transfer
| Action | Part No. | Availability | Partner Available | Price | Minimum Operating Temperature | Maximum Operating Pressure | Seal Material | Stem Material | Dimensional Weight | Maximum Operating Temperature | Division | O-Ring Material | Body Material | Connection 2 Style | Connection 1 Thread Size (inch) | Shape | Connection 2 Thread Size (inch) | Style | Connection 1 Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PV607-2 | Quote Required | 81 In Stock | $42.21/each | -40 °F | 250 psi | Nitrile | Acetal | 0.27594424460431655 lb | 175 °F | Fluid System Connectors Division | Nitrile | Brass | Male Pipe | 1/8 | In Line | 1/8 | Pipe to Pipe | Male Pipe | |
| PV607-4 | 30 In Stock | 35 In Stock | $43.44/each | -40 °C | 250 psi | Nitrile | Acetal | 0.27594424460431655 lb | 175 °F | Fluid System Connectors Division | Nitrile | Brass | Male Pipe | 1/4 | In Line | 1/4 | Pipe to Pipe | Male Pipe | |
| PV608-2 | Quote Required | 101 In Stock | $42.21/each | -40 | 250 | Nitrile | Acetal | 0.27594424460431655 | 175 | Fluid System Connectors Division | Nitrile | Brass | Male Pipe | 1/8 | In Line | 1/8 | Female Pipe to Male Pipe | Female Pipe | |
| PV608-4 | 15 In Stock | 137 In Stock | $43.44/each | -40 °C | 250 psi | Nitrile | Acetal | 0.27594424460431655 lb | 79 °C | Fluid System Connectors Division | Nitrile | Brass | Male Pipe | 1/4 | In Line | 1/4 | Female Pipe to Male Pipe | Female Pipe | |
| PV609-2 | Quote Required | 29 In Stock | $42.21/each | -40 °C | 17 bar | Nitrile | Acetal | 0.27594424460431655 lb | 79 °C | Fluid System Connectors Division | Nitrile | Brass | Female Pipe | 1/8 | In Line | 1/8 | Female Pipe to Female Pipe | Female Pipe | |
| PV609-4 | 10 In Stock | 34 In Stock | $43.44/each | -40 °F | 17 bar | Nitrile | Acetal | 0.27594424460431655 lb | 175 °F | Fluid System Connectors Division | Nitrile | Brass | Female Pipe | 1/4 | In Line | 1/4 | Female Pipe to Female Pipe | Female Pipe |
